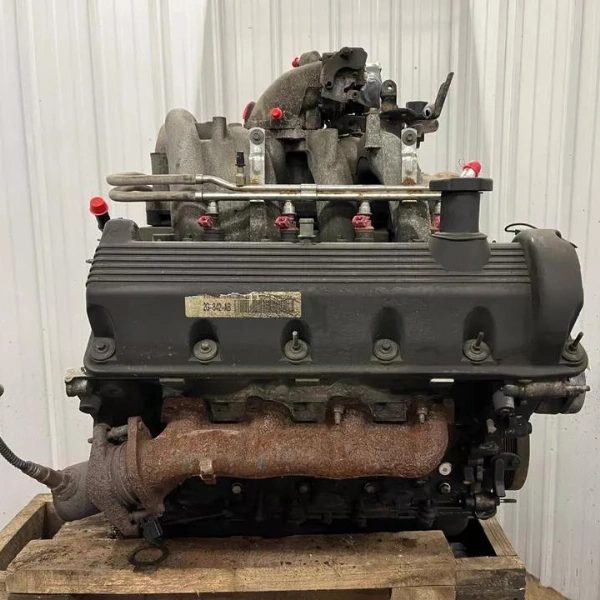

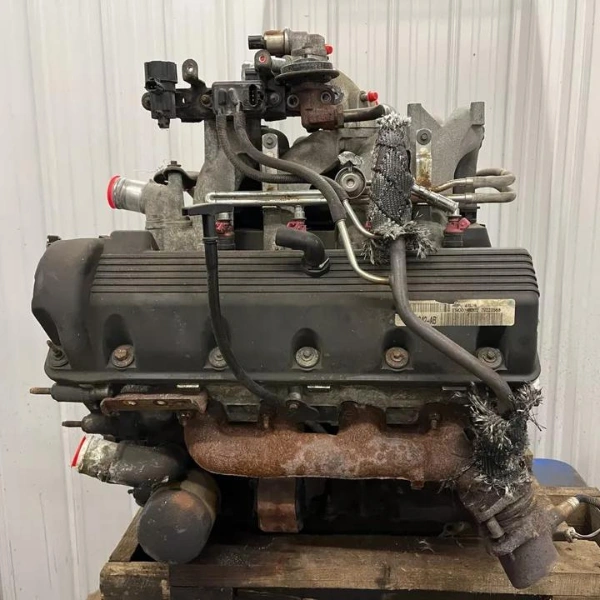

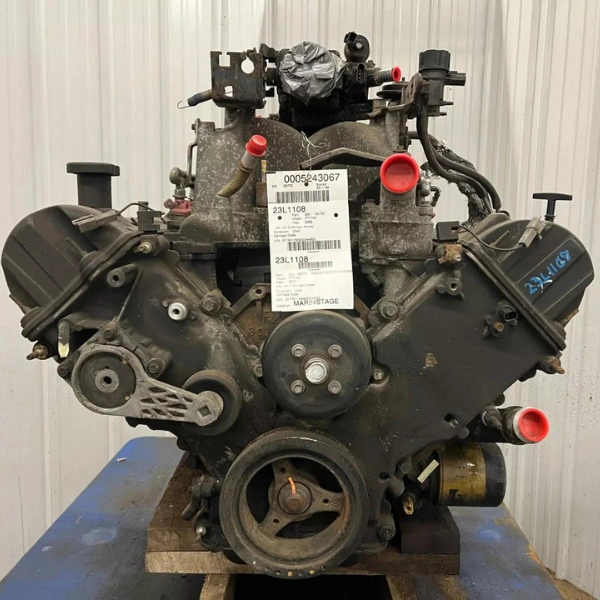

The 4.6L Triton is the most widely produced engine in Ford's modular V8 family, made from 1991 to 2014 across passenger cars, full-size trucks, performance Mustangs, and luxury sedans. It produced as little as 215 horsepower in early F-150 base trim and as much as 390 horsepower in the Mach 1 4V DOHC, all from the same 281 cubic inch displacement. The aluminum (or iron, in truck applications) block uses 90 millimeter bore and 90 millimeter stroke, near-square geometry that gives the 4.6 Triton its smooth power delivery and high-RPM willingness.
The 4.6 Triton came in three distinct cylinder head designs that affect both power output and parts compatibility. 2V uses two valves per cylinder with a single overhead cam, found on base F-150, base Mustang GT (1996 to 2004), Crown Victoria, Town Car, and Grand Marquis. 3V adds a third valve and Variable Cam Timing, found on later F-150 (2005 to 2010), Mustang GT (2005 to 2010), and Explorer V8. 4V DOHC uses four valves per cylinder with dual overhead cams, found on Mustang Cobra, Mach 1, Bullitt, Lincoln Mark VIII, and Mercury Marauder. Always specify the variant when ordering.
The 4.6 Triton is one of the most-supported V8 engines in the aftermarket, and clean used cores are widely available because Ford built millions of them. For F-150 owners, Crown Vic restorers, Mustang GT builders, and Town Car maintainers, a tested used unit costs less than half of a remanufactured long block while delivering excellent service life when properly inspected.
| INCLUDED | Long block: block, crankshaft, rods, pistons, camshafts, heads, valve train, oil pan, valve covers, timing cover, timing chain. |
|---|---|
| NOT INCLUDED | Intake manifold (sometimes included on truck variants), throttle body, ignition coils, plugs, ECU, harness, alternator, starter, A/C, power steering, flexplate, motor mounts. |
| Fluids | Drained before shipping. Refill with Motorcraft 5W-20 (most variants) or 5W-30 (truck variants and pre-2003) full synthetic motor oil. |
| Core Note | No core charge. You are not required to return your old engine. |
The 4.6L Triton was a direct fit in the following vehicles:
| Ford F-150 | 1997 to 2010 (2V early, 3V from 2005) |
|---|---|
| Ford Mustang GT | 1996 to 2010 (2V through 2004, 3V from 2005) |
| Ford Mustang Cobra | 1996 to 2004 (4V DOHC) |
| Ford Mustang Mach 1 | 2003 to 2004 (4V DOHC) |
| Ford Mustang Bullitt | 2001 (4V DOHC equivalent) |
| Ford Crown Victoria | 1992 to 2011 (2V) |
| Ford Expedition | 1997 to 2004 (2V) |
| Ford Explorer Sport Trac | 2003 to 2010 (2V and 3V) |
| Ford Explorer | 2002 to 2010 (4V DOHC and 2V) |
| Lincoln Town Car | 1992 to 2011 (2V) |
| Lincoln Continental | 1995 to 2002 (4V DOHC InTech) |
| Lincoln Mark VIII | 1993 to 1998 (4V DOHC InTech) |
| Lincoln Aviator | 2003 to 2005 (4V DOHC) |
| Mercury Grand Marquis | 1992 to 2011 (2V) |
| Mercury Cougar | 1994 to 1997 (2V) |
| Mercury Marauder | 2003 to 2004 (4V DOHC) |
| Ford E-Series Vans | 1997 to 2014 (2V) |
Transmission pairings: Ford 4R70W and 4R75W 4-speed automatic (most cars and trucks), 5R55E 5-speed automatic (Explorer), Tremec T-45 and TR-3650 5-speed manual (Mustang), Tremec T-56 6-speed manual (Cobra and Mach 1). Tell us your transmission for confirmation.
Not sure if this fits? Call (240) 301-0095 with your year, make, model, trim, and transmission. Critical for the 4.6 Triton: tell us whether your vehicle uses 2V, 3V, or 4V DOHC heads. The three variants share a block but have completely different heads, intakes, accessory drives, and ECU calibrations.
Every used 4.6L Triton we ship goes through this process:
Mileage varies by donor unit. Where verified mileage is available, it is shared. Where mileage cannot be confirmed, we disclose openly before payment. Full inspection notes available on request.
| Engine Family | Ford Modular V8 |
|---|---|
| Configuration | V8 OHC | 16 to 32 valves by variant |
| Displacement | 4.6L (281 cu in) |
| Bore X Stroke | 90.2 mm x 90.0 mm |
| Compression Ratio | 9.0:1 to 10.0:1 by variant |
| Aspiration | Naturally Aspirated |
| Variants | 2V SOHC | 3V SOHC with VCT | 4V DOHC |
| Fuel System | Sequential Multi-Point Injection |
| Fuel Type | Regular Unleaded (4V DOHC prefers premium) |
| Block Material | Aluminum (most) or cast iron (truck) |
| Head Material | Aluminum |
| Firing Order | 1-3-7-2-6-5-4-8 |
| Production Years | 1991 to 2014 |
| Horsepower | 215 to 390 hp by variant |
| Torque | 270 to 320 lb-ft by variant |
| Compatible Transmissions | 4R70W | 4R75W | 5R55E | T-45 | TR-3650 | T-56 |
| Condition | Used OEM | compression tested and inspected |
Picked up a 4.6L Triton from Vaz Auto Solutions for my F-150. Solid engine, good power for everyday use. Watch out for spark plug issues, but overall reliable. Decent fuel economy for a V8.
Original 2V started knocking at 165,000 miles. Vaz had a clean 2V with verified compression and confirmed spark plug threads. Year and casting matched my Mustang. Install was textbook, no surprises. Mustang runs and pulls like new and my mechanic was impressed with the visible condition of the donor unit.
Every used 4.6L Triton V8 Engine For Sale sold by Vaz Auto Solutions is covered by a 15 day replacement warranty from the date of delivery.
To make a claim, contact us within 15 days of delivery at (240) 301-0095 or info@vazautosolutions.com.
