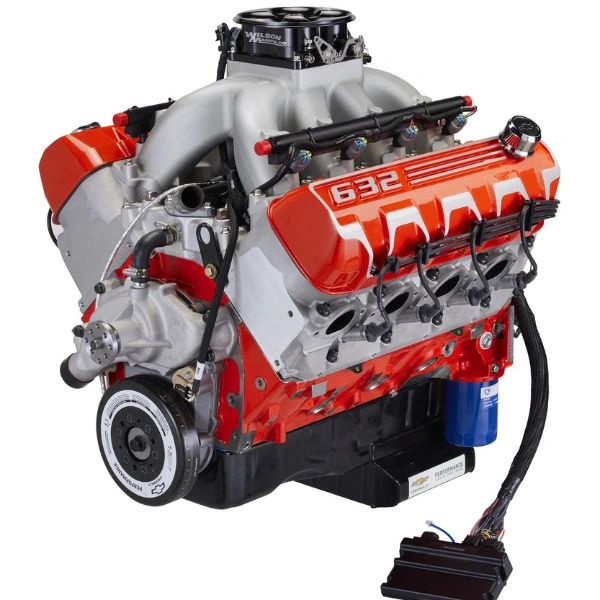

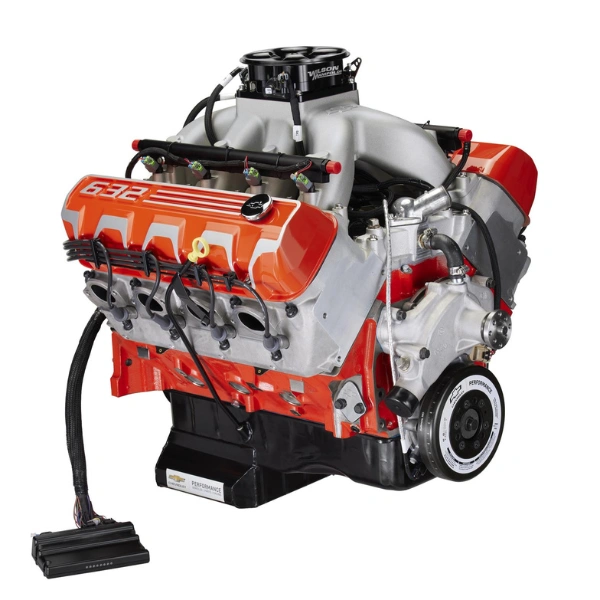

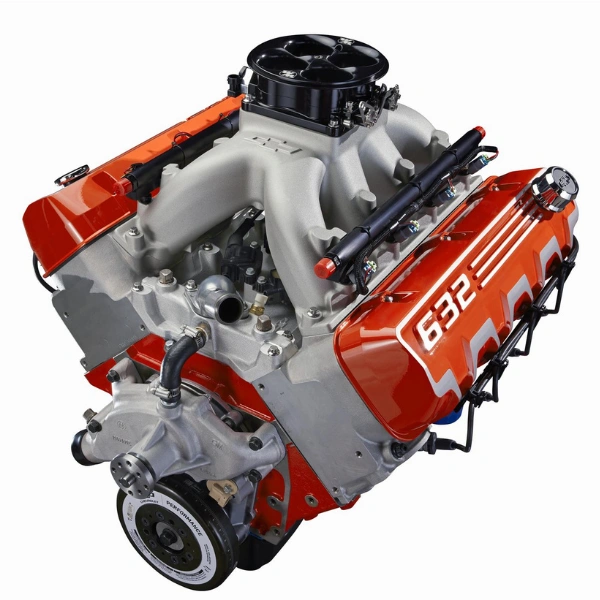

The Chevy 632 is the largest displacement big block V8 ever offered in a Chevrolet crate engine package. It produces 1,004 hp and 876 lb-ft of torque from 632 cubic inches of displacement, all naturally aspirated, all on 91 to 93 octane pump gas. No turbo. No supercharger. No nitrous. Just bore, stroke, head flow, and proper tuning. For drag racers, pro touring builders, and hot rodders chasing the highest numbers possible without forced induction, the 632 is the answer.
The bottom end is built around a forged steel crankshaft, heavy-duty forged connecting rods, and forged aluminum pistons in a 4-bolt main cast iron block. The 4.60 inch bore by 4.75 inch stroke combination is what unlocks the 632 cubic inch displacement and the torque curve that makes the engine drivable in a heavy car. High-flow aluminum cylinder heads and a high-rise single-plane intake manifold deliver the airflow needed to make over 1,000 horsepower without exotic fuel.
The 632 is overkill for daily driving and that is the point. This is a build core, a finished show car powerplant, or a no-prep race engine. Drop it in a 1969 Camaro, a 1965 Chevelle, a Pro Mod hot rod, or a heavy-duty truck pulling a sled, and there is more than enough power for any application that does not need forced induction.
| INCLUDED | Long block: block, forged crankshaft, forged rods, forged pistons, camshaft, heads, valve train, oil pan, intake manifold, valve covers, harmonic balancer. EFI fuel injection rails and throttle body where ordered EFI configuration. |
|---|---|
| NOT INCLUDED | ECU and engine harness, exhaust headers, starter, alternator, A/C compressor, power steering pump, flexplate or flywheel, motor mounts. |
| Configuration Options | EFI standard. Carbureted top end available on request, call to discuss. Partially dressed and fully dressed packages available. |
| Core Note | No core charge. You are not required to return your old engine. |
The 632 is a build engine, not a direct factory replacement, but it bolts to standard Chevy big block engine mount locations, BBC bell-housing, and BBC accessory drives. Common applications include:
| Drag Race Cars | 1967 to 1969 Camaro, 1968 to 1970 Chevelle SS, 1970 to 1973 Trans Am, Plymouth Barracuda, Dodge Challenger |
|---|---|
| Muscle Car Restomods | 1955 to 1957 Bel Air, 1962 to 1965 Impala SS, 1964 to 1972 Chevelle, 1967 to 1969 Firebird, 1971 to 1974 Charger |
| Street Rods and Hot Rods | 1932 Ford, 1937 Chevy, Tri-Five Chevys, T-Bucket builds, custom roadsters |
| Trucks | Chevy C10 (1967 to 1987), GMC C1500, Ford F-100 swap, Dodge D100 swap |
| Off-Road and Sand | Custom buggies, sand rails, mud trucks |
| Pro Touring Builds | Factory Five Cobra, Ultima GTR, custom kit cars rated for big block power |
Transmission compatibility: TH400 (most common, strongest pairing for high horsepower), 4L80E, 4L85E, Powerglide (drag), Tremec TKO 600, Tremec Magnum 6-speed, Muncie M22 manual.
Not sure if this fits? Call (240) 301-0095 with your chassis, target horsepower goal, transmission, fuel system, and intended use. Our team will confirm bell-housing pattern, motor mount fit, and accessory drive setup before your order ships.
Every 632 we ship goes through this process:
Full inspection documentation is available on request before order confirmation.
| Engine Family | Chevrolet Big Block V8 | 632 Stroker |
|---|---|
| Configuration | 16 valves | V8 OHV |
| Displacement | 632 cu in (10.35L) |
| Bore X Stroke | 4.60 in x 4.75 in |
| Compression Ratio | 10.0:1 |
| Aspiration | Naturally Aspirated |
| Fuel System | Electronic Fuel Injection (EFI) |
| Fuel Type | Gasoline | 91 to 93 octane required |
| Valve Train | Hydraulic Roller Camshaft |
| Block | Cast iron | 4-bolt mains |
| Heads | Aluminum | rectangular port high flow |
| Crankshaft | Forged steel |
| Rods | Heavy duty forged |
| Pistons | Forged aluminum |
| Cooling System | Liquid cooled |
| Electrical System | 12 volt | high-output ignition |
| Horsepower | 1 | 004 hp |
| Torque | 876 lb-ft |
| Condition | Used | fully inspected and tested |
Was nervous spending this much on a used engine but the team at Vaz walked me through every spec, sent the dyno sheet, and confirmed BBC mount fit before I paid. Engine arrived perfectly. Tri-Five with a 632 is exactly the build I wanted. Worth every dollar.
I have built three big blocks before and this 632 is the most impressive Chevy crate motor I have ever bought. Vaz ran it on the stand, sent me oil pressure and compression numbers, and shipped it crated like a piece of glass. Made over 1,000 hp on my dyno on the first pull with my own tune. Chevelle runs 9.40s in the quarter.
Every used Chevy 632 Crate Engine For Sale sold by Vaz Auto Solutions is covered by a 15 day replacement warranty from the date of delivery.
To make a claim, contact us within 15 days of delivery at (240) 301-0095 or info@vazautosolutions.com.
