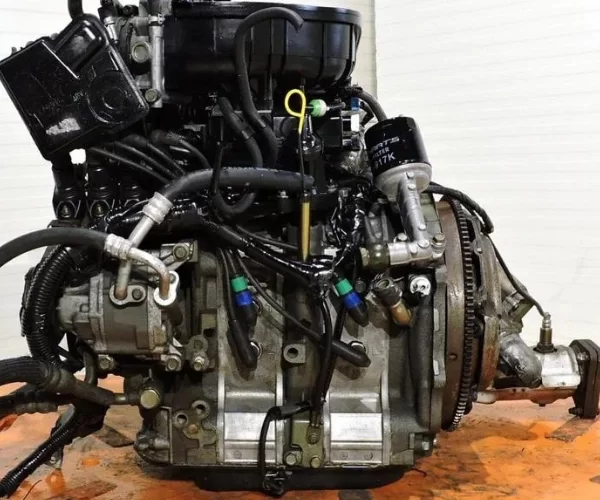

About the Mazda RX-8 Engine

Get your Mazda RX-8 the engine it deserves. Replace the old worn motor with a quality used unit and get the beast roaring back on tracks and roads.

The Mazda RX-8 uses the 1.3L Renesis rotary engine , marketed simply as "Renesis" by Mazda. The engine gets its name from its rotary design, contrary to the conventional piston engines that dominate the automotive industry. A distinctive exhaust note, Variable Intake Geometry, Side Port Exhaust, and dual spark plugs per rotor all testify to the engine's advanced technology. Do not miss out on this Mazda RX-8 engine for sale here at Vaz Auto Solutions.

Engine Overview: Mazda RX-8 Engine (13B-MSP Renesis)

The 13B-MSP Renesis rotary engine has a reputation among enthusiasts for its unique driving experience. The engine features a high-RPM capability of up to 9,000 RPM alongside a displacement of 1.3L. The engine comes in two variants:

The higher-output variant has a horsepower of up to 238 HP which is also the Mazda RX-8 engine for sale here. The 13B-MSP Renesis is a testimony to Mazda's expertise in rotary engines. Engineered for the 2003 Mazda RX-8 launch, this RX-8 engine for sale was specially designed to fit the Mazda RX-8 model produced from 2003 to 2012.

Understanding the Renesis: What Makes It Different

The Renesis represents the final, most refined development of Mazda's iconic 13B rotary family. To understand its place in rotary history:

The Renesis is the only naturally aspirated 13B since the late 1980s and is the only rotary engine ever to win the International Engine of the Year award.

Key Engineering: The Multi-Side Port (MSP) Innovation

The "MSP" in 13B-MSP stands for Multi-Side Port , the defining engineering innovation of the Renesis. Earlier 13B rotaries used peripheral exhaust ports (cut through the rotor housing), but the Renesis moved the exhaust ports to the side housings , the same location as the intake ports. This Multi-Side Port arrangement provides several benefits:

• Reduced Port Overlap: Less unburned fuel/air escaping into the exhaust during the overlap phase, dramatically improving emissions
• Better Low-End Response: Cleaner combustion at low RPM where peripheral-port designs suffered
• Modern Emissions Compliance: The Renesis can meet 21st-century emissions standards that earlier rotaries could not
• Improved Cooling: Exhaust heat distributed across larger side housing area rather than concentrated in rotor housing
• Improved Apex Seal Longevity: Reduced port-to-port heat differential helps apex seal life

The MSP design was critical to keeping the rotary engine viable in modern emissions environments.

Features of the Mazda RX-8 Renesis Engine

• Rotary Engine Design: The engine features a Wankel rotary design with a triangular rotor rotating in an epitrochoidal chamber , this makes the engine compact and lightweight (the Renesis weighs just 235 lbs, far less than any V6 or V8 of comparable output)
• Side Port Exhaust: The RX-8 engine for sale replaces peripheral exhaust ports with side exhaust ports, reducing port overlap and increasing efficiency
• High RPM Capability: The 13B-MSP features the capability of revving up to 9,000 RPM, providing a high-revving and responsive driving experience unmatched by piston engines
• Improved Apex Seals: The Renesis uses an improved 3-piece apex seal design with reduced wear characteristics compared to earlier rotaries
• Dual Spark Plugs per Rotor (4 plugs total): Two spark plugs per rotor (leading and trailing) for complete combustion across the long combustion chamber
• Variable Intake Geometry: Variable intake runner geometry optimizes airflow across the entire RPM range
• Variable Fresh Air Duct (VFAD): Dynamic intake tuning for both low-end and high-end performance
• Aluminum Construction: Aluminum rotor housings and side housings with iron rotors , compact and lightweight
• Naturally Aspirated: No turbocharger or supercharger , pure linear power delivery
• Premium Fuel Required: 91 octane minimum, 93 octane recommended for optimal performance

The RX-8 Production History

The Mazda RX-8 was produced 2003 to 2012:

• 2003-2005: Initial production with peak output 238 HP (high-output, US spec)
• 2006 (Power Down): US emissions regulations reduced rated output to 232 HP for high-output and 212 HP for standard
• 2009 (R3 / Series II): Mid-cycle refresh with updated styling and equipment
• 2012: Final production year, RX-8 discontinued

The RX-8 was unique among modern sports cars for its suicide doors (rear-hinged rear half-doors) that allowed easier access to the rear seats while maintaining a coupe-like profile. The combination of the Renesis engine and unique body design made the RX-8 a distinctive sports car.

Common Renesis Service Items (Honest Disclosure)

Honest disclosure of Renesis-specific service characteristics:

• Oil Consumption is Normal: Rotary engines burn a small amount of engine oil by design , the oil lubricates the apex seals as they trace the rotor housings. Expect 1 quart per 1,500-3,000 miles , this is NOT an engine flaw, this is how the engine works. Premix oil with fuel is recommended by many rotary specialists.
• Apex Seal Service: Apex seals are the rotary equivalent of piston rings. Renesis apex seals typically last 80,000-120,000 miles with proper maintenance. Replacement requires engine disassembly.
• Carbon Buildup: Carbon can accumulate on apex seal grooves at high mileage. Italian tune-ups (extended high-RPM driving) help prevent buildup.
• Battery Sensitivity: The Renesis is sensitive to battery condition due to high cranking demands. A weak battery is a common cause of starting issues.
• Premium Fuel Critical: 87 octane regular gas will cause knock and damage the engine. ALWAYS use 91 octane minimum.
• Spark Plug Service: Plugs typically last 30,000-40,000 miles , less than piston engines due to rotary combustion characteristics. Use proper Mazda specification plugs only.
• Warm-Up Required: Rotaries don't reach operating temperature as quickly as piston engines. Drive gently for the first few minutes.
• No Lugging: Don't drive at low RPM. The rotary likes to rev. Drive it like Mazda intended.

These characteristics are inherent to rotary engineering, not flaws of the specific engine.

Why Choose a Used Renesis Engine?

• Significant cost savings vs reman engine ($1,999 used vs $3,500-$7,500 reman plus core)
• Direct OEM fit for Mazda RX-8 (SE3P) 2003-2012
• High-output variant available with the iconic 238 HP rating
• Rotary heritage , the only naturally aspirated rotary in modern production
• Compact and lightweight , easily accommodated in restoration projects
• Foundation for rotary enthusiasm , rotary specialists can rebuild Renesis engines with upgraded internals for higher performance

Here at Vaz Auto Solutions, you'll find this Mazda RX-8 engine for sale at the most reasonable price possible, with high-output vs standard variant identification, compression testing on both rotors, and proper rotary-specific inspection.

Vehicle Compatibility

Direct Fit:

Variant Identification Within RX-8 Application:

Condition and Inspection

• Variant identified (high-output 232/238 HP manual vs standard 197/212 HP automatic)
• Year identified (2003-2005 pre-Power Down vs 2006+ vs 2009+ R3)
• Donor vehicle confirmed (Mazda RX-8 SE3P)
• Compression tested both rotors (3 chambers per rotor, 6 chambers total) at idle AND operating speed
• Compression standards: Front rotor 7.5+ kg/cm², Rear rotor 7.5+ kg/cm² minimum; differential between chambers within 1.5 kg/cm²
• Apex seal condition assessed (3-piece Renesis seals)
• Side seal condition documented
• Corner seal condition checked
• All 4 spark plugs tested (leading and trailing per rotor)
• Spark plug condition documented (rotary plugs wear differently than piston engine plugs)
• Fuel injection system tested (sequential multi-port)
• Variable intake geometry function verified
• Variable Fresh Air Duct (VFAD) function checked
• Oil pump operation verified
• Oil metering pump function tested (critical for apex seal lubrication)
• Coolant pump operation verified
• Miles from donor vehicle documented where available
• High-output vs standard variant correctly identified
• Compression testing on BOTH rotors (rotary-specific procedure)
• Apex seal, side seal, and corner seal condition documented
• All 4 spark plugs (leading and trailing per rotor) tested
• Oil metering pump function verified (critical for rotary longevity)
• Rotary engine specialist support team
• Free freight pallet delivery to all 50 states
• 15 day replacement warranty on internal defects
• Mazda RX-8 cross-reference and rotary service expertise
