About the NV4500 Transmission
The NV4500 transmission stands out as a robust and versatile manual gearbox, highly sought after in the automotive aftermarket. Originally developed by New Venture Gear, this five-speed manual transmission has become a favorite among truck enthusiasts, diesel owners, and off-road adventurers alike. Known for its durability, high torque capacity (460 lb-ft rated), and granny-low first gear, the NV4500 has been a staple in heavy-duty Dodge, GM, and Ford trucks since the 1990s. Whether you're rebuilding a classic Cummins-powered Ram, upgrading your 7.3 Power Stroke F-Super Duty, or restoring a Chevy 2500HD work truck, a used NV4500 transmission can offer the perfect blend of strength, reliability, and value.

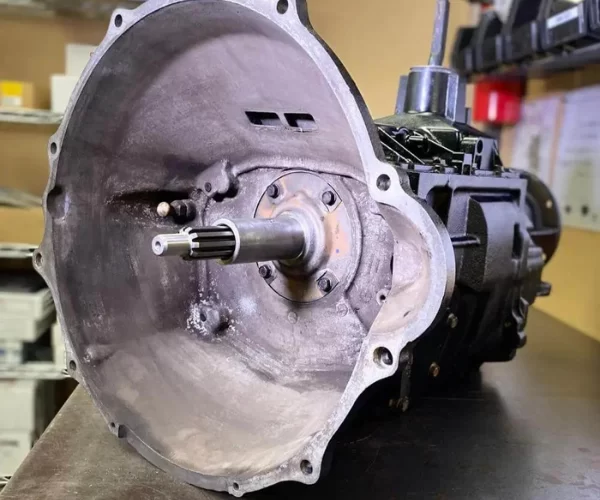

The NV4500 Transmission
The NV4500 transmission, produced by New Venture Gear from 1992 to 2007, stands as a robust and versatile manual gearbox revered for its durability and smooth operation. Initially designed for heavy-duty applications, it gained popularity in 3/4-ton and 1-ton pickup truck markets for its reliability under demanding diesel torque loads. Its design features include a cast iron case with aluminum top cover, synchronized gears (including the granny low 1st gear, which is fully synchronized unlike older granny-low designs), all-helical gear engagement, and a reputation for handling high torque outputs from Cummins 5.9, 7.3L Power Stroke, and Magnum V10 engines.
Why Choose the NV4500 Transmission?
The New Venture Gear 4500, commonly known as the NV4500, is a top-loading five-speed transmission renowned for its strength and versatility. Whether you're upgrading your Cummins-powered Dodge Ram, 7.3 Power Stroke Ford F-Super Duty, or Chevy 2500HD, our NV4500 transmission for sale is the perfect choice for those seeking power and reliability.
NV4500 Vehicle and Engine Applications
The NV4500 was used in three primary heavy-duty truck applications:
Dodge / Ram Trucks (the most common NV4500 application):
- Dodge Ram 2500 (1994 to 2002) with Cummins 5.9 12-valve / 24-valve diesel or Magnum V8 / V10 gas
- Dodge Ram 3500 (1994 to 2005) with Cummins 5.9 diesel or Magnum V10 gas
- Dodge Ram 1500 (some 1994 to 2002 configurations with V8)
Ford F-Super Duty Trucks (NV4500-HD variant):
- Ford F-250 Super Duty (1996 to 1998 transitional production window) with 7.3L Power Stroke diesel or V10 gas
- Ford F-350 Super Duty (1996 to 1998) with 7.3L Power Stroke or V10
- Ford F-450 Super Duty (1996 to 1998) with 7.3L Power Stroke
Chevrolet / GMC HD Trucks:
- Chevrolet C/K 2500 HD (1992 to 2007) with 6.5L diesel, 7.4L 454 big block, or 6.0L Vortec
- Chevrolet C/K 3500 HD (1992 to 2007) with 6.5L diesel, 7.4L 454, or 8.1L Vortec
- GMC Sierra 2500 HD / 3500 HD (1992 to 2007) with same engine options
- Chevrolet Suburban / GMC Yukon HD (limited HD configurations with 6.5L diesel)
Engines Commonly Paired with NV4500:
- Cummins 5.9L 12-valve diesel (1989 to 1998 Dodge Ram)
- Cummins 5.9L 24-valve diesel (1998 to 2002 Dodge Ram)
- Ford 7.3L Power Stroke diesel (1996 to 1998 NV4500-HD variant)
- Ford 7.3L V10 Triton (limited 1996 to 1998)
- Dodge 5.9L Magnum V8 (gas)
- Dodge 8.0L Magnum V10 (gas)
- GM 6.5L Detroit diesel
- GM 7.4L 454 big block (gas)
- GM 8.1L Vortec V8 (gas, later 1500HD / 2500HD)
Vehicles That Did NOT Get the NV4500 from the Factory
Despite some confusion in aftermarket listings, the NV4500 was NOT a factory option in the following vehicles. These vehicles used different transmissions:
- Jeep Wrangler TJ (1997 to 2006): Used NV3550 or AX15, NOT NV4500
- Jeep Wrangler YJ (1987 to 1995): Used AX15 or AX5, NOT NV4500
- Jeep Wrangler JK (2007 to 2018): Used NSG-370 6-speed, NOT NV4500
- Jeep Cherokee XJ (1984 to 2001): Used AX15 or AX5, NOT NV4500
- Toyota Tacoma / Tundra / 4Runner: Used Aisin R150 / R151 / W56 or A340 / A343 automatic, NOT NV4500
- Nissan Frontier / Titan: Used Nissan FS5 manual or RE4R / RE5R automatic, NOT NV4500
- Land Rover Defender / Discovery: Used LT77 / LT85 / R380, NOT NV4500
If you're searching for a manual transmission for these vehicles, please call (240) 301-0095 and we'll direct you to the correct transmission for your application.
Key Features of the NV4500
- Cast iron case with aluminum top cover: Combines strength and weight savings, ensuring durability without unnecessary weight.
- Dual PTO ports: Provides versatility for additional equipment like hydraulic pumps, winches, or other power take-off accessories.
- All-helical gears for smooth operation: Ensures seamless shifting and reduced noise, improving driver comfort and gearbox longevity.
- Fully synchronized forward gears (including 1st): Unlike older granny-low transmissions where 1st gear was non-synchronized and required double-clutching, the NV4500's 1st gear is fully synchronized for smooth engagement.
- Exceptional power handling capacity: Designed to manage 460 lb-ft of input torque (factory rated), with many examples handling significantly more in upgraded form.
- Heavy-Duty Design: Built to handle high torque and rugged conditions, suitable for both diesel pickups and HD vocational use.
- Granny low 1st gear (5.61:1): Deep low gear ideal for heavy launches under load (loaded trailers, steep grades, off-road crawling).
- Overdrive 5th gear (0.73:1): Improves highway fuel economy and reduces engine RPM at cruising speeds.
Why Buy a Used NV4500 Transmission?
Opting for a used NV4500 transmission for sale offers several advantages:
- Cost-effective alternative to reman ($1,999 vs $2,800 to $4,500 reman price)
- Environmentally friendly reuse of high-quality components
- Proven reliability and performance in millions of applications
- Availability of parts and aftermarket support including 5th gear nut upgrade kits, synchronizer rebuilds, and bearing rebuild kits
Our NV4500 for Sale: Quality Assurance
When you purchase an NV4500 transmission from us, you can expect:
- Thorough inspection and testing
- Donor truck identification
- Engine pairing documentation
- Bellhousing pattern confirmation (Dodge / Ford / GM specific)
- 5th gear nut condition assessment (known wear point on NV4500)
- All forward gears and reverse tested
- Output yoke spline verification
Why Choose Our NV4500 Transmission for Sale?
- Extensive inventory of NV4500 transmissions
- Knowledgeable staff to assist with the donor / target matching
- Competitive pricing on all NV4500 for sale
- Correct fluid requirements documented (GL-4 75W-85 gear oil, NOT ATF)
Vehicle Compatibility
| Vehicle | Compatibility |
|---|
| Dodge / Ram Trucks | Ram 2500 (1994-2002), Ram 3500 (1994-2005), Ram 1500 (some 1994-2002 V8) |
| Ford F-Super Duty | F-250 / F-350 / F-450 Super Duty (1996-1998 NV4500-HD) with 7.3 Power Stroke or V10 |
| Chevy / GMC HD Trucks | C/K 2500 HD / 3500 HD (1992-2007), Suburban / Yukon HD (limited) |
| Engines | Cummins 5.9 (12V and 24V), 7.3 Power Stroke, Magnum V8/V10, 6.5 GM Diesel, 7.4 454, 8.1 Vortec |
Condition and Inspection
- Donor truck and engine confirmed
- 1st gear ratio verified (5.61:1 granny low)
- All 5 forward gears and reverse tested through engagement and operation
- 5th gear nut condition assessed (known NV4500 wear point , the famous "5th gear nut backing off" failure mode is checked)
- 5th gear synchronizer condition documented
- Output yoke and 29-spline configuration verified
- Bellhousing pattern documented (Dodge / Ford / GM specific)
- Top cover gasket condition inspected
- Input shaft bearing condition assessed
- Output shaft bearing condition assessed
- Case integrity visual inspection (no cracks)
- Fluid condition verified (correct GL-4 oil, not contaminated ATF)
- Donor truck and engine pairing documented
- Bellhousing pattern confirmed (Dodge / Ford / GM)
- 5th gear nut condition specifically assessed (known wear point)
- All gears tested before shipping
- Correct fluid requirements documented
- Output yoke spline verified
- Free freight pallet delivery to all 50 states
- 15 day replacement warranty on internal defects
- HD truck manual transmission experienced support team
