Description

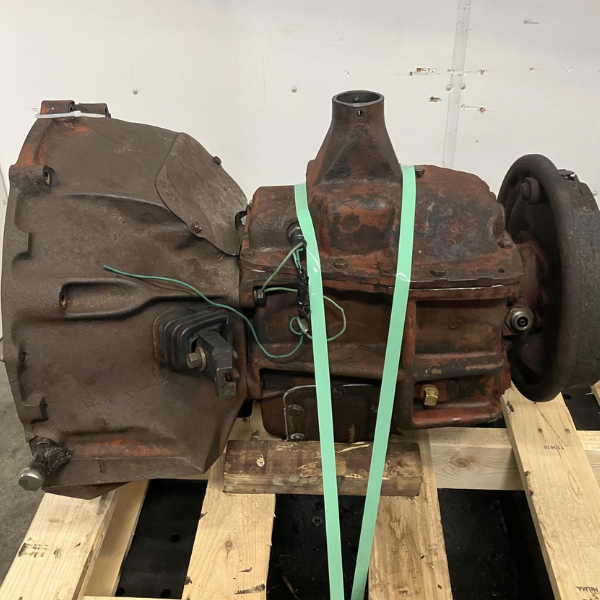

About the GM SM420 4-Speed Manual Transmission

The SM420 is a heavy-duty manual transmission introduced by General Motors in 1947 that remained in production for two decades before being replaced by the SM465 in 1968. This SM420 Transmission for sale at our store was a favorite among classic truck enthusiasts, off-road builders, and heavy-duty truck owners during its production era, and remains highly sought after today for classic Chevrolet and GMC truck restorations. The SM420 was also used in various military applications, providing reliable heavy-duty service in demanding conditions across two decades of GM truck production.

Features of the SM420 Transmission

• Durability and Strength: The SM420’s cast iron case construction and robust internal components make it suitable for off-road use and other heavy applications. The transmission is built to bear heavy torque loads and severe operational conditions, making it nearly indestructible when properly maintained.
• Manual Control: Like all manual transmissions, the SM420 features direct selection and shifting of gears using a top-mounted shift stick. The driver controls all gear changes directly via the clutch and shifter, providing the engaged mechanical feel that classic truck enthusiasts prefer.
• 4-Speed Configuration: The SM420 is a 4-speed manual transmission with 4 forward gears and 1 reverse gear. The first gear is a deep, non-synchronized granny low (7.05:1) primarily used for stopped-vehicle starts under heavy load; the remaining forward gears (2nd, 3rd, 4th) are used for on-the-move shifting. Note: the SM420 is NOT a 5-speed transmission despite some product descriptions incorrectly listing it as such.
• Non-Synchronized First Gear (Ultra-Deep Granny Low): Because the 7.05:1 first gear is non-synchronized, the vehicle must be at a complete stop (or very nearly so) to engage 1st gear smoothly. This is by design, since the granny low is intended for stopped-vehicle starts under heavy load, off-road crawling from a stop, and severe-grade launches with heavy loads. On-the-move shifting requires double-clutching to match RPMs between gears.
• Simplicity: The SM420 has a simple, mechanically straightforward design without any modern electronic complexity. It provides a direct mechanical feel between the engine and driveline that classic truck enthusiasts strongly prefer.
• Off-Road Capability: The SM420’s deep 7.05:1 first gear combined with a typical 4.10 or 4.56 rear axle ratio gives crawl ratios in the 28-32:1 range, ideal for off-road exercises, rock crawling, and heavy towing on steep grades.

Compatibility

Vehicles:

• Chevrolet Advance Design Trucks (1947-1955)
• Chevrolet Task Force Trucks (1955-1959)
• GMC New Design Trucks (1947-1955)
• GMC Blue Chip Trucks (1955-1959)
• Various military and commercial GM-based vehicles using these chassis

Compatible Engines:

Note: The original product listing incorrectly labels the 235 and 261 engines as V8s. These are actually Inline-6 (straight-six) engines in Chevrolet’s famous Stovebolt family. Correct compatibility:

• Chevrolet 216 cubic inch Inline-6 (Stovebolt 6, pre-1953)
• Chevrolet 235 cubic inch Inline-6 (3.9L) (Blue Flame Six, 1953+)
• Chevrolet 261 cubic inch Inline-6 (4.3L) (Jobmaster Six, 1954+)
• GMC 248, 270, 302 Inline-6 engines (in GMC truck applications)
• Chevrolet 265 cubic inch V8 (1955+ Task Force, the original small block)
• Chevrolet 283 cubic inch V8 (later Task Force applications)

Advantages

The SM420 transmission is renowned for its advantages in various applications:

• Off-Road Capability: The exceptionally low first gear ratio (7.05:1, even deeper than the SM465‘s 6.55:1) makes it ideal for rock crawling and rugged terrain. Combined with a typical 4.10-4.56 axle ratio and a low-range transfer case, the SM420 delivers crawl ratios approaching 60:1 with appropriate gearing.
• Durability: Built to withstand heavy-duty use in trucks, buses, military vehicles, and heavy equipment of the 1947-1967 era. The cast iron case is virtually indestructible.
• Classic Truck Authentic Restoration: For a period-correct restoration of a 1947-1967 Chevrolet or GMC truck, the SM420 is the original equipment 4-speed manual transmission.

Here at Vaz Auto Solutions, you will find the best quality used SM420 transmission for sale at a very reasonable price. Get your SM420 transmission today and experience the difference in performance and durability for your classic Chevrolet or GMC truck restoration!

SM420 vs SM465: Which Should You Choose?

The SM420 was replaced by the SM465 starting in 1968. The two transmissions share similar architecture but differ in important ways:

For an authentic restoration of a 1947-1967 Chevy/GMC truck, choose the SM420. For a 1968-1991 C/K Series truck, choose the SM465. For an LS swap classic truck build, either can be used with the appropriate adapter, but the SM465 offers smoother on-the-move shifting via its synchronized 2nd-4th gears.

Vehicle Compatibility

Condition and Inspection

• Donor truck era confirmed (Advance Design 1947-1955, Task Force 1955-1959, GMC New Design / Blue Chip)
• All 4 forward gears and reverse tested
• Granny low (1st gear 7.05:1) engagement verified specifically
• Bell housing pattern confirmed (235/261 Inline-6 or early SBC V8)
• Input shaft spline count verified
• Output shaft pattern and tailhousing configuration documented
• 4WD vs 2WD configuration confirmed
• Case visual inspection for cracks or weld repairs
• Donor truck era confirmed (1947-1967)
• All 4 forward gears and reverse tested
• Granny low engagement verified
• Bell housing pattern confirmed (Inline-6 or V8)
• 4WD vs 2WD output configuration confirmed
• Free freight pallet delivery to all 50 states
• 15 day replacement warranty on internal defects
• Classic Chevy and GMC truck experienced support team
