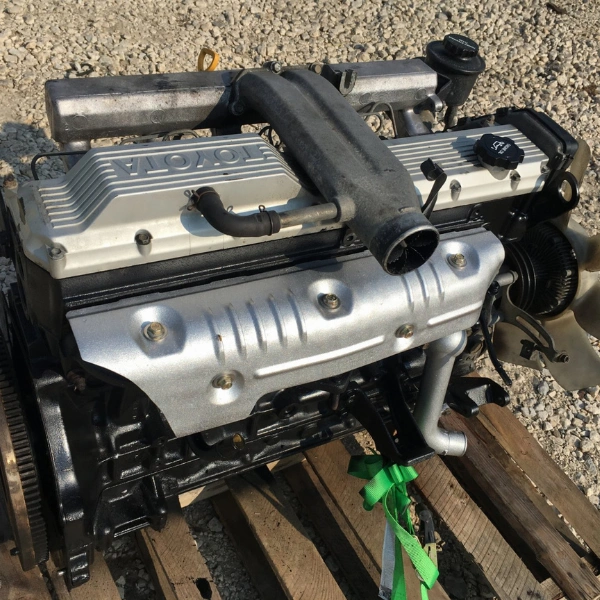

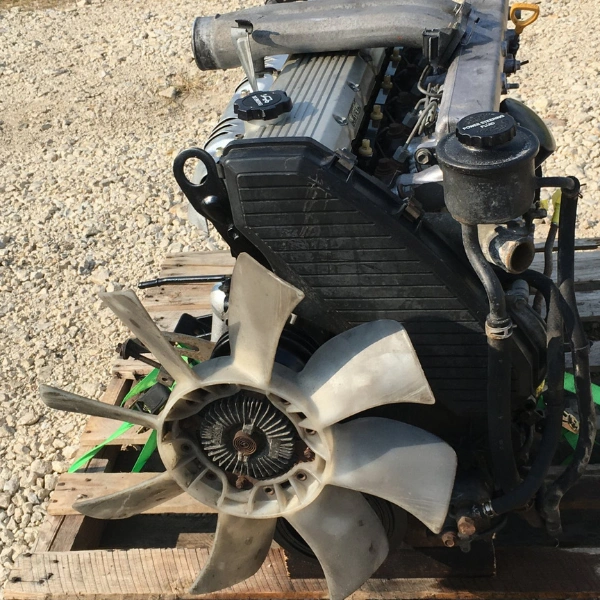

About This Engine

The Toyota 1HZ is one of the most legendary diesel engines in automotive history. Introduced in 1990 to replace the 2H diesel in the Toyota Land Cruiser 70 and 80 Series, it has been in continuous production for over 35 years and still powers new 70 Series Land Cruisers in markets with relaxed emissions regulations. No modern diesel engine- with its variable-geometry turbos, piezoelectric injectors, and multiple control modules- has approached the 1HZ's reputation for reliability in genuinely remote and hostile environments.

The foundation of the 1HZ's durability is its deliberate simplicity. The entire block and cylinder head are cast iron- no aluminum components in the core structure. The fuel injection is entirely mechanical- no ECU required for the engine to operate. Wet cylinder liners can be replaced during a field rebuild without replacing the block. The 7-bearing crankshaft with 12 counterweights runs with exceptional smoothness for a naturally aspirated diesel of this displacement. In fleet applications including mining trucks, military vehicles, and humanitarian organization fleets across Africa and the Middle East, the 1HZ has documented service lives exceeding 500,000 km before requiring major overhaul.

In its naturally aspirated form the 1HZ produces 129 hp and 210 lb-ft of torque. These numbers are modest by modern standards but entirely appropriate for a 300 kg cast iron diesel inline-six. The torque arrives at 2,200 rpm and the engine is happiest operating between 1,500 and 3,000 rpm. The 1HZ was never intended to be fast- it was designed to start reliably at minus 30 degrees Celsius, pull heavy loads up steep grades, and keep running indefinitely with regular oil changes and a timing belt replacement every 100,000 km.

Signs You Need a Replacement Engine

• White smoke on cold start that persists- glow plug failure (the 1HZ's most common minor maintenance item) | If white smoke continues after warm-up, suspect head gasket or pre-combustion chamber crack
• Blue-grey smoke- burning oil, valve stem seal wear on high-mileage engines
• Loss of power without visible external damage- injection pump timing or injector wear
• Coolant loss without external leak- pre-combustion chamber cracking causing internal coolant breach
• Hard cold start despite good glow plugs- injector delivery rate wear or injection pump timing drift
• Excessive fuel consumption- injector spray pattern degradation on high-mileage units

Known Problems With This Engine

• Pre-combustion chamber (prechamber) cracking- the 1HZ's primary known failure: The indirect injection design uses a swirl chamber prechamber for each cylinder. This prechamber is cast into the cylinder head and is the most heat-stressed component in the engine. Sustained overheating- particularly repeated episodes- can crack the prechamber, causing coolant intrusion into the combustion chamber. We specifically inspect for prechamber condition and coolant contamination before shipping. Any unit showing prechamber crack evidence is rejected.
• Cooling system neglect is the root cause of most 1HZ problems: The vast majority of 1HZ failures trace back to cooling system neglect- a cracked or blocked radiator, failed thermostat, or incorrect coolant mixture. The 1HZ runs at higher-than-expected coolant temperatures under load. A pristine cooling system is mandatory for 1HZ longevity.
• Timing belt replacement is critical: The 1HZ uses a rubber timing belt to drive the SOHC camshaft. It must be replaced every 100,000 km (approximately 60,000 miles). Unlike many modern diesel engines, the 1HZ's timing system is not self-tensioning. A failed belt at high mileage can bend valves. We assess belt condition before shipping.
• Injection pump age: The mechanical injection pump on high-mileage 1HZ engines can develop internal wear causing delivery rate reduction and poor performance. This is a serviceable component but requires specialist diesel equipment. We note injection pump condition indicators before shipping.
• Glow plug failure: The individual cylinder glow plugs are the 1HZ's most common routine failure. Failed glow plugs cause hard cold starting and white smoke. These are cheap and easy to replace but must be checked at installation.

Toyota HZ Engine Family

The 1HZ sits within a broader Toyota HZ diesel family:

What Is Included- What Is Not Included

Vehicle Compatibility

The Toyota 1HZ was factory installed in the following vehicles:

The 1HZ is occasionally used in swap applications by overland and expedition builders who want the 1HZ's extreme reliability and mechanical simplicity in a non-Land Cruiser chassis. The engine's fully mechanical nature and compact injection pump make it adaptable to applications without engine management systems. Call (240) 301-0095 with your specific project and we will advise on fitment.

Transmission compatibility: H150F 5-speed manual- standard 70 and 80 Series Land Cruiser pairing | H55F 5-speed manual- earlier applications | The 1HZ was never paired with an automatic transmission in factory configuration. All 1HZ Land Cruisers are manual transmission vehicles.

Not sure if this fits? Call (240) 301-0095. We verify fitment before every order ships.

Common Names and Search Terms

Used OEM vs Rebuilt- Which Is Right for You?

Used OEM is the right choice for a Land Cruiser 70 or 80 Series 1HZ replacement. The engine's long documented service life means a tested unit with solid compression and verified prechamber condition is the practical foundation for another 200,000 km or more.

A specialist rebuild makes sense for a Land Cruiser that will see extremely demanding use- mining, overland expedition, or military/humanitarian fleet. 1HZ rebuild specialists can fit new wet liners, recondition the head and prechambers, and deliver an engine with known-new tolerances. Call us and we can advise on current unit condition.

Condition and Inspection Process

• Compression test across all 6 cylinders- results per cylinder recorded. Healthy 1HZ typically shows 3.2 to 3.6 MPa across all cylinders (Toyota spec: 3.6 MPa, minimum 2.65 MPa).
• Pre-combustion chamber condition specifically assessed- the 1HZ's primary known failure point inspected visually and via compression and coolant check
• Coolant inspected for combustion gas contamination and oil- signs of prechamber crack detected before shipping
• Injection pump presence and apparent external condition noted
• Timing belt condition assessed- 100,000 km replacement interval noted
• Glow plug condition checked where accessible- common minor maintenance item on aged 1HZ units

Mileage varies by unit. Where available from the donor vehicle we provide it. Where it cannot be confirmed, we disclose this before your order is placed.

Buyer Tips- What to Know Before You Order

• Service the cooling system completely at installation: The 1HZ's documented failure modes almost all trace back to cooling system neglect. New thermostat, all hoses, full coolant flush with correct concentrate ratio (50/50 minimum), and radiator inspection are all mandatory at installation.
• Timing belt at installation: Replace the timing belt, tensioner, and idler at installation regardless of apparent condition. The 1HZ timing belt has a 100,000 km replacement interval. An unknown-history engine should be assumed to need immediate belt replacement.
• Glow plug check: Test and replace any failed glow plugs before the first cold start. A fresh 1HZ with failed glow plugs will white smoke heavily on cold starts and put unnecessary strain on the starter.
• Injection pump service: If the injection pump has unknown history, arrange for a diesel injection specialist to check delivery rates and timing before extended use. This is a relatively inexpensive check that prevents power loss complaints.
• Turbo conversion: The 1HZ can accept a turbocharger with appropriate supporting modifications. Boost pressure should be kept below 10 psi and exhaust gas temperature carefully monitored. A safe turbo setup significantly improves the 1HZ's low-end torque for towing.

Why Buy From Vaz Auto Solutions

• Pre-combustion chamber condition specifically assessed- the 1HZ's primary known failure point evaluated before shipping
• Compression tested across all 6 cylinders- results shared before order confirmed
• Coolant inspected for combustion gas- prechamber crack sign assessed
• Injection pump presence and condition noted
• Timing belt condition disclosed- 100,000 km interval flagged
• No core charge- keep your old engine
• Free freight pallet delivery to all 50 states
• 15 day replacement warranty on internal engine defects
• Call (240) 301-0095- speak with someone who understands 1HZ Land Cruiser engine applications and the prechamber failure mode
