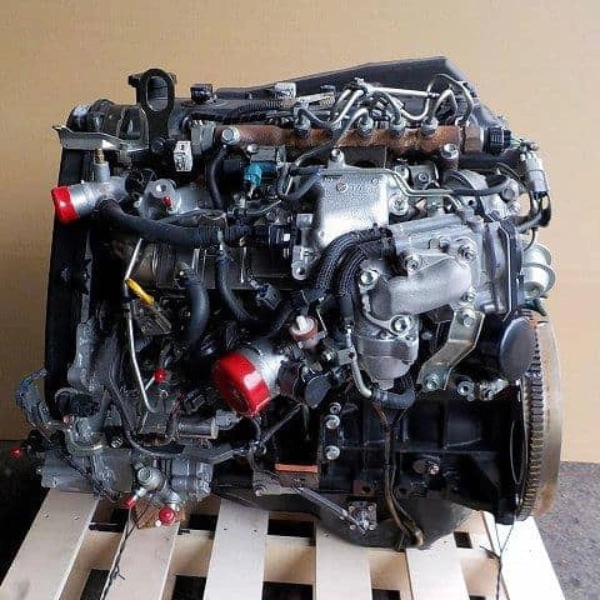

About the Toyota 1KD-FTV Engine
The Toyota 1KD-FTV is modern diesel engineering at its very finest, bringing together under one impressive roof great power, outstanding efficiency, and true reliability. It is an engine that has become the powerplant of many great Toyotas around the world, building a solid reputation as a powerhouse with truly enduring performance. The quiet achiever does not simply move vehicles; it propels adventures and livelihoods. The 1KD-FTV is known to be silky smooth in its performance, offering power with refinement.
This Toyota 1KD-FTV engine for sale here will give the driver enough faith to cruise both on city streets and off the road. For most owners, this engine represents Toyota at its best balance between everyday practicality and the ability to make light work of rough conditions.
Engine Overview: Toyota 1KD-FTV
The Toyota 1KD-FTV is a 3.0-liter turbo diesel engine that delivers strong power output without compromising fuel economy. It has a total displacement of 2,982 cc with 96 mm bore and 103 mm stroke. With this engine configuration, it produces solid horsepower and torque, making this engine an ideal fit for off-road and utility vehicles.
It uses a DOHC format with 16 valves for effective air intake and combustion. With its sophisticated D-4D Common Rail Direct Injection system, the Toyota 1KD-FTV engine for sale here can deliver fuel precisely, enabling smooth running performance coupled with excellent fuel economy.
Important Market Disclosure
- The Toyota 1KD-FTV was NOT officially sold in the US market. This is a Japan Domestic Market (JDM) and global market engine that powered Toyota diesel vehicles across:
- Australia and New Zealand (Hilux, Land Cruiser Prado, Hiace)
- Europe (Land Cruiser Prado J120 and J150)
- Middle East (Land Cruiser Prado, Hilux, Hiace)
- Africa (Hilux, Land Cruiser Prado, Hiace , popular in mining and aid applications)
- Asia (Hilux, Hiace, Fortuner, Innova)
- Japan (JDM Land Cruiser Prado, Hilux Surf, Hiace)
Typical US Buyer Interest
US buyers seeking the 1KD-FTV typically pursue:
1. Engine swap projects: Converting older US Toyota gasoline trucks to diesel power
2. Export vehicle restoration: Maintaining grey-market imported Hilux, Land Cruiser Prado, Hiace, or Fortuner vehicles
3. Military and overlanding applications: The 1KD-FTV's global reputation for desert / off-road durability makes it desirable for serious overlanding builds
4. Classic Land Cruiser Prado restoration: Maintaining Prado examples brought into the US after the 25-year import rule
5. Aftermarket diesel conversion: Converting older US Toyota trucks for fuel economy improvements
1KD-FTV Engine Specifications
| Detail | Description |
|---|
| Feature | Specification |
| Engine Code | 1KD-FTV (KD-series diesel) |
| Configuration | Inline-4 turbo diesel, DOHC |
| Displacement | 3.0L (2,982 cc) |
| Bore x Stroke | 96.0 mm x 103.0 mm |
| Compression | 17.9:1 (early) / 16.8:1 (later) |
| HP | 171 HP (live page spec) |
| Torque | 302 lb-ft (live page spec) |
| Aspiration | Turbocharged with intercooler |
| Turbo Type | Fixed-vane (early) / VGT (2003+) |
| Fuel System | Common Rail Direct Injection (D-4D) |
| Fuel Pressure | 1,800+ bar |
| Valvetrain | DOHC, 16 valves |
| Block | Cast iron (diesel strength) |
| Head | Aluminum |
| Crankshaft | Forged steel |
| Connecting Rods | Forged steel |
| Production | 2000-2018 |
Features of the Toyota 1KD-FTV Engine
The Toyota 1KD-FTV engine for sale here features:
Common Rail Direct Injection (D-4D): Electronically controlled high-pressure fuel injection at 1,800+ bar provides precise fuel control, lower emissions, reduced noise, and improved fuel economy compared to older mechanical diesel injection
- Variable Geometry Turbocharger (VGT) on Later Variants: Improves low-RPM response and overall power delivery by variable turbine vane geometry
- DOHC 16-Valve Architecture: 4 valves per cylinder for better breathing and combustion efficiency
- Cast Iron Block: Diesel-strength construction for high compression ratio (17.9:1 to 16.8:1)
- Forged Steel Crankshaft and Connecting Rods: Built to handle diesel combustion pressures and high torque
- Intercooled Turbocharger: Reduces intake air temperature for denser air charge
- Glow Plug Cold Start System: 4 glow plugs for reliable cold weather starting
- Electronic Throttle Control: Modern engine management for smooth power delivery
Vehicle Applications (Non-US Market)
Toyota Hilux (International)
- The most common 1KD-FTV application globally. The Hilux has been Toyota's legendary global pickup truck:
- Top Gear "Indestructible" testing: Famously survived demolition, fire, drowning
- Military and aid applications: Preferred by militaries worldwide
- Global production: Built in multiple countries (Thailand, South Africa, Argentina, Indonesia)
- 1KD-FTV variants: N20, N25, N70 series Hilux generations
Toyota Land Cruiser Prado
The premium SUV application with 1KD-FTV diesel power:
- J120 chassis (2002-2009): Mid-generation Prado with 1KD-FTV
- J150 chassis (2009-2018+ in some markets): Updated Prado with 1KD-FTV and later 1GD-FTV
- US import potential: 25-year import rule has begun allowing 1996+ Prados into US
- Highly desired: By Land Cruiser enthusiasts seeking authentic diesel Prado experience
Toyota Hiace
The international commercial van:
- Hiace H200: Diesel variants for commercial markets
- Heavy use applications: Taxi services, commercial deliveries, ambulance conversions
- Reliability reputation: Has earned legendary status in commercial fleet applications
Toyota Fortuner
The Hilux-based SUV:
- Asian and Australian markets: Popular family/work SUV
- 1KD-FTV diesel option: Premium powertrain choice
Toyota Dyna and Toyoace
Light commercial trucks:
- Various international markets: Cab-over delivery trucks
1KD-FTV in select variants
1KD-FTV vs Toyota's Newer KD-Series Successors
The 1KD-FTV has been progressively replaced by newer Toyota global diesel engines:
| Feature | 1KD-FTV (This Listing) | 2GD-FTV (2.4L Successor) | 1GD-FTV (2.8L Successor) |
|---|
| Displacement | 3.0L | 2.4L | 2.8L |
| Years | 2000-2018 | 2015+ | 2015+ |
| HP | 171-188 HP | 147 HP | 175-201 HP |
| Torque | 302-310 lb-ft | 295 lb-ft | 310-369 lb-ft |
| Emissions | Older standards | Modern (Euro 5/6) | Modern (Euro 5/6) |
| Replaces | N/A (original) | Lower-tier 1KD applications | Mainstream 1KD applications |
- The 1KD-FTV is being phased out as Toyota moves to the newer GD-series diesels for tightening global emissions standards.
Why Choose a Used Toyota 1KD-FTV Engine?
- Cost savings vs international new parts ($4,999 used vs $7,000-12,000 new from international sources)
- Direct fit for imported Hilux, Land Cruiser Prado, Hiace, Fortuner applications
- Engine swap potential , popular for converting older Toyota gasoline trucks to diesel
- Global diesel expertise , Toyota's most legendary medium-duty diesel
- Strong torque output , 302 lb-ft for serious work applications
- Common rail efficiency , modern fuel injection technology
- Variant matching , we verify fixed-vane turbo (early) vs VGT (later)
Common 1KD-FTV Service Items (Honest Disclosure)
The 1KD-FTV has several well-documented service areas:
Injector Failures (Documented Issue)
Particularly common on early 1KD-FTV production:
- Symptoms: Hard starting, smoke, rough running, fuel knock
- Cause: Early injector design durability issues
- Toyota response: Updated injector designs addressed the issue on later production
- Service: $200-400 per injector, requires 4 injectors typically
- Common at: 80,000-150,000 miles on early variants
EGR Cooler Issues
Documented in some markets:
- Symptoms: Coolant leaks, overheating, white smoke
- Cause: EGR cooler internal corrosion or cracking
- Service: $400-800 part plus labor
Carbon Buildup on Intake
Typical of direct-injection diesel engines:
- Symptoms: Reduced power, rough running
- When: 80,000-120,000 miles
- Service: Intake cleaning, walnut blasting ($500-1,500)
Oil Sump Issues (Early Production)
Early 1KD-FTV examples had documented sump failures:
- Cause: Oil sump design issue, addressed in later production
- Service: Sump replacement and inspection
Variable Geometry Turbocharger (VGT)
Later variants with VGT can develop:
- Sticking vanes: From carbon buildup
Wastegate actuator failures
- Service: VGT cleaning ($300-600) or replacement ($1,500-3,000)
DPF Issues (Where Equipped)
Markets with Diesel Particulate Filter:
- Regeneration issues: Short trip driving prevents proper regeneration
- Clogging: Requires forced regeneration or replacement
- Service: $1,000-2,500 for replacement
Glow Plug Failures
Service item at high mileage:
- Service: $30-80 per glow plug (4 total)
Here at Vaz Auto Solutions, you'll find this Toyota 1KD-FTV engine for sale at fair pricing, with engine variant verified (fixed-vane vs VGT), donor vehicle confirmed where determinable, all 4 cylinders compression tested (diesel spec), common rail D-4D fuel injection system tested, all 4 injectors verified (documented service area), turbocharger condition verified, EGR cooler assessed, carbon buildup inspected, head gasket assessed, and complete inspection.
Vehicle Compatibility
Direct Fit (NON-US Market Applications):
| Vehicle | Compatibility |
|---|
| Toyota Hilux (International) | N20, N25, N70 series global Hilux with 1KD-FTV diesel option |
| Toyota Land Cruiser Prado J120 | 2002-2009 Prado with 1KD-FTV (US import eligible 2027+) |
| Toyota Land Cruiser Prado J150 | 2009-2018+ Prado with 1KD-FTV (US import eligible 2034+) |
| Toyota Hilux Surf (JDM) | 4Runner equivalent for JDM market with 1KD-FTV |
| Toyota Hiace (International) | H200 series and earlier with diesel option |
| Toyota Fortuner | Asian and Australian SUV markets |
| Toyota Dyna / Toyoace | Light commercial truck applications |
| Toyota Innova | Some Asian market diesel applications |
| Engine Swap Applications | Older Toyota gasoline truck diesel conversions (Tacoma, 4Runner, T100), overlanding builds, custom Land Cruiser projects |
Condition and Inspection
- Engine variant verified (early fixed-vane vs later VGT)
- Donor vehicle confirmed where determinable (Hilux / Prado / Hiace / Fortuner)
- All 4 cylinders compression tested (diesel compression specification, typically 350-450 PSI)
- Oil pressure verified at idle and operating speed
- Common rail D-4D fuel injection system tested (HPFP + 4 injectors)
- All 4 fuel injectors function verified (well-documented service area)
- High-pressure fuel pump function verified
- Fuel rail pressure sensor function verified
- Turbocharger condition verified (fixed-vane or VGT per variant)
- VGT vane operation tested (later variants only)
- Wastegate function verified
- Intercooler condition assessed
- EGR cooler condition assessed (documented service area)
- EGR valve function verified
- Carbon buildup on intake assessed (direct-injection diesel typical service)
- Cylinder head condition assessed (aluminum head, warping check)
- Head gasket condition verified
- Cast iron block condition inspected
- Forged steel crankshaft condition inspected
- Forged steel connecting rods condition inspected
- Glow plug function verified (4 glow plugs)
- Coolant system function verified
- Oil sump condition inspected (early production documented service area)
- DPF condition assessed where equipped
- Miles from donor vehicle documented where available
- Engine variant correctly identified (early fixed-vane vs later VGT)
- Honest US market disclosure (NOT US market engine, JDM/global only)
- All 4 fuel injectors function verified (documented service area)
- Turbocharger and VGT condition verified
- EGR cooler condition assessed
- Carbon buildup inspection completed
- Oil sump condition inspected (early production service area)
- All 4 cylinders compression tested (diesel specification)
- Common rail D-4D system tested
- Donor vehicle confirmed where determinable
- Toyota KD-series diesel expertise
- 1KD-FTV swap consultation (for engine swap projects)
- International / grey-market import support
- Free freight pallet delivery to all 50 states
- 15 day replacement warranty on internal defects
- Toyota global diesel specialist support team
