The Volvo 850 was a landmark vehicle in Volvo history, produced from 1992 to 1997 (NA market) as the first front-wheel drive and first transverse-engine Volvo. The 850 replaced the rear-wheel drive 700 series in the mid-size segment and introduced the inline-5 cylinder engine that would define Volvo's identity for the next two decades. Sedan and wagon body styles offered the practicality Volvo was famous for, while the T-5 turbo and 850R high-performance variants (especially the flame yellow 850R of 1995 to 1997) gave the 850 unexpected sporting credentials including British Touring Car Championship racing success.

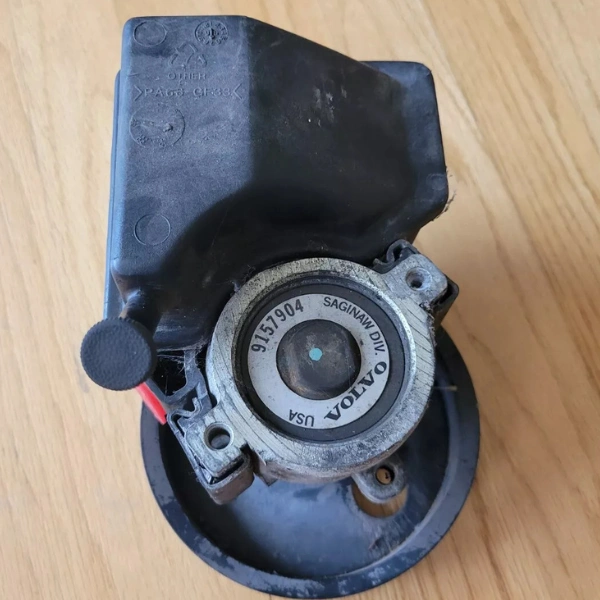

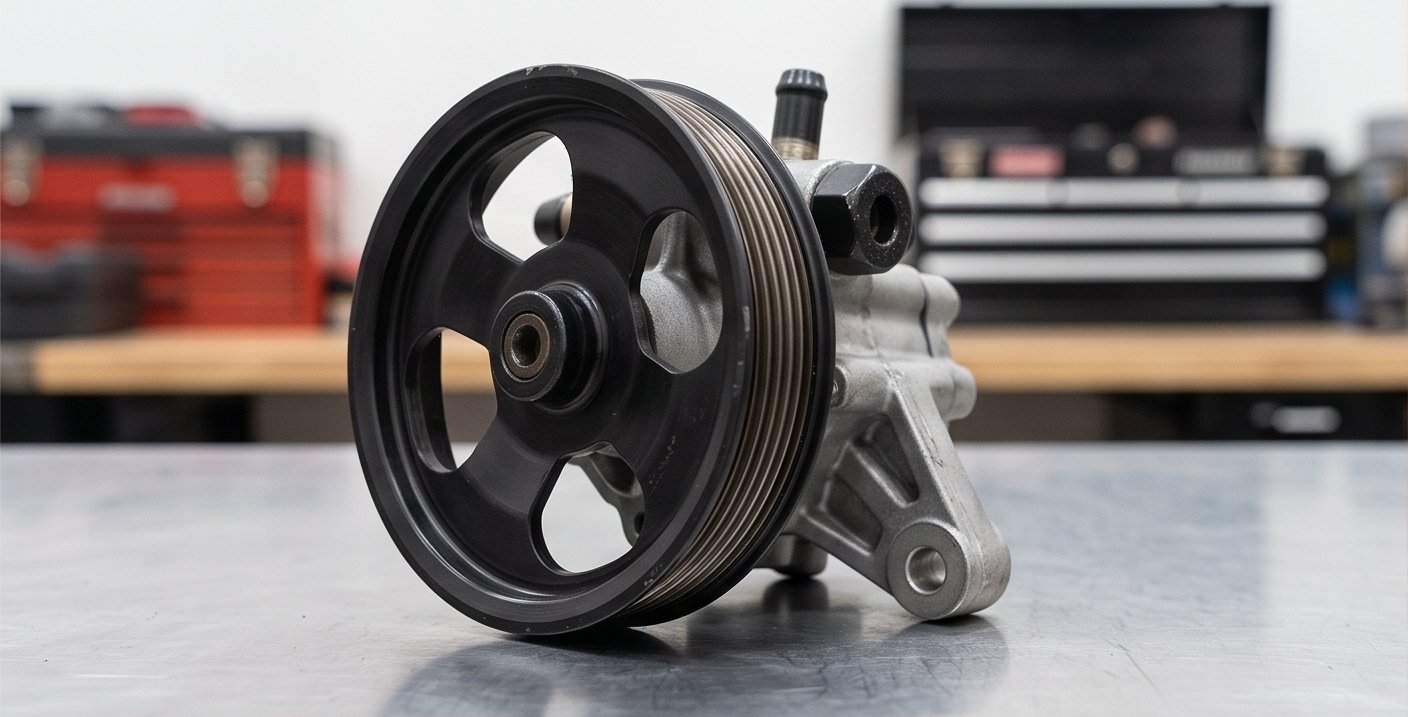

The power steering pump is a belt-driven hydraulic vane pump that provides pressurized fluid to the power steering rack. The transverse engine layout of the 850 packaged the power steering pump on the front of the engine, driven by the serpentine accessory belt from the crankshaft. Integrated reservoir designs on most variants reduced packaging complexity. The pump produces approximately 8 to 10 GPM of hydraulic flow at cruise RPM with relief pressure of 1100 to 1400 PSI, providing the power assist needed for low-effort steering at low speeds and the appropriate effort feel at highway speeds.
The most common reasons 850 owners replace the power steering pump are: whining noise from the pump (typically a cavitation or pulley bearing issue, getting louder over time), hard steering at low speeds (internal vane wear causing pressure loss), fluid leak visible at the pump or below (reservoir seal or shaft seal failure), pulley bearing failure causing belt slip or audible squealing, complete pump seizure causing belt damage or breakage, and contamination from neglected fluid changes causing internal damage.
After 25+ years of service, many original 850 power steering pumps need replacement. The famous high-revving T-5 and 850R variants tend to stress the pump more than the NA versions due to higher accessory belt RPM and more aggressive driving. Our used OE pump at $129 saves significant money over new aftermarket alternatives. Plan on flushing the power steering system with fresh fluid after pump install since contamination from a failing pump can damage the steering rack if not removed.
| Detail | Description |
|---|---|
| Standard 850 NA Pump (2.0L, 2.3L, 2.5L) | Belt-driven hydraulic vane pump with integrated reservoir. Standard pressure output. Most common 850 variant pump. |
| 850 T-5 Turbo Pump (1994 to 1997) | Same physical pump as standard 850 NA but operated at higher RPM due to turbo engine. Same part number for replacement. Pump heated more due to engine bay temperatures. |
| 850R/T-5R Pump (1995 to 1997) | Same physical pump as T-5 but stressed harder due to higher engine output and more aggressive driving on the performance variant. Sometimes paired with revised fluid cooling. Use same replacement pump. |
| Detail | Description |
|---|---|
| INCLUDED | The power steering pump assembly with integrated reservoir (where applicable), drive pulley, internal vane mechanism, shaft, and inlet/outlet ports. Pre-tested for pressure output and bearing condition. |
| NOT INCLUDED | Power steering fluid (refill with Volvo-spec or DEX/MERC ATF after install, typically 1 to 1.5 quarts for full system fill), drive belt (replace if worn or stretched), mounting bracket (reuse original or source separately), pressure or return hose (replace if cracked, often a good idea after 25+ years), pulley remover/installer tool. |
| Tools You Need | Metric socket set (Volvo 850 uses metric throughout), serpentine belt removal tool, pulley puller for pump pulley (if needed for transfer between old and new pumps), fluid catch pan, vacuum pump for bleeding (or use manual bleeding method), torque wrench, jack and stands or lift. Most replacements take 2 to 3 hours. |
The Volvo 850 power steering pump is compatible with the following 850 variants. Confirm year, body style, and engine before ordering.
| Detail | Description |
|---|---|
| Volvo 850 Sedan (1992 to 1997) | 4-door sedan, all engine variants |
| Volvo 850 Wagon (1992 to 1997) | 5-door wagon, all engine variants |
| Volvo 850 GLT (1993 to 1997) | Grand Luxury Touring trim with 2.3L NA I5 |
| Volvo 850 T-5 Sedan (1994 to 1997) | Turbo performance variant, 2.3L I5 Turbo |
| Volvo 850 T-5 Wagon (1994 to 1997) | Turbo wagon, the practical performance Volvo |
| Volvo 850 T-5R Sedan (1995) | Limited 850 T-5R variant, 240 hp |
| Volvo 850 R/850R Sedan and Wagon (1995 to 1997) | Famous flame yellow performance flagship, 240 to 250 hp |
| Year Cross-Compatibility | Same basic pump across 1992 to 1997 with minor revisions |
Not compatible with the older 240, 740, or 940 RWD Volvos which use a different power steering pump design for longitudinal engine layout. Also not directly interchangeable with the S70/V70/XC70 (1997 to 2010) successor models which use related but different pumps for the same I5 engine family. Some 850 pumps interchange with very early S70/V70 1st generation, call to confirm. Modified 850s with aftermarket pulleys or supercharger conversions may require pump verification.
Not sure if this Volvo 850 power steering pump fits your car? Call (240) 301-0095 with your year (1992 to 1997), body style (sedan or wagon), and engine code (2.0L NA, 2.3L NA, 2.5L NA, T-5 Turbo, or 850R). Our team confirms the right pump for your specific 850 application before we ship. The 850R variant (famous flame yellow performance flagship) uses the same pump as standard T-5 with slightly different stress requirements.
This used OE Volvo 850 power steering pump has been bench-tested and inspected before listing. Quality control includes:
Each pump ships with a label identifying the donor vehicle year, engine code, and any notable application notes. Plan on replacing power steering fluid and flushing the system during pump install to prevent contamination from old fluid damaging the new pump prematurely. Bleed the system properly after installation to remove air pockets.
| Application | Volvo 850 sedan and wagon | all engine variants |
|---|---|
| Year Range | 1992 to 1997 (NA market) |
| Historical Significance | First FWD Volvo | first transverse-engine Volvo |
| Body Styles | 4-door sedan | 5-door wagon |
| Engine Compatibility | 2.0L/2.3L/2.5L I5 NA | 2.3L I5 T-5 Turbo | T-5R/850R |
| Drivetrain | Front-wheel drive (FWD) |
| Pump Type | Hydraulic vane pump | belt-driven |
| Hydraulic Output | 8 to 10 GPM | 1100 to 1400 PSI relief |
| Reservoir | Integrated on pump body (most variants) |
| Drive | Serpentine accessory belt from crankshaft |
| Fluid Type | Volvo-spec or DEX/MERC ATF (verify your year) |
| Common Failures | pulley bearing | Vane wear | reservoir leak | seizure |
| 850r Significance | Famous flame yellow performance flagship (1995 to 1997) |
| Production Notable | British Touring Car Championship 850 wagons in 1994 |
| Successor Family | Volvo S70/V70/XC70 (1997 to 2010 70 series modern era) |
| Warranty | 15 day replacement on bench test failure |
| Shipping | Free UPS or FedEx Ground to all 50 states |
To file a claim, contact us within 15 days of delivery at (240) 301-0095 or support@vazautosolutions.com with the original order number, photos of the installed pump, pressure gauge readings if available, and a description of the symptom. We process most warranty replacements within 48 hours.
