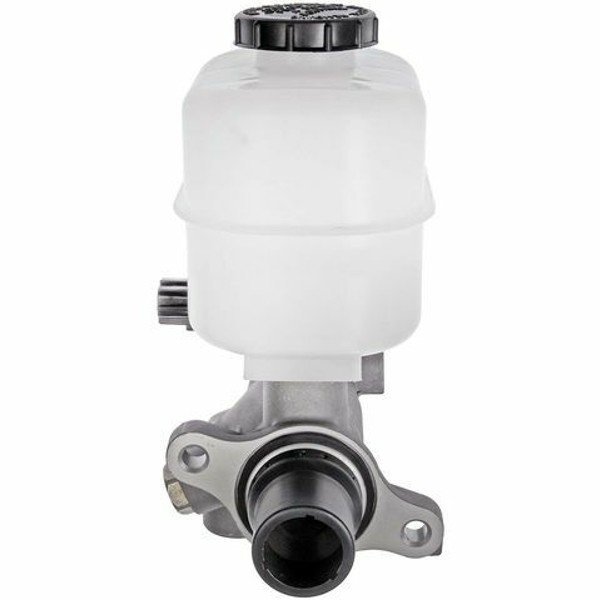

2013 Ford F150 Brake Cylinder | Hydraulic Brake Master Cylinder, OEM Specification

Code: vaz31
(2 customer reviews)
2013 Ford F150 Brake Cylinder | Hydraulic Brake Master Cylinder, OEM Specification

Product Overview & Specifications

  • In Stock, Tested OEM Specification Master Cylinders
  • Free Shipping to All 50 States, 5 to 10 Business Days
  • Piston Seal Integrity Verified Before Shipping
  • Reservoir Cap and Low-Fluid Sensor Connector Verified
  • Engine and Trim Compatibility Confirmed
  • Bench Bleed Required Before Installation
  • Compatible with 2009 to 2014 F-150 (P415/P417)
  • 100% Fitment Verified Before Every Order Ships
  • 15 Day Replacement Warranty on Operational Defects

$120.00

In Stock
100% Fitment Assistance
15 Days Replacement Warranty
Free & Fast Shipping
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

About the 2013 Ford F-150 Brake Cylinder

The brake master cylinder, often simply called the brake cylinder, is the hydraulic heart of your 2013 Ford F-150’s braking system. When you press the brake pedal, the brake power booster amplifies your foot pressure, and the master cylinder converts that amplified force into hydraulic pressure that travels through the brake lines to engage the calipers and slow the truck. The 2013 F-150 uses a tandem (dual-piston) master cylinder design with two separate brake circuits , typically diagonal split , so that if one circuit fails, the other continues to provide partial braking, a critical safety feature.

Why 2013 F-150 Owners Replace the Brake Master Cylinder

Common 2013 F-150 brake master cylinder replacement triggers include:

  • Spongy or soft brake pedal: Air in the system or internal leak in the master cylinder
  • Sinking brake pedal under steady foot pressure: Internal seal failure
  • Brake fluid loss with no visible external leak: Internal seal failure leaking fluid past the seal
  • Loss of one brake circuit: Front-only or rear-only brake function
  • Brake warning light on: Often triggered by pressure imbalance from internal leak
  • Visible brake fluid leak from master cylinder body or seals
  • Reduced overall braking power: Beyond what worn pads or rotors would explain
  • After major brake fluid contamination event: When water or debris contaminates the system, master cylinder seals can be damaged

Common 2013 F-150 Master Cylinder Issues

Things to Confirm Before Ordering

  • Engine in your specific 2013 F-150 (3.7 V6, 3.5 EcoBoost, 5.0 V8, 6.2 V8) , affects size on heavier trims
  • Year (2009 to 2014 cross-fits in most cases)
  • Trim level
  • Whether your truck has ABS, traction control, and/or stability control (affects port configuration)
  • Brake fluid spec (DOT 3 or DOT 4 to OEM Ford)

What Is Included, What Is Not Included

Additional information

application

2013 Ford F-150 (P415/P417 chassis)
cylinder-type

Brake Master Cylinder (hydraulic, tandem dual-piston)
function

Generates hydraulic brake pressure for both brake circuits
construction

Tandem dual-piston for safety redundancy
reservoir

Integrated plastic reservoir with low-fluid sensor
mounting

Bolts to brake power booster on firewall
compatible-engines

3.5L EcoBoost V6, 3.7L V6, 5.0L V8 Coyote, 6.2L V8
outlet-ports

rear circuit), Two (front circuit
brake-fluid-compatible

DOT 3 or DOT 4 (OEM Ford spec)
bench-bleed

Required before installation
includes

low-fluid sensor connector, Master cylinder, reservoir
price

$120.00

2 reviews for 2013 Ford F150 Brake Cylinder | Hydraulic Brake Master Cylinder, OEM Specification

  1. David W. –

    Brake pedal was sinking under steady pressure, classic master cylinder failure. Vaz confirmed 5.0 V8 spec and shipped a tested unit quickly. Bench bled it before install per their advice, brake bleeding went perfectly. Pedal feel is back to OEM, pull on the brake pedal stays solid.

  2. Cole F. –

    Internal master cylinder failure was draining brake fluid into the booster. Vaz confirmed EcoBoost spec, sent tested master cylinder. Honest pricing, far less than dealer wanted. Truck stops solid again, brake warning light cleared. Will recommend.

Add a review

Your email address will not be published. Required fields are marked *

Frequently Asked Questions

What is a Brake Cylinder for the 2013 Ford F150?

A brake cylinder, technically called the brake master cylinder, is a vital component of the braking system responsible for generating hydraulic pressure to engage the brake calipers and slow down or stop the vehicle. The 2013 F-150 uses a tandem (dual-piston) design with two separate brake circuits for safety redundancy.

Why might I need to replace the Brake Cylinder on my 2013 Ford F150?

Replacement of the brake master cylinder may be necessary if you experience symptoms such as spongy or soft brake pedal, brake pedal sinking under steady foot pressure, brake fluid leaks (internal or external), loss of one brake circuit (front-only or rear-only braking), or loss of overall braking power. These issues compromise safety and require immediate attention.

Are Brake Cylinders compatible with all 2013 Ford F150 models?

Brake master cylinders are designed to be compatible with specific vehicle configurations. While the basic design is consistent across the 2009 to 2014 P415/P417 generation, the specific size and port configuration may vary by trim and brake package. Confirm engine, trim, and brake system features before ordering.

How often should I replace the Brake Cylinder on my 2013 Ford F150?

There is no fixed replacement interval. The brake master cylinder is typically replaced when it fails (typically 100,000+ miles). Regular brake fluid flushes (every 2 to 3 years) extend master cylinder life by removing moisture and contaminants that damage internal seals.

What's the difference between a brake cylinder, brake master cylinder, and wheel cylinder?

They’re often confused. The brake master cylinder (also called brake cylinder informally) is the main hydraulic component on the firewall that generates pressure for the entire system. Wheel cylinders are smaller hydraulic components found in drum brake systems (the F-150 uses disc brakes all around, no wheel cylinders). Master cylinder is what most F-150 buyers actually need.

Do I need to bench bleed the master cylinder before installing?

YES. Bench bleeding is critical for a successful install. A master cylinder installed without bench bleeding will leave air in the system that is extremely difficult to bleed out through the wheel calipers. Bench bleed kits are inexpensive and the procedure takes 10 to 15 minutes.

Will this master cylinder fit my 2009, 2010, 2011, 2012, or 2014 F-150?

Yes for matching trim and engine. The 2009 to 2014 F-150 (P415/P417 chassis) shares master cylinder design across the generation. Confirm engine and we ship the right unit.

What brake fluid should I use after installing the master cylinder?

DOT 3 or DOT 4 brake fluid to Ford OEM specification. Do NOT use DOT 5 (silicone-based, incompatible with the rubber seals). Always use fresh, sealed brake fluid. Open brake fluid absorbs moisture from the air, which causes corrosion and reduces brake performance.

Product Warranty

15 Day Replacement Warranty

Every 2013 Ford F-150 brake master cylinder sold by Vaz Auto Solutions is covered by a 15 day replacement warranty from the date of delivery.

Covered:

  • Operational defects (internal seal failure, external leak, reservoir crack) present at delivery
  • Wrong master cylinder shipped due to our fulfillment error
  • Master cylinder does not match described specification

Not covered:

  • Damage from improper installation (failure to bench bleed before install)
  • Damage from contaminated brake fluid or use of incorrect brake fluid spec
  • Damage from running with severely worn pads (causing piston overextension and seal damage)
  • Damage from over-torqued line fittings or mounting bolts
  • Cosmetic wear disclosed before shipping
  • Labor costs of any kind

To file a claim, contact us within 15 days of delivery at (240) 301-0095 or support@vazautosolutions.com.

Trust Badges

  • Internal Seal Tested: No fluid bypass between chambers verified
  • External Seal Verified: No leaks at body or pushrod
  • Reservoir Inspected: No cracks or warping
  • Engine Confirmed: 3.7 V6, 3.5 EcoBoost, 5.0 V8, or 6.2 V8 matched
  • Cross-Year Compatible: 2009 to 2014 F-150 (P415/P417)
  • Free Shipping All 50 States: Standard ground, no hidden fees
  • 15 Day Warranty: Operational defects covered from delivery date
