Description
About This Engine

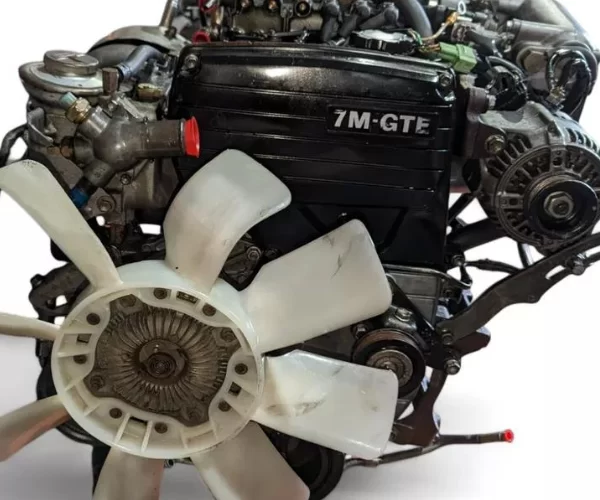

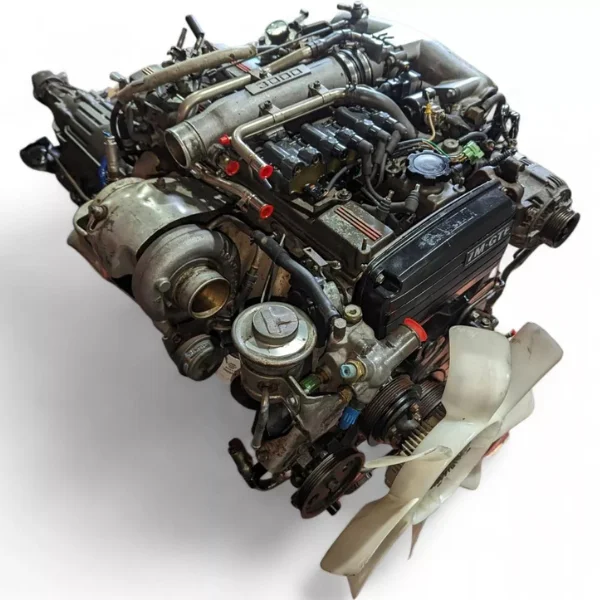

The Toyota 7M-GTE is the turbocharged version of Toyota's final M Series inline-six- a 3.0-liter DOHC engine produced from 1987 through 1992 and found in only two production vehicles: the MK3 Toyota Supra (MA70 chassis) and the Toyota Soarer (MZ20/MZ21 chassis). It was Toyota's flagship performance engine of its era, featuring a cast iron block, aluminum DOHC head, Toyota's CT26 single turbocharger, 24-valve cylinder head, piston oil squirters, and 7-main-bearing crankshaft for exceptional smoothness. In its USDM specification it produced 232 hp and 240 lb-ft of torque- numbers that put the MK3 Supra on 6.5-second 0-to-60 mph capability in period testing.
The 7M-GTE carries a reputation that is both unfair and instructive. The engine itself- block, rotating assembly, valve train, and forced induction system- is fundamentally sound. The cast iron block handles boost well; the 8.4:1 compression ratio provides significant boost headroom; the 7-bearing crankshaft is smooth and strong; the piston oil squirters manage combustion temperature effectively. The reputation concern is specific: the factory head gasket. Toyota used an asbestos-compound head gasket that degrades with time and heat cycling, typically failing at 50,000 to 80,000 miles in neglected applications. The failure allows coolant and oil to mix internally, and if not caught promptly, the secondary damage to the bottom end becomes the real engine killer- not the gasket itself.
The correct response to the head gasket concern is straightforward: replace it with a modern MLS (multi-layer steel) gasket, address the root cause of any overheating that accelerated the failure, and use fresh 10W-30 or 10W-40 oil changed every 5,000 km. A 7M-GTE with a fresh MLS gasket, healthy cooling system, and regular oil maintenance is a reliable and enjoyable engine. The tuning community has documented 400 to 500 hp on relatively modest modifications with the 7M-GTE block- and racing versions (7M-GTEU) produced 580 hp in Group A competition specification.
Signs You Need a Replacement Engine
- White or milky residue inside the oil filler cap- classic sign of coolant intrusion into the oil. The most important warning sign. Stop driving immediately if this appears.
- White exhaust smoke that does not clear after warm-up- coolant burning in the combustion chamber from head gasket failure
- Loss of compression on cylinder 6 specifically- the 7M-GTE's head gasket failure most commonly begins near cylinder 6 where the gasket is most thermally stressed
- Coolant level dropping without visible external leak- internal coolant consumption from failing head gasket
- Oil consumption- valve stem seal wear on high-mileage examples. Solid shim-over-bucket lifters also require periodic valve clearance adjustment.
- CT26 turbocharger shaft play or oil leak from compressor housing- turbo wear on high-mileage units
Known Problems With This Engine
- Head gasket failure- the 7M-GTE's primary and most important known issue: The factory asbestos-compound head gasket is prone to failure from heat cycling and age. The failure sequence is: gasket degrades, allows coolant and oil to cross-contaminate, oil diluted with coolant loses lubrication properties, bearing damage follows if not caught early. We specifically assess for coolant-oil cross contamination before shipping- any unit showing active cross-contamination is rejected. Ask about head gasket replacement history before confirming your order.
- Valve clearance adjustment requirement: The 7M-GTE uses solid shim-over-bucket lifters (not hydraulic self-adjusting). Valve clearance must be checked and adjusted approximately every 50,000 km (30,000 miles) using shimmed adjustment. On an engine with unknown history, budget for valve clearance inspection at installation.
- CT26 turbocharger wear: The factory CT26 is a small turbocharger that at stock boost can last the life of the engine. At elevated boost pressures, the CT26's turbine shaft bearings wear faster. We note any visible turbo oil leak or shaft play before shipping.
- Ignition system age: The 7M-GTE's Toyota TCCS ignition system uses a camshaft position sensor and three wasted-spark coils. These components are aged on any surviving 7M-GTE- budget for ignition system inspection and possible coil and sensor replacement at installation.
- Oil pump adequacy: Some 7M-GTE specialists note the factory oil pump provides marginally adequate oil pressure at high RPM and recommend an oil pump upgrade on engines used in performance applications. For a stock street replacement, the original oil pump is adequate.
Toyota 7M Engine Family- Key Variants
The 7M-GTE sits alongside two other M Series finalizations:
| Engine | Configuration | HP | Applications | Notes |
|---|---|---|---|---|
| 7M-GE | DOHC NA, 3.0L | 190 to 200 hp | Supra MA70 (NA) | Soarer (NA) | Cressida | Naturally aspirated twin of the 7M-GTE. Same block and head architecture, no turbo. |
| 7M-GTE | DOHC Turbo, 3.0L | 232 hp (USDM) | Supra MA70 (Turbo) | Soarer MZ20 (Turbo) | This engine. CT26 turbo. 8.4:1 compression. The final and most powerful M Series. |
| 7M-GTEU | DOHC Turbo (modified), 3.0L | 267 hp | Supra Turbo A (homologation only- extremely rare) | Modified CT26 and larger intercooler. Very rare- only in Turbo A road cars. |
What Is Included- What Is Not Included
| INCLUDED- Long Block | Cast iron block with piston oil squirters, crankshaft, aluminum pistons, connecting rods, dual camshafts, aluminum DOHC 24-valve cylinder head, solid shim-over-bucket valve train, oil pan, timing belt cover. |
|---|---|
| CT26 TURBOCHARGER | May or may not be present depending on the unit- confirm at order. We note turbo condition where present. |
| NOT INCLUDED | Intake manifold, exhaust manifold, CT26 turbocharger (if not included with unit), intercooler and pipes, airflow meter, TCCS ignition system components, alternator, power steering pump, starter, flywheel, ECU and wiring harness. |
| TIMING BELT | The 7M-GTE uses a rubber timing belt driving both camshafts. Replace at installation regardless of apparent condition. This is the engine's timing system- a failed belt causes valve damage. |
| Core Note | No core charge. |
Vehicle Compatibility
The Toyota 7M-GTE was factory installed in the following vehicles:
| Toyota Supra MK3 (MA70 chassis)- Turbo model | 1987 to 1992- the primary application |
|---|---|
| Toyota Soarer (MZ20/MZ21 chassis)- Turbo model | 1987 to 1992- Japanese domestic market application |
| Swap Applications | The 7M-GTE has been swapped into various Toyota and non-Toyota chassis by the Supra community- into AE86, Celica, and custom builds using Toyota bellhousing adapters |
The 7M-GTE uses Toyota's W-series bellhousing pattern- compatible with the R154 5-speed manual (the performance transmission choice) or the A340E 4-speed automatic. The R154 manual was used behind the 7M-GTE in USDM Supra applications with automatic-specific boost levels- the manual application ran slightly higher factory boost pressure. For swap applications outside the Supra, Toyota bellhousing adapter plates and motor mounts are available from the Supra community.
Transmission: Toyota R154 5-speed manual- the preferred performance pairing for 7M-GTE applications | Toyota A340E 4-speed automatic- factory pairing in automatic-equipped Supra and Soarer. The R154 is strongly preferred for any performance use.
Not sure if this fits? Call (240) 301-0095. We verify fitment before every order ships.
Common Names and Search Terms
| 7M-GTE | Most common buyer search code |
|---|---|
| 7MGTE | Code without hyphen- common search variation |
| MK3 Supra engine | Chassis-specific buyer |
| Toyota 7M-GTE | Full designation |
| Toyota 3.0 turbo | Displacement and force induction buyer |
| Supra turbo engine | Application buyer |
| 7M GTE engine | Spaced variation buyer |
| Toyota Supra engine for sale | Broad Supra buyer |
| 7M-GTEU | JDM spec or racing variant buyer |
| 7M turbo inline-6 | Architecture buyer |
Used OEM vs Rebuilt- Which Is Right for You?
Used OEM is a valid starting point for a 7M-GTE replacement- particularly where a compression-tested unit with head gasket and cross-contamination assessment is needed. Our units are specifically checked for the head gasket indicators before shipping.
A rebuilt 7M-GTE with documented MLS head gasket replacement is the gold standard for any performance application. Toyota Supra specialists can rebuild the 7M-GTE with a fresh MLS gasket, valve seal replacement, timing belt, and water pump- delivering an engine with known-good sealing throughout. For any application targeting more than 300 hp, a rebuilt unit with known head gasket history is strongly preferred. Call us to discuss current unit condition.
Condition and Inspection Process
- Compression test across all 6 cylinders- uniformity is the primary health indicator. Healthy 7M-GTE shows 150 to 175 psi across all 6 cylinders. Low compression on cylinder 6 specifically indicates the classic head gasket failure location.
- Head gasket condition assessment- oil inspected for coolant (milky, brown, foamy), coolant inspected for oil (sheen, film). Cross-contamination rejects the unit.
- Coolant system pressure history assessed where possible- any evidence of sustained overheating disclosed
- CT26 turbocharger condition noted where present- shaft play and oil seepage assessed
- Timing belt condition assessed- mandatory replacement at installation flagged
- External inspection for block cracks and gasket surface condition
Mileage varies by unit. Where available from the donor vehicle we provide it. Where it cannot be confirmed, we disclose this before your order is placed.
Buyer Tips- What to Know Before You Order
- Head gasket replacement at installation is the only responsible path: For any 7M-GTE with unknown head gasket history, replace the head gasket with an MLS (multi-layer steel) unit at installation. This is not optional for any performance application. The original Toyota gasket is no longer available- MLS units from Cometic or equivalent specialists are the correct modern replacement.
- Timing belt is mandatory at installation: The 7M-GTE uses a rubber timing belt driving both camshafts. Any used 7M-GTE from a vehicle with unknown service history should be assumed to need a timing belt immediately. A failed belt causes valve damage.
- R154 transmission is the correct performance choice: The A340E automatic was calibrated for lower boost operation. The R154 5-speed manual was calibrated for higher boost. For any performance application, the R154 is the correct transmission pairing.
- Oil specification and intervals: Use 10W-30 or 10W-40 conventional or synthetic meeting Toyota specifications. Change every 5,000 km maximum. The oil pump is marginally adequate at factory specification- fresh oil is the single most important maintenance factor.
- Valve clearance check: Budget for valve clearance inspection at installation. The solid shim-over-bucket adjustment is a precise process requiring feeler gauges and a shim kit. A Toyota Supra specialist or general Japanese sports car specialist can perform this work.
