The unsung hero that keeps the heart of the vehicle's climate control system beating: the Audi A8 A/C wiring harness. This is an intricate network of cables and connectors representing the electrical lifeblood transferring power and signals among the various A/C system components. This harness is designed with the same attention to detail typical of the Audi marque, handling everyday use and environmental stresses reliably. With its solid construction and proper fit, this is a key part of keeping the A/C system functioning properly in the A8.
A quality replacement harness brings new life to the A/C system, restoring proper signal flow and reliable operation. It's a testament to German automotive engineering and demonstrates the importance of every component in the climate control system.

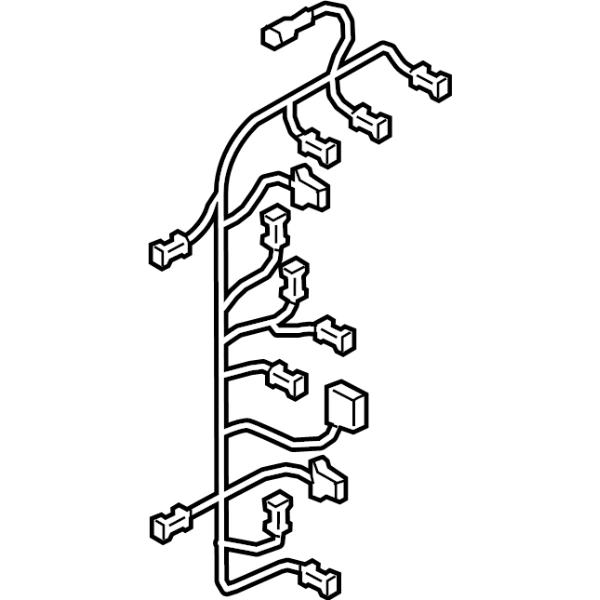

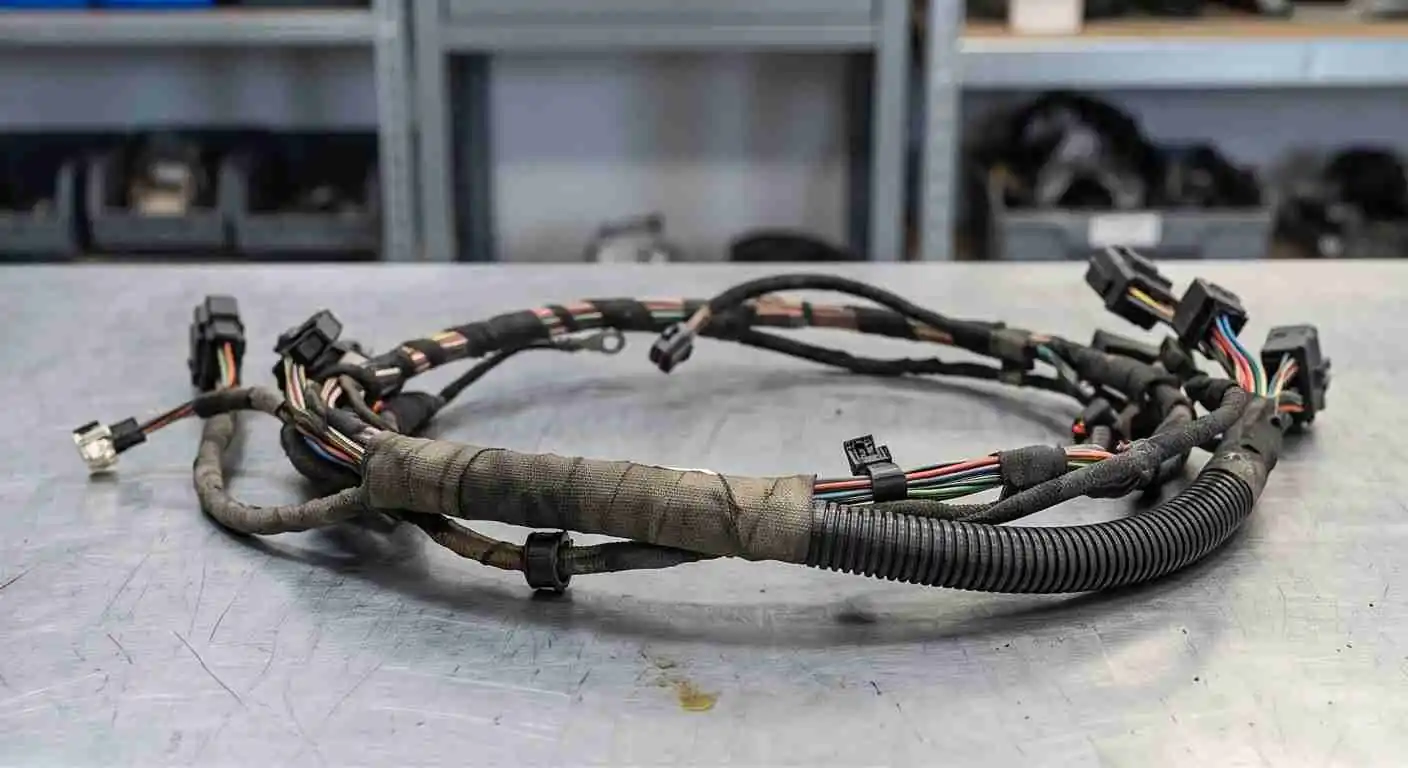

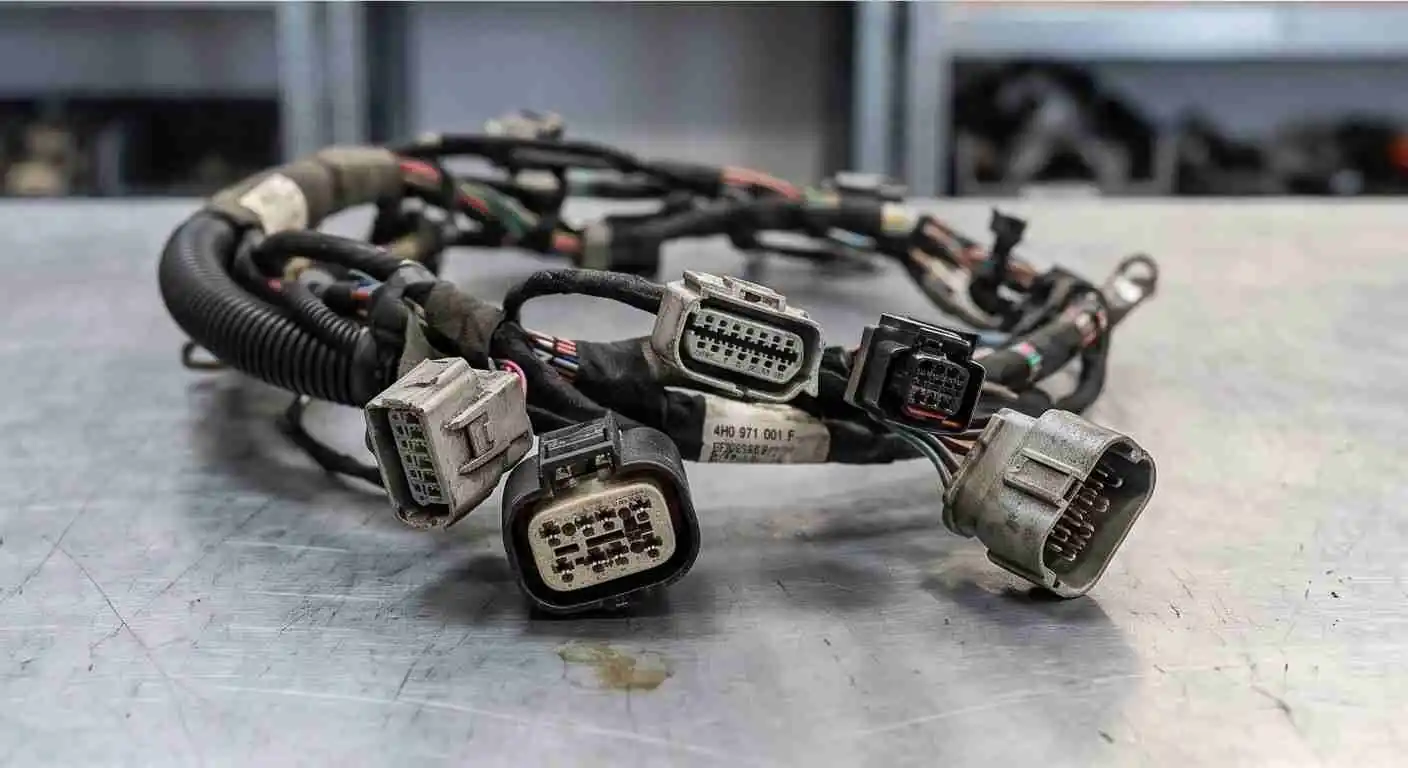

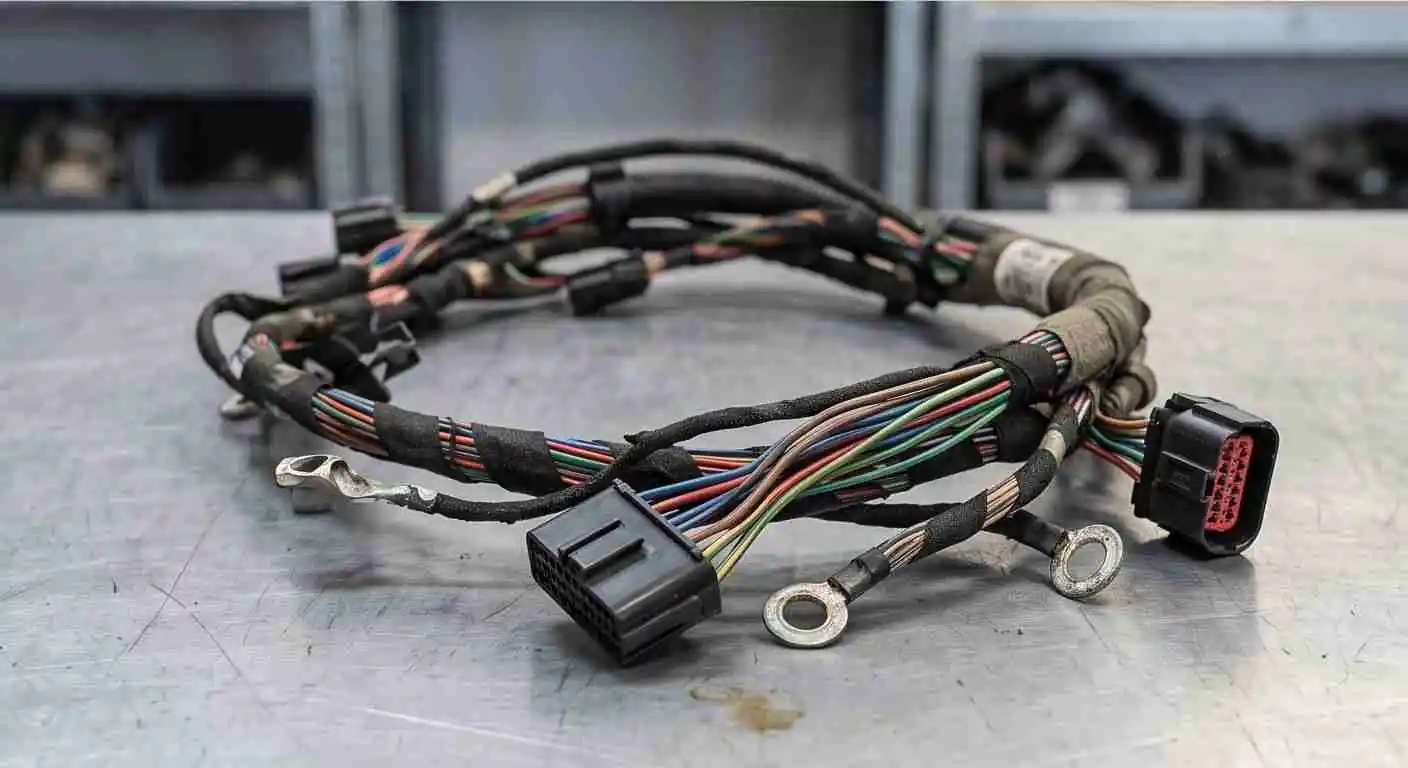

Audi A8 A/C Wiring Harness: The Electrical Nervous System of Your Cooling System
The A/C wiring harness of the Audi A8 is certainly an unsung hero of the vehicle, providing the electrical connections needed for reliable climate control. This intricate assembly of cables and connectors transmits power and signals between various A/C system components, enabling proper integration and coordination with the entire cooling system.
This harness quality matches the detailed attention that characterizes the Audi brand and is built tough enough for everyday driving and prevailing engine bay conditions. Its robust design and precision connectors guarantee proper performance under various conditions.
About the Audi A8
The Audi A8 is Audi's flagship full-size luxury sedan, competing in the most prestigious segment of the automotive market:
Audi A8 Generations
D2 chassis (1994-2002): First generation, introduced aluminum space frame (ASF)
D3 chassis (2002-2010): Second generation, larger and refined
D4 chassis (2010-2017): Third generation, updated electronics
D5 chassis (2017+): Current generation, advanced electronics
Critical Chassis Disambiguation
Different A8 generations use different wiring harnesses , the chassis platform changes affect:
Electrical architecture
Module locations
Connector types
Wire routing
Number of circuits
Verify your specific A8 generation before purchase. This listing primarily covers D2 and D3 chassis applications.
Vehicles affected: Stored vehicles, infrequent use
Previous Repair Damage
Cause: Improper soldering, poor splicing
Symptoms: Random failures, melting
Quality matters: OEM-style repairs vs hack jobs
Signs Your Audi A8 A/C Wiring Harness Needs Replacement
Intermittent A/C operation: Connection problems
A/C system not responding to controls: Module communication failure
Unusual electrical issues in climate control: Wiring fault
Check engine light related to A/C system: ECU detects fault
Burning smell from dashboard area: Insulation failure or short
Visible damage or wear on existing harness: Physical inspection
Blower motor inconsistent operation: Wiring or resistor issue
Compressor clutch not engaging: Signal not reaching clutch
Why Choose Our Used Audi A8 A/C Wiring Harness?
Significant Cost Savings
vs new OEM: $109 used vs $250-500 new
vs reman: $109 used vs $150-300 reman
Direct OEM equivalent: Quality matching new harness when tested
Thoroughly Tested and Inspected
Our Audi A8 A/C wiring harness undergoes:
Electrical continuity testing on every wire
Insulation integrity inspection
Connector pin condition verification
Shielding continuity check (where applicable)
Eco-Friendly Choice
Reusing a used wiring harness:
Reduces automotive landfills
Promotes green living
Maintains OEM specification without new manufacturing
Improved A/C System Performance
Replacing a faulty wiring harness can restore:
Reliable A/C operation
Proper signal flow to all components
No intermittent failures
Quality Assurance
Every wire has continuity end-to-end
No shorts between wires
Insulation is intact with no exposed conductors
Connector pins are clean and undamaged
Shielding is continuous (where applicable)
Color coding matches OEM for proper installation
Critical Pre-Purchase Verification
Before purchasing, verify:
1. A8 chassis generation , D2 (1994-2002) vs D3 (2002-2010) vs D4 (2010-2017) vs D5 (2017+)
2. Engine type , may affect specific harness variant
3. A8 vs S8 , generally same harness for matching chassis
4. Production year specifics , some years have unique variants
5. Climate control system , single zone vs multi-zone may differ
Call (240) 301-0095 with your VIN for exact match verification.
We stand behind the quality of our used Audi A8 A/C wiring harness. Each part undergoes a comprehensive inspection and testing process to verify:
Here at Vaz Auto Solutions, you'll find this Audi A8 A/C wiring harness for sale at fair pricing, with electrical continuity tested on every wire, insulation integrity inspected, connector pin condition verified, shielding continuity checked, color-code verified, and complete harness assessment.
Vehicle Compatibility
Direct Fit:
Vehicle
Compatibility
Audi A8 (D2 chassis)
1994-2002 with factory A/C , the primary application
Audi A8 (D3 chassis)
2002-2010 (verify specific variant)
Audi S8 (D2/D3 chassis)
Performance variant, matching chassis years
Audi A8L (Long Wheelbase)
Where equipped with same A/C system
NOT Compatible
Audi A8 D4 (2010-2017) , different electrical architecture; Audi A8 D5 (2017+) , entirely different electronics
Condition and Inspection
Electrical continuity tested on every wire (verifies no breaks)
Insulation integrity inspected (no damaged or burned insulation)
Connector pin condition verified (no corrosion, no bent pins)
Shielding continuity checked (where applicable, foil or braided)
Color-code verified to OEM specification
No shorts between wires (insulation resistance test)
Overall harness flexibility and condition assessed
Length verified (2 to 4 meters per variant)
Wire gauge verified (18 to 22 AWG)
Number of wires confirmed (10 to 20 per variant)
Connector locking mechanism verified
Color of insulation jacket assessed (no fading indicating UV exposure)
No evidence of rodent damage
No evidence of previous improper repairs (soldering, splicing)
Specifically for Audi A8 D2/D3 chassis (and matching S8)
Electrical continuity tested on every wire
Insulation integrity inspected
Connector pins verified
Shielding continuity checked
No shorts between wires verified
Audi A8 chassis disambiguation expertise (D2/D3/D4/D5)
Luxury Audi specialist support team
Cross-reference assistance for D2 vs D3 vs D4 vs D5 chassis
Free shipping all 50 states
15 day replacement warranty on defects
No core charge, keep your old harness
Part Type
A/C Wiring Harness Assembly
Vehicle Application
Audi A8 (D2 chassis 1994-2002, D3 chassis 2002-2010) and Audi S8
Wire Gauge
18 to 22 AWG
Number Of Wires
10 to 20 wires
Insulation Temperature Rating
125°C (257°F)
Wire Length
2 to 4 meters (6.6 to 13.1 feet)
Harness Weight
0.5 to 2 kg (1.1 to 4.4 lbs)
Shielding Type
Foil shield or braided shield, depending on application
Color Coding
OEM color-coded for proper identification
Connector Type
OEM-style connectors
Not Compatible
A8 D4 (2010-2017), A8 D5 (2017+) , different electrical architecture
Price
$250.00
Steven Gray
Replaced the A/C wiring harness in my Audi A8 using this part from Vaz Auto Solutions. It fits well and restores functionality to the A/C system. The installation was relatively simple, though the overall impact on cooling performance is modest. It's a reliable replacement that gets the job done without any extra features or enhancements. It's a solid choice if you need to replace a worn-out harness.
Michael Sullivan
The harness is built with top-notch materials and fits perfectly, ensuring all connections are secure and reliable. Cooling performance has noticeably improved, with no electrical issues or shorts.
What is the function of the A/C wiring harness in the Audi A8?
The A/C wiring harness transmits power and signals between the air conditioning components and the vehicle's electrical system. It connects: Compressor clutch coil for engagement Condenser fan motor for cooling Blower motor for cabin airflow Temperature sensors throughout system Pressure sensors for system protection Climate control module for system control Door actuators for vent and recirculation control A failure anywhere in this harness can cause A/C system issues from intermittent operation to complete failure.
How do I know if my A/C wiring harness needs replacement?
Signs of A/C wiring harness issues: Intermittent or non-functioning A/C Visible damage to wires (cracking, exposed copper) Electrical faults related to A/C system Burning smell from dashboard or engine bay Connector corrosion (green/white deposits) Random check engine lights related to A/C Components not responding to climate control
Can I fit an aftermarket A/C wiring harness on my Audi A8?
While some aftermarket harnesses are available, OEM-spec used harnesses are strongly recommended for proper match with your vehicle's A/C system: OEM Benefits Exact fit with all connectors Correct wire gauge for current loads Proper shielding for sensor signals Color coding matches service documentation Insulation rating suitable for engine bay heat Aftermarket Risks Wrong connector types: Requires splicing Improper wire gauge: May overheat Missing shielding: Causes sensor interference No documentation: Difficult troubleshooting later OEM-spec used harness is the best balance of cost and quality.
How do I install a new A/C wiring harness in the Audi A8?
Installation steps overview: Preparation 1. Disconnect battery , safety first 2. Document existing routing , take photos 3. Note connector locations , identify each one 4. Gather tools , trim removal, wire crimpers if needed Removal 1. Access dashboard and engine bay sections 2. Disconnect all connectors carefully 3. Note clip and bracket locations 4. Remove old harness following original routing Installation 1. Route new harness following same path 2. Connect at all original points 3. Secure with clips and brackets 4. Verify no pinching or rubbing 5. Reconnect battery and test Professional Installation Recommended Audi electrical systems are complex. Installation by experienced Audi specialist is strongly recommended, especially for D2/D3 chassis with their complex electronics.
Will this harness work for my Audi A8 D4 or D5?
No, this listing primarily covers D2 (1994-2002) and D3 (2002-2010) chassis. The D4 (2010-2017) and D5 (2017+) use: Different electrical architectures Different connector types Different CAN bus systems Different module locations D4 and D5 require chassis-specific harnesses , verify before purchase.
How long should I expect the new harness to last?
With proper installation and normal use: Typical lifespan: 15-20+ years in normal conditions Engine bay portions: May age faster due to heat Connector reliability: Depends on previous moisture exposure Most Audi A8 owners never replace the A/C harness except for specific failure scenarios.
Is this compatible with my Audi S8?
Yes, generally compatible with Audi S8 sharing the same chassis platform as the A8. The S8 uses the same A8 chassis with performance upgrades to engine, transmission, suspension, and brakes , but the A/C system architecture is shared. Verify your specific S8 model year against the chassis generation (D2 S8: 2001-2003, D3 S8: 2007-2011).
How does shipping work?
Free shipping to all 50 US states. The Audi A8 A/C wiring harness weighs approximately 1 to 4 lbs. Typical transit 3 to 7 business days via UPS/FedEx Ground. Harness is packaged carefully to prevent damage to connectors and prevent kinking of wires during transit.
15 Day Replacement Warranty
Covered:
Defects discovered at delivery (wire continuity failure at delivery
Severely damaged insulation discovered upon receipt
Missing connectors not disclosed prior to shipping
Connector pin damage at delivery)
Not Covered:
Improper installation damage
Electrical overload damage from wiring fault elsewhere in vehicle
Modifications to harness after delivery
Wire breaks from forcing during installation
Freight damage. note: audi a/c wiring harnesses should be installed by experienced audi specialist
Complex electrical system requires proper installation
Contact (240) 301-0095 within 15 days.
For Audi A8 D2/D3 Chassis (and S8): Direct fit primary applications
Electrical Continuity Tested: Every wire verified
Insulation Integrity Inspected: No damaged or burned insulation
Connector Pins Verified: No corrosion, no bent pins
Shielding Continuity Checked: Where applicable
No Shorts Between Wires: Insulation resistance verified
Color-Code Verified: OEM specification match
125°C Insulation Rating: Engine bay heat resistance
Luxury Audi Specialist Support: A8/S8 chassis expertise
