Audi Q4 e-tron Air Shutter for Sale

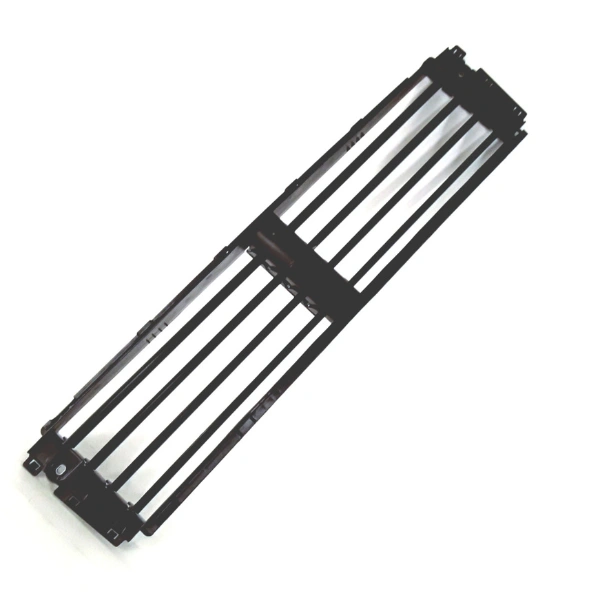

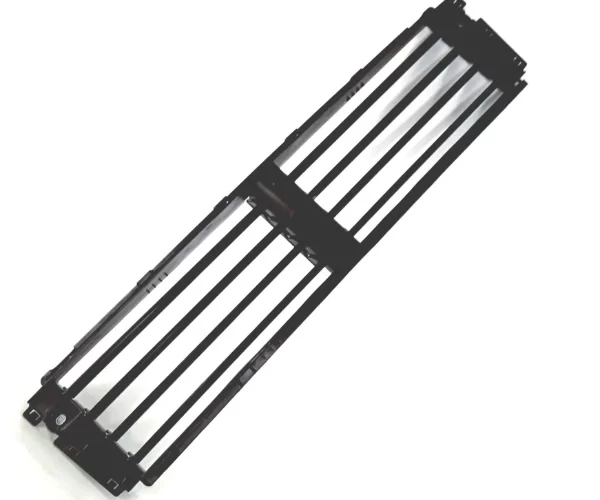

About the Audi Q4 e-tron Air Shutter

The active air shutter is an innovative feature of the Audi Q4 e-tron, enhancing aerodynamic efficiency. Positioned at the front of the vehicle, the active grille system opens and closes via a control system that monitors driving conditions and cooling demands. When closed, it cuts air resistance, improving the vehicle's overall range and efficiency.

The precision-engineered shutter design integrates well with the Q4 e-tron's exterior. Built from strong composite materials, it resists weather conditions without corroding or wearing out quickly. The system works in concert with the vehicle's onboard computers, opening when additional cooling is required during spirited driving, hot weather, or fast charging.

This Audi Q4 e-tron air shutter represents a compromise between performance maximums and energy efficiency for the EV enthusiast, showcasing modern electric vehicle technology from Audi.

Overview of the Audi Q4 e-tron Air Shutter

An air shutter is an innovation in electric vehicle design, combining form and functionality that plays a critical role in the thermal management and efficiency of the car's energy systems. Unlike traditional passive, fixed grilles, the air shutter operates directly in line with driving situations.

It is one piece of the larger integrated system engineering approach that Audi takes with its electric vehicles, where each detail helps increase range and optimize performance. Drivers will hardly notice the shutter because it operates silently in the background. However, the benefits accumulate over time and contribute to both energy savings and reduced cooling system wear.

About the Audi Q4 e-tron

The Audi Q4 e-tron is Audi's compact electric SUV:

Audi Q4 e-tron Background

• Launch year: 2021
• Platform: VW Group MEB (Modular Electric Drive)
• Position: Compact luxury electric SUV
• Competition: Tesla Model Y, Ford Mustang Mach-E, Volvo EX40

Q4 e-tron Variants

• Q4 e-tron: Standard SUV body
• Q4 e-tron Sportback: Coupe-style SUV with sloping roofline
• Q4 40 e-tron: Single-motor RWD configuration
• Q4 50 e-tron quattro: Dual-motor AWD configuration

Technical Specifications

• Battery: 52 kWh (standard) or 77 kWh (extended range)
• Range: Typically 200-265 miles EPA estimate
• Power: 201 HP (single motor) to 295 HP (dual motor)
• DC fast charging: Up to 135 kW
• AC charging: 11 kW standard

MEB Platform Cousins

The Q4 e-tron shares MEB platform with:

• VW ID.4 (Volkswagen)

Key Features and Benefits of the Audi Q4 e-tron Air Shutter

• Improved Aerodynamics: Reduces drag and enhances stability for better handling
• Enhanced Energy Efficiency: Optimizes cooling and reduces energy consumption
• Boosted Performance: Adjusts automatically for efficient drivetrain operation
• Quieter Ride: Minimizes wind noise and cabin turbulence
• Durable Construction: Made from high-quality composite materials for long-lasting use
• Easy Installation: Seamlessly integrates with minimal modifications
• Modern Aesthetics: Sleek design complements the vehicle's look while improving efficiency

Energy Savings: How the Air Shutter Contributes to Battery Life

• Optimized Cooling: Regulates airflow to maintain ideal motor and battery temperatures, reducing battery strain
• Lower Energy Use: Minimizes unnecessary airflow, decreasing the load on electrical systems and conserving battery power
• Enhanced Efficiency: Improves overall vehicle efficiency, supporting longer battery life and range

Intelligent Design: Integration with Other Systems

• Seamless Integration: Works with the vehicle's cooling system to optimize airflow and temperature management
• Adaptive Performance: Adjusts based on driving conditions for improved aerodynamic efficiency
• Enhanced Control: Coordinates with the vehicle's electronic systems to balance cooling needs and energy use

How the AGS Operates

When Closed (Most of the Time)

• Cruising conditions: Moderate speeds, mild weather
• Low cooling demand: Drivetrain operating in efficient range
• Aerodynamic benefit: Reduced drag, extended range
• Energy savings: Less HVAC load

When Open (Higher Demand)

• Spirited driving: High motor output
• Hot weather: Increased thermal load
• Fast charging stops: Battery cooling needed
• Sustained highway speeds: Continuous power demand
• Steep climbs: High torque demand

Computer-Controlled Operation

• Vehicle onboard computer evaluates:
• Vehicle speed
• Motor temperature
• Inverter temperature
• Battery temperature
• Coolant temperature
• Ambient temperature
• Driving mode (Eco, Normal, Dynamic)

Why Use an Active Grille Shutter on an EV

EV-Specific Benefits

• Range optimization: Aerodynamic drag is the biggest energy loss at highway speeds
• Thermal management: Different cooling needs than ICE vehicles
• Battery longevity: Proper thermal management extends battery life
• Fast charging support: Helps maintain optimal battery temperature

Aerodynamic Importance for EVs

• Drag = energy loss: At highway speeds, ~50% of energy goes to aerodynamic drag
• Small improvements matter: Even 1-2% drag reduction adds meaningful range
• Aero package: AGS is part of comprehensive aero design

Common AGS Issues

Actuator Failure

• Cause: Electrical or mechanical failure
• Symptoms: Shutter stuck open or closed, warning light
• Service: Actuator replacement or whole shutter assembly

Physical Damage

• Cause: Road debris, impact
• Symptoms: Visible damage, broken vanes
• Service: Replacement needed

Software/Communication Issues

• Cause: CAN bus communication problems
• Symptoms: Fault codes, inconsistent operation
• Service: Diagnostic and potentially component replacement

Composite Material Degradation

• Cause: UV exposure, age
• Symptoms: Cracking, brittleness
• Service: Replacement typically

Why Choose Our Used Audi Q4 e-tron Air Shutter?

Cost Savings

• vs new OEM: $129 used vs $250-500+ new
• Significant savings: For EV maintenance

Quality Verified

• Actuator function: Verified
• Shutter vanes: Inspected
• Connector pins: Verified
• Composite material: Assessed

EV Specialist Support

• Modern Audi knowledge: e-tron specific
• MEB platform familiarity: Q4 expertise
• Cross-reference assistance: For Q4 e-tron variants

Here at Vaz Auto Solutions, you'll find this Audi Q4 e-tron air shutter for sale at fair pricing, with actuator function verified, shutter vanes inspected, connector pins verified, mounting brackets confirmed, composite material assessed, and complete inspection.

Vehicle Compatibility

Direct Fit:

Condition and Inspection

• Actuator function verified (opens and closes smoothly)
• Shutter vane condition inspected (no damage, no warping)
• Connector pin condition verified (no corrosion, no bent pins)

Mounting bracket integrity confirmed

• Composite material condition assessed
• Control electronics functional where testable
• No signs of impact damage
• No visible cracks or chemical damage
• Lightweight composite construction verified
• Smooth opening and closing motion confirmed
• No binding or rough motion
• Connector locking mechanism functional
• Specifically for Audi Q4 e-tron 2021+
• Actuator function verified on every unit
• Shutter vanes inspected
• Connector pins verified
• Mounting brackets confirmed
• Composite material assessed
• Audi EV specialist support team
• MEB platform expertise
• Cross-reference assistance for Q4 variants
• Free shipping all 50 states
• 15 day replacement warranty on physical defects
• No core charge, keep your old shutter
