About This Engine

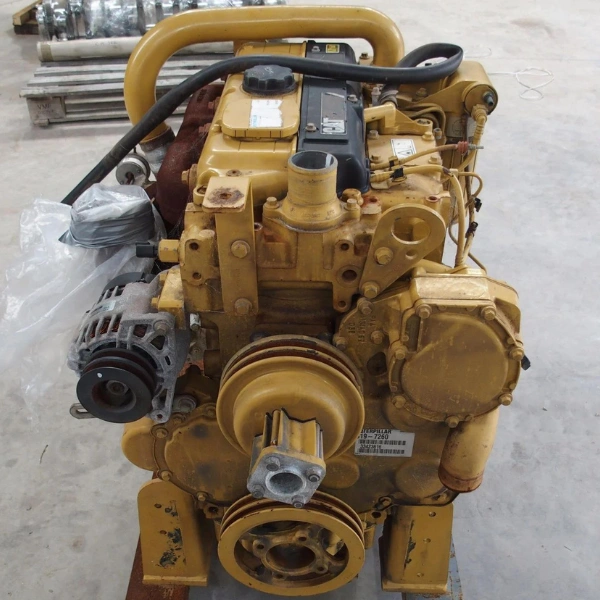

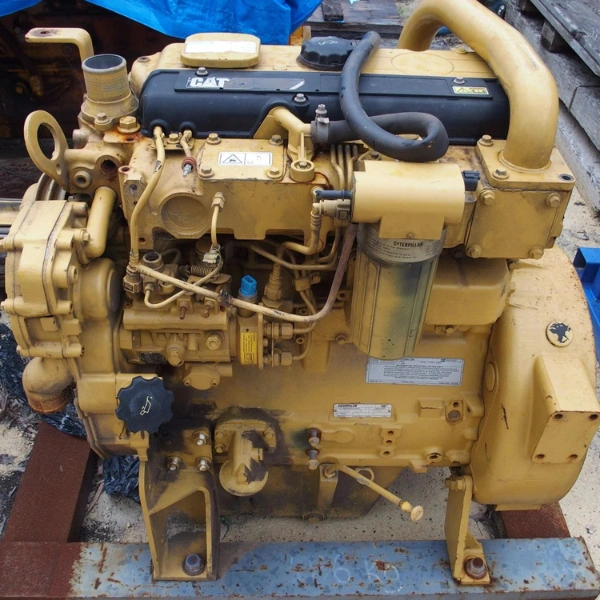

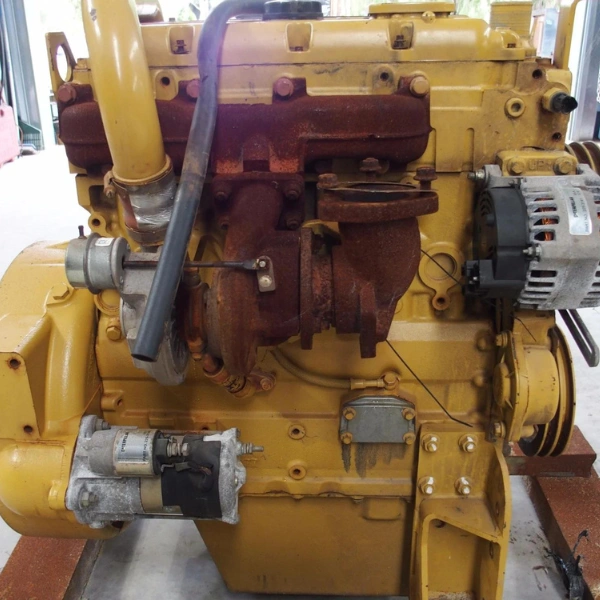

The Caterpillar 3054 is one of the most widely used compact industrial diesel engines in the world. Based on the Perkins 1004.4 engine platform that has been in production since the mid-1970s, the 3054 has powered Caterpillar's backhoe loaders, skid steers, track loaders, telehandlers, and a vast range of other construction, agricultural, and industrial equipment across more than four decades of continuous production. The 3054C remains in production today, reflecting the fundamental soundness of the Perkins-derived design.
The 3054's longevity- over 30 years of documented production and 7,500 or more operating hours with proper maintenance- is directly attributable to its straightforward engineering philosophy. Inline-four cylinder direct injection diesel with a parent bore cast iron block, cast iron head, and simple mechanical fuel injection on most variants. No electronic complexity on the base models, minimal vibration from its balanced inline-four architecture, and enough power (70 to 130 hp depending on variant and aspiration) to meet the demands of compact-to-mid-size construction equipment. The 3054C outsells the competing Cummins 4BT in the skid steer segment specifically because of this combination of durability and simplicity.
Caterpillar acquired Perkins in 1998, absorbing the supplier of the 3054's fundamental architecture into its manufacturing operations. The 3054 is now described as a Caterpillar-Perkins-Mitsubishi design hybrid- reflecting the complex supply chain behind what operators simply know as a reliable compact diesel.
Signs You Need a Replacement Engine
- Black smoke under load- injector wear, injection pump timing drift, or turbocharger issues on turbocharged variants
- White smoke on startup- cylinder wear or injector tip carbonization. Persistent white smoke after warm-up indicates a more serious issue.
- Loss of power- injection pump delivery rate reduction or air filter restriction
- Oil in coolant- head gasket failure on high-hour units that have experienced overheating
- Fuel leak at injection pump or injector lines- high-pressure injection system components age and develop seepage at fittings
- Hard starting in cold weather- glow plug failure (glow plug system differs between 3054 Type 1 and Type 2)
Known Problems With This Engine
- Stress block vs standard block ordering error- the most common 3054 sourcing mistake: The stress block configuration (flat-top U-shaped flywheel housing) uses different bellhousing and flywheel housing components from the standard block (round circular housing). Installing a stress block engine in a standard block application or vice versa causes mounting incompatibility. We identify stress block vs standard block before every order.
- Type 1 vs Type 2 injection system confusion: The two engine types use different fuel injection pumps (Bosch vs Stanadyne vs Delphi). Ordering injection pump components for the wrong type causes parts incompatibility. We document the engine type where determinable.
- Head gasket failure on overheated units: The 3054's cast iron head and block construction is durable, but sustained overheating from cooling system neglect can cause head gasket failure. We inspect coolant condition and head gasket surfaces before shipping.
- Valve lash adjustment requirement: The 3054 requires periodic valve lash adjustment. Inlet valve lash is 0.20 mm (0.008 in) and exhaust is 0.45 mm (0.018 in). Neglected valve lash causes rough running and reduced power output.
- Injection pump aging: High-hour 3054 injection pumps develop internal wear causing reduced delivery rate. This manifests as loss of power and increased fuel consumption. The pump is a serviceable component requiring diesel injection specialist equipment.
Caterpillar 3054 Variant Guide
Key 3054 variants across over 30 years of production:
| Variant | HP Range | Injection System | Key Notes |
|---|---|---|---|
| 3054 and 3054B | 70 to 100 hp | Mechanical (Bosch, Stanadyne, or Delphi) | Older variants. Type 1 or Type 2 engine design. Stress block or standard block. Most common in CAT 416B/C/D backhoes. |
| 3054C | 70 to 130 hp | Mechanical or Electronic (3054C transition) | Most common current variant. EPA Tier 2 equivalent. Parent bore iron block. Top mount or side mount turbo options. Most widespread application. |
| 3054E | Approximately 95 to 130 hp | Electronic injection | Electronic unit injectors or HEUI. More complex than mechanical variants. Improved emissions. Fewer used OEM units available. |
What Is Included- What Is Not Included
| INCLUDED- Long Block | Cast iron block, crankshaft, pistons, connecting rods, camshaft, cast iron cylinder head, valve train, oil pan, front timing cover. |
|---|---|
| Injection Pump | Injection pump inclusion depends on unit- confirm before shipping. Type and mounting configuration documented. |
| NOT INCLUDED | Injection pump (if not present), injectors, turbocharger (if applicable), exhaust and intake manifolds, alternator, starter, flywheel, hydraulic pump drive. |
| Stress Block Note | Stress block configuration identified before shipping- flywheel housing type noted. |
| Core Note | No core charge. |
Vehicle Compatibility
The Caterpillar 3054 was used in the following equipment (not exhaustive):
| CAT 416 Backhoe Loader (B, C, D variants) | Primary application- 3054 and 3054C |
|---|---|
| CAT 426 Backhoe Loader | 3054 and 3054C |
| CAT 428 Backhoe Loader | 3054 and 3054C |
| CAT Skid Steer Loaders (various models) | 3054C- the 3054C specifically outperforms the 4BT Cummins in this segment according to industry references |
| CAT Track Loaders | 3054C and 3054E |
| CAT Telehandlers | 3054C |
| Agricultural equipment (Massey Ferguson M91 series) | 3054C with stress block |
| Generator sets, pumps, and industrial applications | 3054 and 3054C- broad industrial use |
The 3054 uses standard CAT equipment mounting dimensions for its class. Replacement should be like-for-like using the same block type (stress block vs standard), injection system, and turbocharger configuration. Always provide your machine's serial number and engine arrangement number when ordering.
Engine or transmission: Caterpillar powershift transmissions and hydraulic torque converters- application specific. Confirm your machine's drivetrain before ordering.
Not sure if this fits? Call (240) 301-0095. We verify fitment before every order ships.
Common Names and Search Terms
| CAT 3054 | Most common buyer search |
|---|---|
| Caterpillar 3054 | Full designation |
| 3054C | Most common current variant |
| CAT 416 engine | Primary application buyer |
| CAT backhoe engine | Application designation buyer |
| Perkins 1004 | Engine platform designation buyer |
| CAT 4.4 diesel | Displacement-format buyer |
| 3054 skid steer engine | Application-specific buyer |
| CAT 3054E | Electronic injection variant buyer |
| CAT 3054 stress block | Block type aware buyer |
Used OEM vs Rebuilt- Which Is Right for You?
Used OEM is the right choice for equipment operators who need a cost-effective tested engine with variant, block type, and injection system confirmed. The 3054's 7,500-plus hour potential with proper maintenance means a well-assessed used unit provides meaningful service life.
A remanufactured 3054C from CAT Reman or an authorized CAT rebuilder makes sense for applications requiring fresh tolerances and warranty coverage. CAT Reman 3054C units run $5,000 to $9,000 or more. Call us and we can discuss current unit condition.
Condition and Inspection Process
- Full external inspection- block, head, injection pump area, timing gear cover, and all accessible surfaces
- Variant confirmed- 3054, 3054B, 3054C, or 3054E documented before every order
- Stress block vs standard block identification- flywheel housing shape confirmed
- Injection system type documented- mechanical (Bosch/Stanadyne/Delphi) or electronic
- Head gasket surfaces inspected for seepage
- Coolant condition checked for oil contamination
- Serial number and engine arrangement number documented where readable
Mileage and operating hours vary by unit. Where available from the donor vehicle or equipment, we provide this information. Where it cannot be confirmed, we disclose this before your order is placed.
Buyer Tips- What to Know Before You Order
- Identify stress block vs standard block before ordering: Look at the flywheel housing area- if the housing is flat on top and U-shaped at the bottom, it is a stress block. If it is circular/round, it is a standard block. These are NOT interchangeable without significant modification. Tell us which type your machine uses.
- Provide your machine serial number and engine arrangement number: These numbers- stamped on the engine block- are the most reliable way to ensure you receive the correct 3054 configuration for your application. We use these to confirm the correct unit before shipping.
- Type 1 vs Type 2 engine: Type 1 has valves in pairs (two exhaust then two intake). Type 2 alternates exhaust and intake valves. This affects which injection pump components are compatible. When ordering pump-related parts, document which type your engine is.
- Oil specification: SAE 15W-40 API CI-4 or higher. Change every 250 operating hours. The 3054's injection system components are sensitive to oil condition.
- Turbocharger service: If replacing a turbocharged 3054 application, flush the turbocharger oil supply line before installation and change the oil immediately after the first startup to prevent any debris contamination of the new engine's turbo bearing.
Why Buy From Vaz Auto Solutions
- Variant confirmed- 3054, 3054B, 3054C, or 3054E documented before you pay
- Stress block vs standard block identified- most common 3054 ordering error prevented
- Injection system type confirmed- mechanical or electronic documented
- Head gasket surfaces and coolant condition inspected
- Serial and arrangement number documented- parts sourcing made easy
- No core charge- keep your old engine
- Free specialist freight carrier delivery to all 50 states
- 15 day replacement warranty on internal defects
- Call (240) 301-0095- speak with someone who understands 3054 stress block distinctions, Type 1 vs Type 2 engines, and construction equipment engine sourcing
