Description

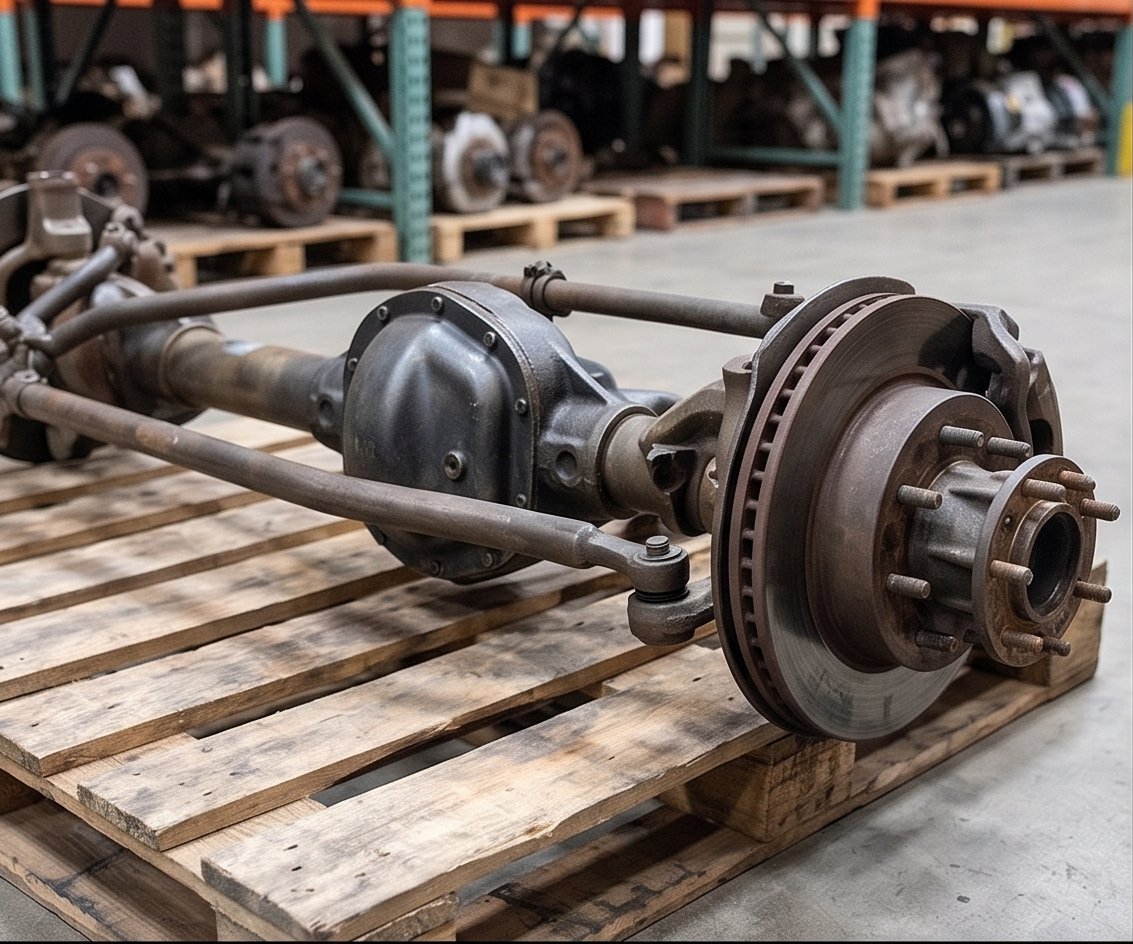

High-Quality Dana 60 Front Axle for Ford Vehicles
Acclaimed for its exceptional performance and reliability, the Ford Dana 60 Front Axle is for sale at Vaz Auto Solutions. Ideal for off-road adventures, solid axle swap projects, 1-ton truck repower, and heavy-duty restorations, this axle is engineered to withstand the most demanding terrains and torque loads.
Dana 60 Front Axle Ford
The Ford Dana 60 front axle is a high-quality solid front axle component designed for Ford’s heavy-duty 4WD trucks and custom applications. This axle is available in various configurations, including the legendary 1978-1979 High Pinion Dana 60 Kingpin front axle (the most desirable variant for swap projects and restorations), offering a choice of gear ratios from 3.54:1 to 5.38:1 to suit different tire sizes, engine torque outputs, and intended use cases.
The Ford Dana 60 Year-by-Year Application Guide
Understanding which Ford Dana 60 variant you need is critical, since Ford used multiple Dana 60 configurations across nearly 50 years of production:
Tell us your specific Ford year and model when ordering, and we’ll match the correct Dana 60 configuration.
Features of Dana 60 Front Axle Ford
- Heavy-Duty Construction: The Dana 60 features a structure plan that is specifically designed for the actual heavy-duty use found in 1-ton trucks, off-road competition vehicles, and severe-duty work conditions. Most variants feature thick 3.125 inch axle tubes and a powerful 9.75 inch ring gear differential housing.
- High Load Capacity: The Dana 60 axle is engineered for substantial Gross Axle Weight Rating (GAWR), providing the load-carrying capacity required for 1-ton trucks, heavy-haul applications, and competition off-road builds.
- Ring and Pinion Gear: The Dana 60 axle uses a robust 9.75 inch ring gear paired with high-strength pinion gear, enabling the platform’s reputation for power transfer, sturdiness, and axial load capacity even under severe shock loading.
- Differential Options: The Dana 60 supports multiple differential configurations depending on Ford model and trim, including open differential (stock most variants), limited-slip differential (some factory and aftermarket), and selectable locker (ARB Air Locker, Eaton ELocker, Yukon Grizzly aftermarket installations are extremely common). These options provide grip and traction in any driving conditions.
- Axle Shafts: Stock Dana 60 axle shafts are robust enough to handle most torque loads, but the platform has extensive aftermarket support for upgraded axle shafts (chromoly 35-spline upgrades, RCV CV-axle conversion kits) for owners building serious off-road or competition applications.
- Braking Compatibility: The heavy-duty Dana 60 is equipped with the proper spindle and rotor configuration for heavy-duty braking systems, particularly necessary when towing trailers, transporting heavy loads, or running large aftermarket tires.
Why Buy a Ford Dana 60 Front Axle
Our Ford Dana 60 front axle for sale comes with several unique features that set it apart from the competition:
- High Clearance Housing: The high-pinion configuration of the Ford Dana 60 (1978-1997 era) improves ground clearance for off-road use by raising the driveshaft connection point above the axle centerline
- DOM Tube Construction: The robust drawn-over-mandrel axle tube construction delivers enhanced durability and strength compared to lighter front axle designs
- Customization Options: Available for various gear ratios and configurations including stock open differential or upgraded limited-slip / locker setups
Cross-Compatibility: Chevy and Dodge Dana 60 Applications
While this listing focuses on Ford Dana 60 applications, the Dana 60 platform was used across the entire 1-ton truck industry. Note that there are important cross-compatibility considerations:
- Chevrolet / GMC K30 1-ton (1977-1991): Used various Dana 60 configurations including high-pinion kingpin variants similar to the Ford application. Chevy Dana 60 components are largely interchangeable with Ford Dana 60 components, with caveats on inner C, knuckle direction, and steering linkage configuration.
- Dodge 3/4-ton and 1-ton (1994-2002): Used LOW-pinion Dana 60 (pinion below ring gear centerline). This is the OPPOSITE direction from the Ford high-pinion configuration. Dodge Dana 60 driveshaft angles differ from Ford. Components like ring/pinion gear sets, differentials, axle shafts may interchange, but housing direction does not.
If you’re shopping a Dana 60 for Chevy K30 / GMC application or Dodge 1-ton application, call (240) 301-0095 and we’ll match the correct configuration for your build.
Condition
We ensure that all our used Ford Dana 60 front axle units are thoroughly inspected and refurbished to meet high standards. Each axle goes through: configuration identification (high pinion kingpin vs ball joint vs Monobeam), donor truck year documentation, gear ratio confirmation, axle shaft condition assessment, kingpin bearing inspection (where applicable), ring and pinion engagement verification, and differential carrier condition check.
Compatibility, Ford Applications
- Ford F-250 (1978-1991.5 with kingpin variant; 1991.5+ with ball joint variant; Super Duty 1999+ with Monobeam variant)
- Ford F-350 (same year ranges as F-250)
- Ford F-250 Super Duty (1999+ with Monobeam / Super 60 variants)
- Ford F-350 Super Duty (1999+)
- Ford F-450 Super Duty (2005+ with Dana Super 60)
- Ford F-550 Super Duty (2005+ with Dana Super 60)
- Ford Excursion (2000-2005 with Monobeam)
- Ford E-250 / E-350 / E-450 Econoline (E-Series) vans (Dana 60 variant in heavy-duty E-Series configurations)
- Ford F-150 (rarely, in some heavy-duty or special editions of older F-150 variants; far less common than F-250 / F-350 applications)
Signs Your Ford Dana 60 Needs Attention
- Ring gear or pinion gear damage (chipped teeth, excessive backlash, whining noise)
- Axle shaft spline wear or breakage
- Kingpin bearing failure (excessive play in steering, knocking noise, wandering)
- Ball joint failure (1991.5+ variants; play in steering)
- Differential carrier bearing wear (whining under load)
- Wheel bearing wear (looseness at the wheel)
- Axle tube damage (bent from impact, cracked from severe shock loading)
- Brake spindle or hub damage
- Donor F-250 / F-350 totaled and the Dana 60 is being moved to a new build
- Off-road competition build requiring 35-spline upgrade
- Solid axle swap project for Jeep, Bronco, Toyota, or other 4WD application
Common Dana 60 Maintenance Considerations
- Differential fluid service: Use 80W-90 or 75W-140 gear oil per Dana service specification. Change every 25,000 to 30,000 miles or after deep water crossing. Add limited-slip additive if equipped with LSD.
- Kingpin service: Periodic kingpin bearing repack with appropriate grease (typically every 30,000 to 50,000 miles or annually for heavy use)
- Ball joint service (1991.5+ variants): Periodic inspection for play; replacement when worn
- Wheel bearing service: Periodic repack of wheel bearings with high-temperature grease
- U-joint service (outer axle shafts): Periodic grease and inspection for play
