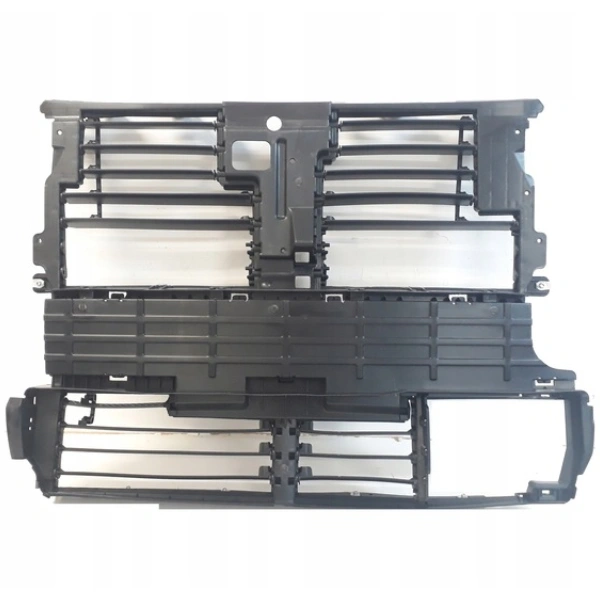

About the Ford Edge Radiator Air Shutter
Direct fit Ford Edge crossover SUV 2011+ (when active grille shutter was introduced on Edge). Ford Edge is mid-size crossover SUV introduced for 2007 model year as part of Ford's US minivan exit strategy (Windstar/Freestar discontinued - Batch 58 vaz527 reference - replaced by crossover lineup including Edge, Flex, Explorer). Edge has 3 generations: 1st gen 2007-2014, 2nd gen 2015-2024, brief production continued 2025+.
Sister vehicles: Lincoln MKX 2007-2018 (1st-2nd generation sharing Edge platform with luxury trim and unique exterior styling), Lincoln Nautilus 2019+ (MKX successor continuing platform sharing).
Edge engines: 3.5L V6 Duratec (standard 2007-2014, ~265 HP), 3.7L V6 Duratec (Edge Sport 2009-2014, ~305 HP), 2.0L EcoBoost I4 (standard 2015+ ~245 HP - improved efficiency direct-injection turbocharged), 2.7L EcoBoost V6 (Edge Sport/ST 2015+ ~315-335 HP), 3.5L V6 hybrid (some 2020+). Transmissions: 6-speed automatic 2007-2014, 8-speed automatic 2015+. Drivetrain: FWD standard or AWD optional.
Active Grille Shutter (this listing's product): modern fuel economy feature introduced on Ford Fusion 2010 then spread to Edge 2011+, Focus 2012+, Escape 2013+, F-150 2013+, most modern Ford vehicles. Multi-vane plastic shutter assembly with electric actuator motor located BEHIND main grille and IN FRONT of radiator. PCM-controlled (Powertrain Control Module) based on engine temperature, vehicle speed, A/C demand signals.
Function: shutters OPEN at low speeds and during high cooling demand (city driving, hot weather, A/C operation, towing) to allow maximum airflow through radiator and condenser for cooling. Shutters CLOSE at high speeds (highway cruising) to reduce aerodynamic drag from grille opening - smoother airflow over vehicle front improves fuel economy 1-2 MPG highway typical. Also helps engine warm-up faster in cold weather by reducing cold air intake (improves cold-start fuel economy and emissions).
Construction: multi-vane plastic shutter assembly (8-12 horizontal or vertical vanes typically), electric actuator motor (12V DC) with position sensor for feedback, electrical connector to PCM wiring harness, mounting brackets to vehicle frame/bulkhead, plastic body for weight reduction and corrosion resistance.
Common failure modes: (1) Actuator motor failure (MOST COMMON - motor seizes or burns out after years of cycling), (2) Broken vanes from impact damage (debris from road, deer strikes, parking lot bumps), (3) Position sensor issues (sensor reports incorrect position), (4) Electrical connector corrosion (water/salt intrusion), (5) Frozen vanes in winter (ice prevents movement). Symptoms: check engine light with codes P0521 or P0522 (active grille shutter position), reduced fuel economy, overheating risk if stuck closed during heavy cooling demand.
Replacement is moderate DIY ~1-2 hours requiring removal of front grille or bumper cover for access. After replacement, may require PCM relearn procedure for shutter position calibration. Function tested before shipping (motor responds to electrical signal, vanes move freely, position sensor functional).
Vehicle Compatibility
| Detail | Description |
|---|
| Ford Edge 2011 (Active Shutter Introduction Year) | Direct fit |
| Ford Edge 2012-2014 (1st Gen Late) | Direct fit |
| Ford Edge 2015-2018 (2nd Gen Early) | Direct fit - different design |
| Ford Edge 2019-2024 (2nd Gen Late) | Direct fit |
| Edge Sport / ST (2.7L EcoBoost) | Different shutter for Sport/ST |
| Engine Specific: | |
| 3.5L V6 Duratec Standard | Standard shutter |
| 3.7L V6 Duratec (Sport 2009-2014) | Different shutter |
| 2.0L EcoBoost I4 (2015+) | Different shutter assembly |
| 2.7L EcoBoost V6 (Sport/ST 2015+) | Different shutter |
| 3.5L V6 Hybrid (some 2020+) | Hybrid-specific shutter |
| Sister Lincoln MKX 2011-2018 | Same platform (often shares shutter) |
| Lincoln Nautilus 2019+ | Similar platform but verify |
| Pre-2011 Edge (No Active Shutter) | Feature did not exist |
| Drivetrain: | |
| FWD Standard | Same shutter typically |
| AWD Optional | Same shutter typically |
Fitment Assistance
Call (240) 301-0095. Critical questions: (1) Year (2011-2024). (2) Engine (3.5L V6 / 3.7L V6 Sport / 2.0L EcoBoost / 2.7L EcoBoost Sport/ST - all may have different shutters). (3) Trim level. (4) FWD or AWD (usually same shutter). (5) Generation (1st gen 2011-2014 vs 2nd gen 2015-2024 - different designs). (6) Lincoln MKX cross-reference if applicable.
Condition and Inspection
- Function tested - motor responds to electrical signal
- Vanes move freely through full range of motion
- Position sensor functional - reports correct position
- Electrical connector intact - no corrosion or damaged pins
- Mounting brackets sound - not cracked or bent
- Plastic body intact - no major cracks
- All vanes present - none broken or missing
- Donor vehicle disclosed (year, engine, trim)
- Cleaned of road grime and debris
Why Buy from Us
- For Ford Edge active grille shutter (modern fuel economy feature)
- 2011+ active shutter era expertise
- Edge multi-generation knowledge (1st gen 2007-2014, 2nd gen 2015-2024)
- Ford US minivan exit context (Batch 58 vaz527 Freestar reference)
- Sister Lincoln MKX cross-compatibility (2007-2018)
- Lincoln Nautilus successor context (2019+)
- Active grille shutter function expertise
- PCM-controlled electronic operation knowledge
- Multi-vane plastic shutter assembly knowledge
- Electric actuator motor failure modes
- P0521/P0522 diagnostic code knowledge
- Engine-specific shutter variations (3.5L/3.7L/2.0L/2.7L EcoBoost)
- EcoBoost engine family knowledge (2.0L I4, 2.7L V6)
- Edge Sport/ST 2.7L EcoBoost performance variant context
- Aerodynamic drag reduction at highway speeds
- Engine warm-up benefit cold weather
- Function tested before shipping
- Donor vehicle disclosed
- Free shipping all 50 states, 15 day warranty
What is an active grille shutter?
An ACTIVE GRILLE SHUTTER (also called radiator air shutter, air dam shutter) is a MODERN FUEL ECONOMY FEATURE: (1) Definition - electronically controlled flaps/shutters located behind vehicle grille and in front of radiator that OPEN and CLOSE based on cooling demand. (2) Function: (a) Open at LOW SPEEDS (city driving, hot weather, A/C operation, towing) to allow maximum airflow through radiator/condenser for cooling. (b) Close at HIGH SPEEDS (highway cruising) to reduce aerodynamic drag from grille opening. (c) Closed during ENGINE WARM-UP (cold weather) to reduce cold air intake, helping engine reach operating temperature faster. (3) Fuel economy benefit - typical improvement: 1-2 MPG highway (most benefit at sustained highway speeds 55+ MPH). Helps meet stringent CAFE standards. (4) History in Ford lineup: Ford Fusion 2010 (first Ford application), Ford Edge 2011+ (this listing's vehicle), Ford Focus 2012+, Ford Escape 2013+, Ford F-150 2013+, Ford Mustang EcoBoost 2015+, most modern Fords now have active shutters. (5) Also used by other manufacturers: BMW, Audi, Mercedes, Chevy, GMC, Cadillac, Hyundai, Kia. Modern feature across luxury and mainstream brands. (6) Construction: multi-vane plastic shutter assembly (8-12 horizontal or vertical vanes), electric actuator motor with position sensor, electrical connector, mounting brackets. (7) Control: PCM (Powertrain Control Module) electronically controls based on signals: engine coolant temperature, vehicle speed, A/C clutch demand, intake air temperature, transmission fluid temperature. (8) Driver experience: most drivers don't notice shutters operating - silent automatic operation. Sometimes audible click when transitioning open/closed. (9) Reliability: generally 100,000+ miles, actuator motor wear is common failure mode.
How does active grille shutter improve fuel economy?
Active grille shutter improves fuel economy through AERODYNAMIC DRAG REDUCTION: (1) Aerodynamic drag fundamentals - air resistance increases EXPONENTIALLY with vehicle speed. At highway speeds (60+ MPH), drag accounts for 50-60% of total vehicle energy consumption. Even small drag reductions yield meaningful fuel economy gains. (2) Grille openings create drag - traditional fixed grilles let air enter engine bay, slow down, create turbulence, exit through engine bay creating significant drag. Modern vehicles' need for grille openings: cooling radiator/condenser when needed, engine air intake. (3) Active shutter closes grille at high speeds - eliminates engine bay air intake, smoother airflow over and around vehicle front, reduced drag, improved aerodynamic efficiency. (4) Quantified benefit: 1-2 MPG highway improvement typical, ~3-5% improvement in highway fuel economy, ~$60-120/year fuel savings at typical driving. (5) Beyond fuel economy: faster engine warm-up cold weather (better cold-start fuel economy and emissions), reduced under-hood noise at highway speeds, improved CAFE compliance helping manufacturer meet federal fuel economy standards. (6) When shutters open (lose benefit): city driving (low speed/high cooling), A/C demand, towing, hot ambient temperatures, climbing grades. (7) Optimization compromise: PCM constantly balances cooling needs vs aerodynamic benefit. Modern controls optimize multiple times per second based on real-time sensor data. (8) Modern engineering trends: variable shutters becoming standard on fuel-conscious vehicles. (9) For Ford Edge specifically: 2.0L EcoBoost (turbocharged) particularly benefits from active shutter because turbo engines run cooler under typical conditions allowing more closed time at high speeds.
What are the common Ford Edge active shutter failure modes?
Ford Edge active grille shutters have several common failure modes: (1) ACTUATOR MOTOR FAILURE (MOST COMMON): (a) Motor seizes after years of cycling (10,000s of cycles over vehicle life). (b) Motor burns out from continuous operation or stress. (c) Internal motor gears strip. (d) Motor stops responding to electrical signal. Symptom: shutters stuck open or closed, check engine light. (2) BROKEN VANES from impact damage: (a) Road debris (rocks, debris) breaks plastic vanes. (b) Deer/animal strikes damage vanes. (c) Parking lot impact (low-speed bumps). (d) Cold weather brittle plastic cracks. Symptom: visible broken vanes, reduced aerodynamic benefit, sometimes check engine light. (3) POSITION SENSOR ISSUES: (a) Sensor reports incorrect position to PCM. (b) Sensor wiring damage. (c) Internal sensor failure. Symptom: check engine light P0521/P0522, shutters may operate correctly but PCM doesn't know. (4) ELECTRICAL CONNECTOR CORROSION: (a) Water intrusion (rain, car washes). (b) Salt-belt area corrosion. (c) Connector pins corrode. (d) Wiring harness degradation. Symptom: intermittent operation, codes, sometimes complete failure. (5) FROZEN VANES IN WINTER: (a) Ice accumulates on vanes preventing movement. (b) Snow buildup. (c) Salt accumulation. Symptom: temporary stuck open or closed during winter, may resolve when warm. (6) PHYSICAL DAMAGE from front-end collision: (a) Even minor front impacts may damage shutter assembly. (b) Body shop must verify shutter function after collision repair. (7) NORMAL WEAR after 100,000+ miles or 8-10+ years. (8) DIAGNOSTIC CODES: P0521 (Active Grille Shutter B Stuck Open), P0522 (Active Grille Shutter B Stuck Closed). Modern scan tools can verify shutter position commanded vs actual. (9) Repair: replace shutter assembly (most cost-effective) vs individual component repair (often difficult, sealed actuator).
How is the Ford Edge active shutter different from a fixed grille?
Ford Edge ACTIVE GRILLE SHUTTER differs from FIXED GRILLE in fundamental design: (1) Fixed grille (pre-2011 Edge, older vehicles): (a) Static plastic/metal grille opening. (b) Always open to airflow. (c) No electronic components. (d) Cannot adjust based on conditions. (e) Aerodynamic compromise (always letting air in even when not needed). (f) Simpler, fewer failure points. (2) Active grille shutter (2011+ Edge): (a) Electronically controlled flaps behind grille. (b) Opens/closes based on conditions. (c) Electric actuator motor with PCM control. (d) Dynamically adjusts aerodynamics. (e) Improves fuel economy 1-2 MPG. (f) More complex, additional failure points. (3) Visual difference: hard to see from outside (active shutter is behind main grille opening). Some vehicles have visible shutters behind grille (Ford F-150). (4) Driver experience: active shutter mostly transparent - automatic operation, no driver input needed. Sometimes audible click when transitioning. (5) Maintenance: fixed grille requires no maintenance (occasional cleaning). Active shutter has additional failure modes (motor, sensor, electrical). (6) Cost: fixed grille assembly $100-300. Active shutter assembly $150-350+ new OE. (7) Aftermarket retrofit: NOT POSSIBLE - cannot retrofit active shutter to fixed grille vehicle (requires PCM programming, wiring harness, mounting points). (8) Modern manufacturer trend: increasing prevalence of active shutters across luxury and mainstream brands. Likely standard on most new vehicles within 5-10 years. (9) For repair/replacement: must replace with matching active shutter assembly (cannot substitute fixed grille). Verify year/engine/trim for proper match. (10) For DIY: active shutter replacement more complex due to electrical and programming requirements.
How is the Ford Edge related to Lincoln MKX?
Ford Edge and Lincoln MKX are SISTER VEHICLES sharing Ford's CDX platform: (1) Platform sharing: both built on Ford's CDX (formerly CD3) platform for unibody crossover SUVs. Same chassis, suspension, transmission, drivetrain. (2) Edge: Ford's mainstream mid-size crossover SUV (~$30-50K). MKX (2007-2018): Lincoln's luxury version of Edge (~$40-60K). (3) Differences (mostly cosmetic and trim): (a) Lincoln-specific grille design and exterior styling. (b) Luxury interior with leather, wood, premium audio. (c) Upgraded suspension tuning for ride comfort. (d) Lincoln-specific features (heated/cooled seats, advanced infotainment). (e) Premium audio (THX/Revel/Bose). (f) Different headlight/taillight design. (4) Shared components: engines (3.5L V6, 3.7L V6, 2.0L EcoBoost, 2.7L EcoBoost), transmissions (6-speed/8-speed automatic), drivetrain (FWD/AWD), active grille shutter, body structure, suspension. (5) Lincoln Nautilus 2019+: MKX renamed Nautilus (Lincoln rebranding effort), continuing Edge platform sharing. Modern Nautilus continues sharing components. (6) Production: Edge built in Oakville, Ontario, Canada. MKX/Nautilus same plant. (7) For parts - Lincoln MKX active grille shutter may interchange with Edge of same year/engine. Verify exact part number. Lincoln Nautilus 2019+ may also interchange. (8) Used market: Edge more common (mainstream sales volume). MKX/Nautilus less common but available. (9) Repair compatibility: Edge mechanics generally service MKX/Nautilus (same training, same parts). (10) For active grille shutter - if Edge-specific not available, MKX equivalent may work.
How do I replace a Ford Edge active grille shutter?
Ford Edge active grille shutter replacement is MODERATE DIY (~1-2 hours): (1) Tools: socket wrench set, screwdrivers, plastic pry tool (for trim removal), 10mm/13mm sockets, electrical contact cleaner. (2) Prep: park flat surface, parking brake, ignition off, key out of vehicle. (3) Battery: disconnect negative terminal (safety + PCM reset preparation). Wait 15 minutes. (4) Access shutter: most Ford Edges require removal of front grille or partial bumper cover. Steps: (a) Remove fasteners around grille edge (10-13mm bolts/screws). (b) Disconnect any clips. (c) Lift grille away from vehicle. (d) Some models require removing radiator support cover first. (e) Bumper cover removal may be required for some years (more complex). (5) Locate shutter: behind main grille opening, in front of radiator, mounted to vehicle frame/bulkhead. (6) Disconnect electrical: locate electrical connector on actuator motor, press release tab, pull connector off, inspect connector for corrosion. (7) Remove mounting bolts: usually 4-6 bolts holding shutter assembly to frame/brackets. Note positioning for new shutter. (8) Remove old shutter: slide out carefully, may need to maneuver around radiator/condenser. (9) Inspect new shutter: verify part number matches, verify all vanes intact, verify motor present, verify electrical connector matches. (10) Install new shutter: position in mounting brackets, install bolts hand-tight, verify alignment, torque to spec (typically 5-10 ft-lbs). (11) Connect electrical: push connector firmly until clicks, verify secure. (12) Reinstall grille/bumper. (13) Reconnect battery, allow PCM to relearn (drive several cycles). (14) Verify function: with engine running, watch shutters with grille off (if accessible) or use scan tool to monitor shutter position. Should open during cold start, close at highway speed (test drive). (15) Clear any diagnostic codes after relearn period.
What's the difference between EcoBoost and Duratec engines?
Ford EcoBoost and Duratec are different engine generations powering Ford Edge: (1) Duratec (older, pre-2015 Edge): (a) Ford's NATURALLY ASPIRATED V6 engine family. (b) Edge applications: 3.5L Duratec V6 ~265 HP (Standard 2007-2014), 3.7L Duratec V6 ~305 HP (Sport 2009-2014). (c) Design: aluminum block/heads, dual overhead cams, multi-port fuel injection. (d) Characteristics: smooth power, proven reliability, simpler design, less fuel economy. (e) Production: 2000s mainstream Ford V6 engine. (2) EcoBoost (modern, 2015+ Edge): (a) Ford's TURBOCHARGED direct-injection engine family. (b) Edge applications: 2.0L EcoBoost I4 ~245 HP (Standard 2015+), 2.7L EcoBoost V6 ~315-335 HP (Sport/ST 2015+). (c) Design: aluminum block/heads, turbo charging (1 or 2 turbos), direct injection, advanced engine management. (d) Characteristics: more power per displacement, better fuel economy than naturally aspirated equivalent, more complex, higher maintenance. (e) Production: 2010s+ Ford engine family across F-150, Mustang, Edge, Explorer, Focus. (3) Transition: Edge moved from Duratec V6 to EcoBoost I4/V6 with 2nd generation 2015+. Same vehicle, different engine technology era. (4) Performance comparison: 2.0L EcoBoost (~245 HP, turbo) similar power to 3.5L Duratec V6 (~265 HP, naturally aspirated) but better fuel economy. 2.7L EcoBoost V6 (~315 HP, twin-turbo) similar power to 3.7L Duratec V6 (~305 HP) but more torque and better fuel economy. (5) For active grille shutters - EcoBoost engines run cooler at typical loads (turbo not always boosting), allowing more closed shutter time at highway, more fuel economy benefit. Duratec V6 runs hotter under sustained load. (6) Different shutter designs: 2.0L EcoBoost, 2.7L EcoBoost, 3.5L Duratec, 3.7L Duratec all may have different shutter sizing/calibration. (7) For replacement - specify exact engine for correct shutter.
How does shipping work?
Free shipping all 50 US states. Ford Edge active grille shutter is moderate weight (~5-10 lbs) shipped in protective box. UPS or FedEx Ground typical (3-7 days transit) or freight for premium shipping. Good salvage donor pool from 2011+ Edge production combined with sister Lincoln MKX 2011-2018 and Lincoln Nautilus 2019+ cross-compatibility. Customer must specify: (1) Year (2011-2024). (2) Engine (3.5L V6 / 3.7L V6 Sport / 2.0L EcoBoost / 2.7L EcoBoost Sport/ST - different shutters). (3) Generation (1st 2011-2014 or 2nd 2015-2024 - different designs). (4) Trim level. (5) FWD or AWD (usually same shutter). Aftermarket Dorman/AC Delco shutters new $120-250 if used OE not preferred. Function tested before shipping. PCM relearn may be required after installation - typically self-learns over several drive cycles.
