Description

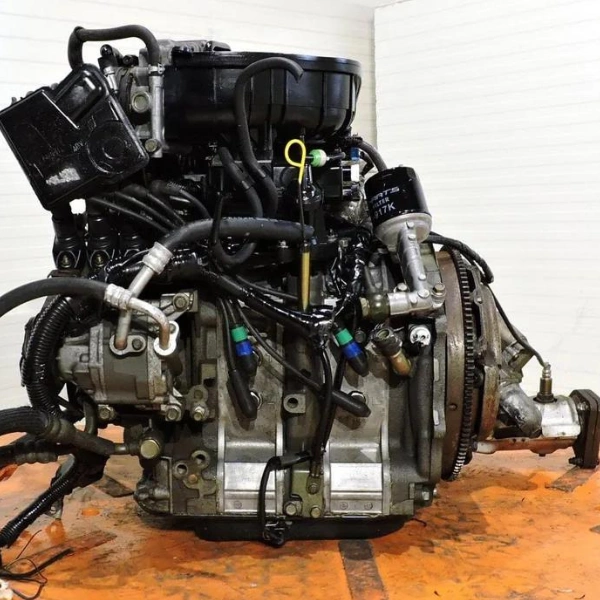

Mazda RX-8 Engine for Sale: Unleash the Power of Rotary
Get your Mazda RX-8 the engine it deserves. Replace the old worn motor with a quality used unit and get the beast roaring back on tracks and roads.
The Mazda RX-8 uses the 1.3L Renesis rotary engine , marketed simply as “Renesis” by Mazda. The engine gets its name from its rotary design, contrary to the conventional piston engines that dominate the automotive industry. A distinctive exhaust note, Variable Intake Geometry, Side Port Exhaust, and dual spark plugs per rotor all testify to the engine’s advanced technology. Do not miss out on this Mazda RX-8 engine for sale here at Vaz Auto Solutions.
Engine Overview: Mazda RX-8 Engine (13B-MSP Renesis)
The 13B-MSP Renesis rotary engine has a reputation among enthusiasts for its unique driving experience. The engine features a high-RPM capability of up to 9,000 RPM alongside a displacement of 1.3L. The engine comes in two variants:
| Variant | Output | Transmission | Production Years |
|---|---|---|---|
| High-Output (Renesis HP) | 238 HP at 8,500 RPM (early), 232 HP (2006+) | 6-speed Manual | 2003 to 2012 |
| Standard (Renesis Standard) | 197 to 212 HP at 7,000 RPM | 4-speed Automatic / 6-speed Auto | 2003 to 2012 |
The higher-output variant has a horsepower of up to 238 HP which is also the Mazda RX-8 engine for sale here. The 13B-MSP Renesis is a testimony to Mazda’s expertise in rotary engines. Engineered for the 2003 Mazda RX-8 launch, this RX-8 engine for sale was specially designed to fit the Mazda RX-8 model produced from 2003 to 2012.
Understanding the Renesis: What Makes It Different
The Renesis represents the final, most refined development of Mazda’s iconic 13B rotary family. To understand its place in rotary history:
| Generation | Era | Engine | Notes |
|---|---|---|---|
| 10A rotary | 1968-1974 | Original Mazda rotary | First production Mazda rotary (Cosmo Sport 110S) |
| 12A rotary | 1974-1985 | Early to mid RX-7 SA/FB | First mass-market rotary (1.1L equivalent) |
| 13B (peripheral port) | 1973-1985 | Mazda RX-3, RX-4, RX-7 SA late, RX-7 FB late | Original 13B with peripheral exhaust ports |
| 13B-T (turbo) | 1986-1991 | Mazda RX-7 FC | First turbocharged 13B |
| 13B-REW (twin sequential turbo) | 1992-2002 | Mazda RX-7 FD | Legendary twin-turbo, 255-276 HP |
| 13B-MSP Renesis (THIS LISTING) | 2003-2012 | Mazda RX-8 | Naturally aspirated, Multi-Side Port, 9,000 RPM redline |
The Renesis is the only naturally aspirated 13B since the late 1980s and is the only rotary engine ever to win the International Engine of the Year award.
Key Engineering: The Multi-Side Port (MSP) Innovation
The “MSP” in 13B-MSP stands for Multi-Side Port , the defining engineering innovation of the Renesis. Earlier 13B rotaries used peripheral exhaust ports (cut through the rotor housing), but the Renesis moved the exhaust ports to the side housings , the same location as the intake ports. This Multi-Side Port arrangement provides several benefits:
- Reduced Port Overlap: Less unburned fuel/air escaping into the exhaust during the overlap phase, dramatically improving emissions
- Better Low-End Response: Cleaner combustion at low RPM where peripheral-port designs suffered
- Modern Emissions Compliance: The Renesis can meet 21st-century emissions standards that earlier rotaries could not
- Improved Cooling: Exhaust heat distributed across larger side housing area rather than concentrated in rotor housing
- Improved Apex Seal Longevity: Reduced port-to-port heat differential helps apex seal life
The MSP design was critical to keeping the rotary engine viable in modern emissions environments.
Features of the Mazda RX-8 Renesis Engine
- Rotary Engine Design: The engine features a Wankel rotary design with a triangular rotor rotating in an epitrochoidal chamber , this makes the engine compact and lightweight (the Renesis weighs just 235 lbs, far less than any V6 or V8 of comparable output)
- Side Port Exhaust: The RX-8 engine for sale replaces peripheral exhaust ports with side exhaust ports, reducing port overlap and increasing efficiency
- High RPM Capability: The 13B-MSP features the capability of revving up to 9,000 RPM, providing a high-revving and responsive driving experience unmatched by piston engines
- Improved Apex Seals: The Renesis uses an improved 3-piece apex seal design with reduced wear characteristics compared to earlier rotaries
- Dual Spark Plugs per Rotor (4 plugs total): Two spark plugs per rotor (leading and trailing) for complete combustion across the long combustion chamber
- Variable Intake Geometry: Variable intake runner geometry optimizes airflow across the entire RPM range
- Variable Fresh Air Duct (VFAD): Dynamic intake tuning for both low-end and high-end performance
- Aluminum Construction: Aluminum rotor housings and side housings with iron rotors , compact and lightweight
- Naturally Aspirated: No turbocharger or supercharger , pure linear power delivery
- Premium Fuel Required: 91 octane minimum, 93 octane recommended for optimal performance
The RX-8 Production History
The Mazda RX-8 was produced 2003 to 2012:
- 2003-2005: Initial production with peak output 238 HP (high-output, US spec)
- 2006 (Power Down): US emissions regulations reduced rated output to 232 HP for high-output and 212 HP for standard
- 2009 (R3 / Series II): Mid-cycle refresh with updated styling and equipment
- 2012: Final production year, RX-8 discontinued
The RX-8 was unique among modern sports cars for its suicide doors (rear-hinged rear half-doors) that allowed easier access to the rear seats while maintaining a coupe-like profile. The combination of the Renesis engine and unique body design made the RX-8 a distinctive sports car.
Common Renesis Service Items (Honest Disclosure)
Honest disclosure of Renesis-specific service characteristics:
- Oil Consumption is Normal: Rotary engines burn a small amount of engine oil by design , the oil lubricates the apex seals as they trace the rotor housings. Expect 1 quart per 1,500-3,000 miles , this is NOT an engine flaw, this is how the engine works. Premix oil with fuel is recommended by many rotary specialists.
- Apex Seal Service: Apex seals are the rotary equivalent of piston rings. Renesis apex seals typically last 80,000-120,000 miles with proper maintenance. Replacement requires engine disassembly.
- Carbon Buildup: Carbon can accumulate on apex seal grooves at high mileage. Italian tune-ups (extended high-RPM driving) help prevent buildup.
- Battery Sensitivity: The Renesis is sensitive to battery condition due to high cranking demands. A weak battery is a common cause of starting issues.
- Premium Fuel Critical: 87 octane regular gas will cause knock and damage the engine. ALWAYS use 91 octane minimum.
- Spark Plug Service: Plugs typically last 30,000-40,000 miles , less than piston engines due to rotary combustion characteristics. Use proper Mazda specification plugs only.
- Warm-Up Required: Rotaries don’t reach operating temperature as quickly as piston engines. Drive gently for the first few minutes.
- No Lugging: Don’t drive at low RPM. The rotary likes to rev. Drive it like Mazda intended.
These characteristics are inherent to rotary engineering, not flaws of the specific engine.
Why Choose a Used Renesis Engine?
- Significant cost savings vs reman engine ($1,999 used vs $3,500-$7,500 reman plus core)
- Direct OEM fit for Mazda RX-8 (SE3P) 2003-2012
- High-output variant available with the iconic 238 HP rating
- Rotary heritage , the only naturally aspirated rotary in modern production
- Compact and lightweight , easily accommodated in restoration projects
- Foundation for rotary enthusiasm , rotary specialists can rebuild Renesis engines with upgraded internals for higher performance
Here at Vaz Auto Solutions, you’ll find this Mazda RX-8 engine for sale at the most reasonable price possible, with high-output vs standard variant identification, compression testing on both rotors, and proper rotary-specific inspection.
Vehicle Compatibility
Direct Fit:
| Mazda RX-8 (SE3P chassis) | 2003 to 2012, both manual transmission (high-output 238/232 HP) and automatic transmission (standard 197/212 HP) variants. All body styles and trim levels including base, Sport, Touring, Grand Touring, R3, and various special editions. |
|---|
Variant Identification Within RX-8 Application:
| 2003-2005 Manual | 6-speed manual, 238 HP high-output Renesis |
|---|---|
| 2003-2005 Automatic | 4-speed automatic, 197 HP standard Renesis |
| 2006-2008 Manual | 6-speed manual, 232 HP (power down for emissions) |
| 2006-2008 Automatic | 6-speed automatic, 212 HP standard |
| 2009-2012 R3 / Series II Manual | 6-speed manual, 232 HP |
| 2009-2012 R3 / Series II Automatic | 6-speed automatic, 212 HP |
Condition and Inspection
- Variant identified (high-output 232/238 HP manual vs standard 197/212 HP automatic)
- Year identified (2003-2005 pre-Power Down vs 2006+ vs 2009+ R3)
- Donor vehicle confirmed (Mazda RX-8 SE3P)
- Compression tested both rotors (3 chambers per rotor, 6 chambers total) at idle AND operating speed
- Compression standards: Front rotor 7.5+ kg/cm², Rear rotor 7.5+ kg/cm² minimum; differential between chambers within 1.5 kg/cm²
- Apex seal condition assessed (3-piece Renesis seals)
- Side seal condition documented
- Corner seal condition checked
- All 4 spark plugs tested (leading and trailing per rotor)
- Spark plug condition documented (rotary plugs wear differently than piston engine plugs)
- Fuel injection system tested (sequential multi-port)
- Variable intake geometry function verified
- Variable Fresh Air Duct (VFAD) function checked
- Oil pump operation verified
- Oil metering pump function tested (critical for apex seal lubrication)
- Coolant pump operation verified
- Miles from donor vehicle documented where available
- High-output vs standard variant correctly identified
- Compression testing on BOTH rotors (rotary-specific procedure)
- Apex seal, side seal, and corner seal condition documented
- All 4 spark plugs (leading and trailing per rotor) tested
- Oil metering pump function verified (critical for rotary longevity)
- Rotary engine specialist support team
- Free freight pallet delivery to all 50 states
- 15 day replacement warranty on internal defects
- Mazda RX-8 cross-reference and rotary service expertise
