Nissan SR20DET Engine for Sale | 2.0L DOHC Turbocharged Inline-4 for Silvia, 240SX, Drift Builds

Description

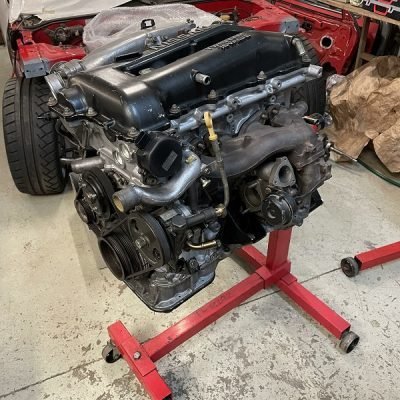

About the Nissan SR20DET Engine for Sale

The SR20DET is regarded as one of the best engines ever produced by the Japanese automobile giant, Nissan. A member of Nissan‘s SR family of engines, this Nissan SR20DET Engine for sale at Vaz Auto Solutions was produced from 1989 to 2002. It is a turbocharged version of the naturally-aspirated SR20DE engine and replaced the CA18DET in the Silvia lineup. The SR20DET became the defining engine of Japanese drift culture and remains one of the most popular engine swap targets worldwide.

The SR20DET’s combination of robust cast iron block, square 86 x 86mm bore and stroke, low 8.5:1 compression ratio (deliberately low to safely handle factory boost), and chain-driven DOHC valvetrain makes it both reliable in stock form and capable of significant power increases with proper tuning and supporting modifications.

Applications of the SR20DET Engine

• Nissan Silvia (S13, S14, S15): This series is the most notable and common application of the SR20DET. The engine offered an impressive power-to-weight ratio and excellent mechanical longevity, cementing the Silvia as a fan favorite. Variant breakdown: S13 Red Top (1989 to 1993, 205 hp T25 turbo), S14 Black Top (1993 to 1999, 220 hp T28 turbo with VTC), S15 Notch Top / Spec R (1999 to 2002, 250 hp T28 ball bearing turbo with VTC and revised internals).

• Nissan 180SX / 200SX / 240SX: Various markets received the SR20DET in fastback or coupe Silvia siblings. In Japan and Europe these came factory turbocharged. In North America, the 240SX came with the naturally-aspirated KA24DE, making the SR20DET swap into the 240SX one of the most common JDM swaps performed in the United States. The drift community made this swap iconic.

• Nissan Pulsar GTI-R (N14): A compact hatchback equipped with the SR20DET in transverse-mount, all-wheel-drive configuration to homologate Nissan’s Group A rally entry. Detuned in transverse form but with a unique top-mount intercooler.

• Classic Datsun Vehicles: Some fans swap SR20DET engines into older Datsun 510s and 240Zs to give those classics modern turbo power.

• Toyota AE86: The lightweight AE86 with its balanced chassis becomes immensely satisfying with an SR20DET swap, creating a turbocharged drift weapon.

• Mazda MX-5 Miata: The lightweight Miata pairs perfectly with the SR20DET, creating a sleek and powerful sports car configuration.

• Kit Cars: Compact dimensions and high power output make the SR20DET a favorite for kit cars seeking the right power-to-reliability ratio.

Features of the SR20DET Engine

• Turbocharger: The defining SR20DET feature. Variants used different Garrett turbos: T25 on the S13 Red Top, T28 on the S14 Black Top, and T28 ball bearing on the S15 Notch Top. The turbo is the primary tuning lever for power increases.

• Intercooler: Side-mount on the S13 / S14, top-mount on the Pulsar GTI-R. The intercooler cools compressed air from the turbo, increasing density and combustion efficiency.

• Multi-Point Fuel Injection (MPFI): Sequential electronic fuel injection delivers fuel precisely to each cylinder for optimal combustion and fuel economy.

• Engine Control Unit (ECU): Nissan’s stock ECU is reflashable / replaceable with aftermarket units like Apexi Power FC, Haltech, or AEM for tuning beyond stock parameters.

• DOHC: Dual overhead camshafts increase airflow and provide accurate valve control over the entire RPM range.

• 4-Valve per Cylinder: 16 valve head increases volumetric efficiency for better breathing and higher RPM operation.

• VTC (Variable Timing Control): S14 and S15 variants added Nissan’s VTC system to the intake camshaft, advancing or retarding timing based on engine RPM and load for improved low-end torque and high-RPM power.

• Oil Squirters: Piston oil squirters cool piston crowns under boost, critical for preventing detonation and extending piston life under high-power applications.

• Cast Iron Block: The cast iron deck construction is a key reason the SR20DET handles aftermarket power so well. With proper tuning, supporting mods, and forged internals, SR20DETs routinely make 400 to 600+ hp on stock blocks.

• Forged Components (Some Variants): S15 Spec R engines came with forged internals from the factory, enabling higher boost levels with stock-bottom-end reliability.

• Power Output: Stock factory output ranges 205 hp (S13 Red Top) to 250 hp (S15 Notch Top), with peak torque 210+ lb-ft. Maximum factory RPM 7,000 to 7,500 depending on variant. Aftermarket builds routinely exceed 400 hp with bolt-ons and tune.

SR20DET Variant Identification

This is the most important specification consideration when buying an SR20DET. The three primary Silvia variants are easily identified by the color of the valve cover:

We confirm variant before shipping. Tell us which variant your build needs.

Signs You Need a Replacement SR20DET

• Loss of compression on one or more cylinders

• Head gasket failure (a known SR20DET issue under prolonged heavy boost)

• Cracked piston ring lands (common on heavily modified, untuned, or detonation-damaged engines)

• Excessive blowby past piston rings

• Connecting rod knock under load

• Turbo failure that has damaged the engine internals (oil contamination, bearing damage)

• Donor 240SX has been totaled or sold for parts and the engine is being moved to a new chassis

• Drift, time attack, or track build requiring a fresh starting point

• Existing SR20DET high-mileage and showing wear

Known SR20DET Issues We Inspect Before Shipping

• Head gasket condition: Heavy boost and detonation events can blow head gaskets. We pressure test and visually inspect.

• Piston ring land cracks: Damaged ring lands from detonation or over-boost are a common failure. Inspected via leakdown and bore scope where possible.

• Connecting rod bearing wear: Listened for during run test where engine is run-tested.

• Turbo condition: When turbo is included with engine, condition documented. Often turbo is sold separately as it has a different service life than the engine.

• VTC actuator function: S14 and S15 variants have VTC system tested for proper engagement.

• Oil consumption: Assessed by visual inspection and compression test patterns.

• Variant authentication: Confirmed by valve cover color, cam profile, ECU stamp, and block code.

What Is Included, What Is Not Included

SR20DET Myth Busters

• Myth: The SR20DET is unreliable.

• Reality: While any engine can have issues if not properly maintained or modified, the SR20DET is a robust and reliable powerplant when cared for correctly. With routine maintenance and proper tuning, it provides years of trouble-free performance. Its reputation for reliability is evidenced by its widespread use in motorsports and enthusiast builds.

• Myth: The SR20DET is expensive to maintain.

• Reality: Like any performance engine, maintenance costs vary depending on usage and modifications. The SR20DET’s popularity means wide availability of aftermarket and OEM parts at various price points, making maintenance relatively affordable compared to other high-performance engines. Its simple design and widespread enthusiast knowledge can reduce labor costs for repairs and maintenance.

• Myth: The SR20DET is difficult to tune.

• Reality: While tuning any engine for optimal performance requires expertise, the SR20DET benefits from vast aftermarket support and a wealth of community knowledge. With the right tools and resources, tuning is straightforward, especially with the availability of plug-and-play engine management systems (Apexi Power FC, Haltech, AEM, etc.) and proven tuning maps. Many enthusiasts have successfully tuned their SR20DETs to impressive power levels while maintaining reliability.

• Myth: The SR20DET is not suitable for daily driving.

• Reality: While the SR20DET is often associated with high-performance applications and motorsports, it can also be a practical daily driver. Turbocharged power delivery provides ample torque for city and highway driving, and reliability and fuel efficiency make it a viable option for daily commuters. With proper tuning and maintenance, the SR20DET offers a balance of performance and practicality.

Vehicle Compatibility

The SR20DET fits the following chassis directly:

Compatible swap chassis (with appropriate mounts and harness): Toyota AE86, Mazda MX-5 Miata, Datsun 510, Datsun 240Z, kit cars, and many other lightweight RWD platforms.

Condition and Inspection

Every used SR20DET we ship goes through this process:

• Compression test across all 4 cylinders, pressure per cylinder recorded

• Head gasket pressure tested (known failure point under boost)

• Variant authenticated (Red Top, Black Top, Notch Top) by valve cover color, cam profile, and block code

• VTC system function verified (S14 and S15 variants only)

• Turbocharger condition documented (when included with engine)

• Donor application photographed and documented

• Approximate mileage documented when verifiable

Where mileage is verified, it is shared. Where mileage cannot be confirmed, we disclose openly before payment.

Why Buy From Vaz Auto Solutions

• All 4 cylinders compression tested, results before you pay

• Head gasket pressure tested (known SR20DET failure point)

• Variant authenticated (Red Top, Black Top, Notch Top)

• VTC system verified on S14 and S15 variants

• Turbocharger condition documented when included

• Donor application documented

• Free freight pallet to all 50 states, no hidden fees

• No core charge, keep your old engine

• 15 day replacement warranty on internal defects

• JDM and drift-experienced support team on the phone
