Description

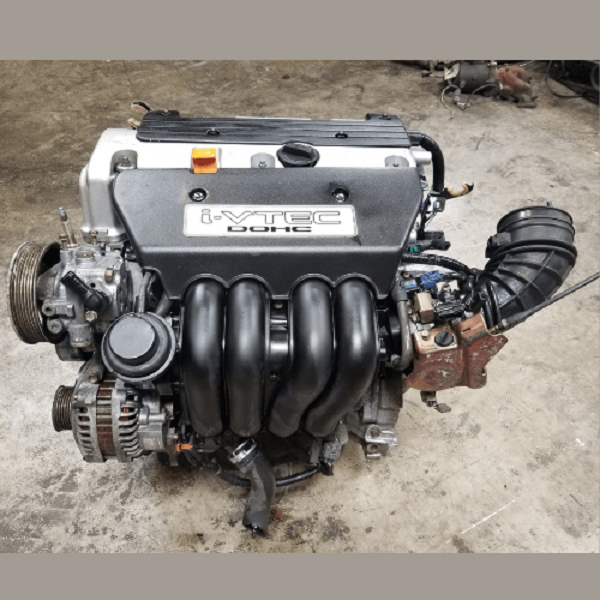

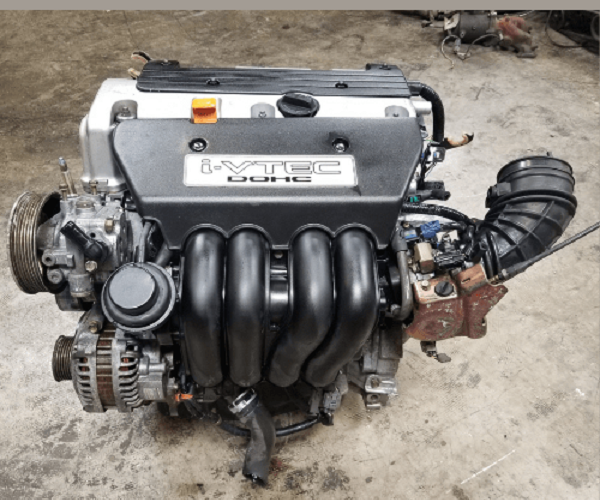

About the Honda K20A Engine
The Honda K20A is the high-output Type R variant of Honda’s K-series 2.0L DOHC family, originally fitted to the JDM Honda Civic Type R (EP3 and FD2) and the JDM Honda Integra Type R (DC5). It is NOT the same engine as the US-spec K20A2 (Acura RSX Type S), K20A3 (Civic Si EP3, RSX base), K20Z1 (later RSX Type S), or K20Z3 (Civic Si FA / FG). The K20A has unique high-compression pistons, more aggressive cams, hand-finished ports on early units, and 11.7:1 compression. It is the definitive K-series performance engine.
The K20Z3 Civic Si Engine is What Most US Buyers Search For
While the JDM K20A is the highest-output K-series engine, the K20Z3 is the most-searched K-series engine for US buyers. The K20Z3 powered the 2006 to 2011 Honda Civic Si in both Sedan (FA5) and Coupe (FG2) body styles, producing 197 horsepower at 7,800 rpm and 139 lb-ft of torque, with an 8,000 rpm redline and Honda’s i-VTEC variable valve timing on intake cams. K20Z3 buyers are typically Civic Si owners replacing a worn original or builders doing a Civic Si engine swap into an older chassis. We carry K20Z3 units with verified compression and engine code photographed before shipping.
Important Engine Code Distinction You Must Understand Before Buying
The “K20A” code in JDM applications refers specifically to the Type R high-output 2.0L. In US-market applications, Honda used several similar but different codes for K-series 2.0L engines: K20A2 in the 2002 to 2004 Acura RSX Type S, K20A3 in the 2002 to 2005 Civic Si EP3 and RSX base trim, K20Z1 in the 2005 to 2006 Acura RSX Type S, and K20Z3 in the 2006 to 2011 Civic Si FA and FG. None of these US-market engines have the same internals, cams, or compression as the JDM K20A Type R. We confirm the engine code for every unit we ship.
Why Honda Builders Buy a K20A or K20Z3
For US-market K-swap projects targeting the highest naturally aspirated power on stock internals, a JDM K20A Type R is the foundation. For Civic Si owners replacing a worn unit, a K20Z3 from a verified donor is the right choice. For RSX Type S owners, the K20A2 or K20Z1 from the same chassis is the like-for-like replacement. The square 86 x 86 bore and stroke gives every K20 its trademark willingness to rev, and the i-VTEC cam phasing on the intake side gives a broader powerband than the older B-series VTEC engines.
Signs You Need a Replacement K20 (or You Are Considering a K-Swap)
- Knock or rattle under load, rod or main bearing wear on high-mileage units
- Loss of compression on one or more cylinders, head gasket or ring wear
- Excessive blue smoke, valve seal wear or piston ring wear
- i-VTEC cam phaser noise or codes, oil control valve issue
- Coolant in oil, head gasket failure (typically post-overheat event)
- Building a K-swap project (Civic EG, EK, EF, DC2 Integra, S2000 hybrid)
- Upgrading from a K20A3 to a K20Z3 or K20A Type R for higher output
Known K20 Issues We Inspect Before Shipping
- Compression on all 4 cylinders, the leading indicator of overall condition
- i-VTEC cam phaser operation tested, oil control valve function verified
- Timing chain condition inspected (the K-series uses a maintenance-free chain, not a belt)
- Head gasket integrity, especially on units with previous overheating history
- Engine code photographed and verified (K20A, K20A2, K20A3, K20Z1, or K20Z3)
- Donor application documented (EP3, FD2, DC5, RSX, Civic Si)
What Is Included, What Is Not Included
| Item | Details |
|---|---|
| INCLUDED | Long block: block, crankshaft, rods, pistons, camshafts, head, valve train, oil pan, valve cover, timing cover, harmonic balancer. i-VTEC oil control valve where present. |
| NOT INCLUDED | Intake manifold (sometimes included, varies by donor), throttle body, ECU, harness, alternator, starter, A/C compressor, power steering pump, flywheel, motor mounts. |
| Fluids | Drained before shipping. Refill with Honda-spec 5W-30 motor oil, full synthetic recommended. |
| Core Note | No core charge. You are not required to return your old engine. |
Vehicle Compatibility
The Honda K20 family was a direct fit in the following vehicles:
| Vehicle | Compatibility |
|---|---|
| JDM Honda Civic Type R EP3 | 2001 to 2005 (K20A) |
| JDM Honda Civic Type R FD2 | 2007 to 2011 (K20A, Japan only sedan) |
| JDM Honda Integra Type R DC5 | 2001 to 2006 (K20A, Japan only) |
| Acura RSX Type S | 2002 to 2004 (K20A2), 2005 to 2006 (K20Z1) |
| Acura RSX Base | 2002 to 2006 (K20A3) |
| Honda Civic Si EP3 | 2002 to 2005 (K20A3 USDM) |
| Honda Civic Si FA5 Sedan | 2006 to 2011 (K20Z3, the volume Civic Si engine) |
| Honda Civic Si FG2 Coupe | 2006 to 2011 (K20Z3) |
| Honda CR-V | 2002 to 2009 (K24A1, K24A4 – sister K-series engine) |
Common K-swap applications: K20 swap into Civic EG (1992 to 1995), Civic EK (1996 to 2000), Civic EF (1988 to 1991), DC2 Integra (1994 to 2001), S2000 (with custom mounting). With the right swap mounts (Hasport, Innovative Mounts, Hybrid Racing), wiring (KPRO or AEM Infinity), axles, and transmission, a K20 swap is one of the most documented Honda swaps.
Condition and Inspection
Every used K20 we ship goes through this process:
- Compression test across all 4 cylinders, pressure per cylinder recorded
- i-VTEC cam phaser operation and oil control valve verified
- Timing chain condition inspected
- Visual inspection of block deck, head surfaces, and oil galleries
- Engine code photographed (K20A, K20A2, K20A3, K20Z1, or K20Z3)
- Donor application (EP3, FD2, DC5, RSX, Civic Si) documented
- Approximate mileage from donor disclosed where available
Where donor mileage is verified, it is shared. Where mileage cannot be confirmed, we disclose openly before payment. Full inspection notes and photographs available on request.
Why Buy From Vaz Auto Solutions
- All 4 cylinders compression tested, results before you pay
- Engine code photographed and confirmed (K20A Type R, K20A2, K20A3, K20Z1, or K20Z3)
- i-VTEC cam phaser and oil control valve operation tested
- Timing chain condition verified (maintenance-free K-series chain)
- Donor application documented (EP3, FD2, DC5, RSX, Civic Si)
- K20Z3 Civic Si specific inventory tracked for FA5 and FG2 applications
- Free crated freight to all 50 states, no hidden fees
- No core charge, keep your old engine
- 15 day replacement warranty on internal defects
- Honda K-series experienced support team on the phone
Kenji M. –
Built a K-swap for my Civic EG and Vaz had a verified JDM K20A from a DC5 Integra Type R donor. Casting numbers photographed before purchase, compression came back at 215 to 220 across all 4. Engine fired on the second crank with my Hondata KPRO tune. Civic dynos at 240 wheel hp and revs to 8,400 like nothing. Authentic Type R, exactly what I paid for.
Brandon P. –
Original K20Z3 was burning oil at 175,000 miles. Vaz had a clean K20Z3 with verified compression and inspected i-VTEC operation. Engine code photographed and confirmed K20Z3 before shipping. Drop-in install, no surprises, Si runs perfect. Saved me a fortune over a Honda dealer engine swap.
Christopher (verified owner) –
fter installing the Honda K20A engine in my car, I’ve been thoroughly impressed with its performance. The engine delivers ample power and torque across the rev range, providing a thrilling driving experience. Whether I’m accelerating from a standstill or overtaking on the highway, the K20A engine responds promptly and delivers smooth power delivery. Additionally, the engine’s fuel efficiency is commendable, ensuring I can enjoy spirited driving without breaking the bank at the gas pump. Overall, I’m extremely satisfied with my purchase and would recommend the Honda K20A engine to fellow enthusiasts.
Joshua (verified owner) –
Upgrading to the Honda K20A engine has been a game-changer for my car’s performance. The engine’s high-revving nature and VTEC system deliver exhilarating performance, making every drive an enjoyable experience. Whether I’m navigating city streets or hitting the track, the K20A engine provides plenty of power and agility to tackle any situation. Furthermore, the engine’s reliability and durability give me peace of mind knowing that it will withstand the test of time. Overall, I’m thrilled with my purchase and would recommend the Honda K20A engine to anyone looking to take their car to the next level.
