Isuzu 4JB1 2.8 Non-Turbo Diesel Engine for Sale | 2.771L 4-Cylinder Direct Injection Diesel | NPR / NQR / Trooper / D-Max / Rodeo Direct Fit

Description

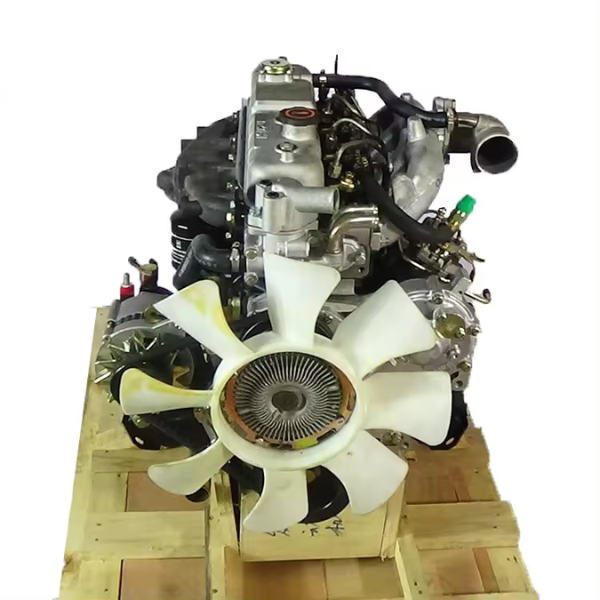

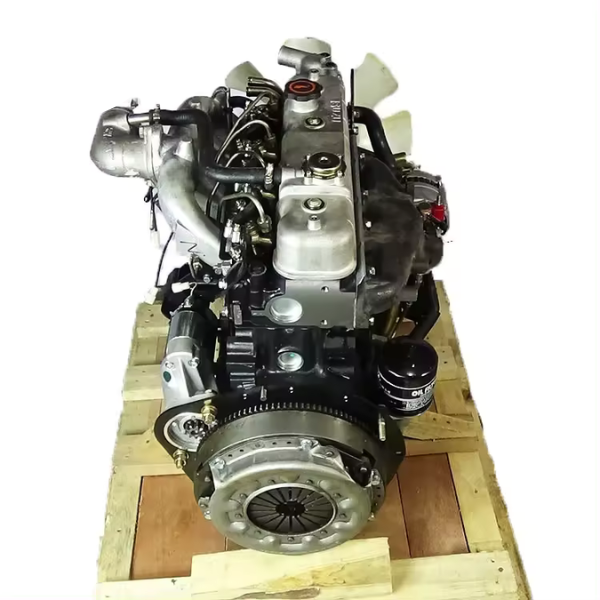

Used Isuzu 4 Cylinder Diesel Engine

The Isuzu 4JB1 2.8 non-turbo engine is quite popular due to its durability and has been used in a wide range of vehicles, light trucks, industrial machinery, and emerging-market commercial applications. It is chosen because of the strong cast iron construction, the simplicity of mechanical fuel injection, and the proven Isuzu diesel engineering that makes it fit for use in light commercial vehicles, pickup trucks, SUVs, and industrial applications. Over the years, the 4JB1 has become known for being very easy to service and very reliable. The absence of a turbocharger on the non-turbo 4JB1 variant means linear power output with strong low-end torque, ideal for industrial applications and light commercial duty cycles where peak power matters less than dependable, all-day operation. As an on-road or off-road diesel, the Isuzu 4-cylinder diesel engine continues to be highly reliable for anyone in need of a 2.8L diesel.

About the Isuzu 4JB1 2.8 Non-Turbo Engine

The Isuzu 4JB1 2.8 Non-Turbo engine is a robust and reliable 2.8L 4-cylinder diesel engine known for its efficiency and longevity. Primarily used in light commercial vehicles, SUVs, and industrial machinery, this engine is a testament to Isuzu’s diesel engineering excellence. The 4JB1 has been in continuous production since 1985, with the basic architecture remaining largely unchanged across decades of refinement. This continuity has produced one of the most globally distributed 4-cylinder diesel engines in commercial use, with a parts and service support network that spans markets across Asia, Africa, Australia, South America, and parts of Europe.

The 4JB1 Family: Three Variants

The 4JB1 family includes three main variants, all sharing the same fundamental architecture but differing in aspiration:

Key Features of the Isuzu 4 Cylinder Diesel Engine

• Direct Injection System: Direct injection of fuel into the combustion chamber improves fuel efficiency and power output compared to indirect-injection (IDI) designs.

• Cast Iron Construction: The engine block is cast iron for strength, durability, and the ability to withstand the high compression pressures of a 21.5:1 compression ratio diesel.

• Low Noise and Vibration: Engineering reduces noise and vibration for improved operator comfort.

• EGR System (Exhaust Gas Recirculation): On later production variants, EGR helps reduce emissions while maintaining engine efficiency.

• Cold Start Capability: Engineered to operate reliably in freezing conditions with proper glow plug system.

• Integrated Oil Cooler: Helps control engine oil temperature, maintaining lubricant properties and extending engine life.

• High Torque at Low RPM: Strong tractive force and torque at lower rpm makes the 4JB1 ideal for industrial and commercial applications where pulling force matters more than peak horsepower.

• Long Maintenance Intervals: Long intervals between service points reduce both time and cost of fleet maintenance.

• Laminated Cylinder Head: Enhances thermal transmittance and durability under sustained high-load operation.

• Single Overhead Camshaft (SOHC): The 4JB1 uses a SOHC design with 2 valves per cylinder, providing reliable valve actuation with minimum parts count. Note: the 4JB1 is SOHC, NOT DOHC, contrary to some published descriptions.

• Low Friction Piston Rings: Reduces friction losses, improving fuel economy and component longevity.

• Closed Crankcase Ventilation System: Helps maintain clean engine oil and reduces emissions.

• Mechanical Fuel Injection Pump: Most 4JB1 variants use a Bosch-style mechanical inline injection pump, providing rebuilder-friendly serviceability without electronic complexity.

• Common Rail Fuel System (newer variants): Some later production 4JB1 variants for current-emissions markets use high-pressure common rail injection. Older variants use mechanical injection.

Isuzu 4JB1 2.8 Non-Turbo Engine Fits

The 4JB1 has been installed in a wide range of Isuzu and partner-brand vehicles:

Light Commercial Vehicles:

• Isuzu NPR / NQR / NPS series trucks (light-medium commercial in international markets)

• Isuzu D-Max pickup trucks (lower-spec markets)

• Isuzu Faster (TF series) pickup

Off-Road Vehicles:

• Isuzu Trooper (also called Isuzu Bighorn in Japan)

• Isuzu Rodeo

• Holden Rodeo (Australia, GM-Isuzu collaboration)

• Holden Frontera

Agricultural Equipment:

• Various tractors with Isuzu-sourced engines

• Combine harvesters (e.g., Kubota combines with Isuzu engines)

• Other agricultural machinery

Industrial Equipment:

• Stationary generators (e.g., Kohler generators with Isuzu engines)

• Air compressors (e.g., Sullair compressors)

• Forklifts

• Welders

Marine Applications:

• Small commercial fishing boats

• Pleasure craft marine propulsion units

• Workboats

Stationary Power Units:

• Generac standby generators

• Irrigation pumps

• Construction site power

Condition of Isuzu 4JB1 2.8 Non-Turbo Engine

Our Isuzu 4JB1 2.8 Non-Turbo engines for sale are pre-owned but rigorously inspected. Each engine comes with a detailed report on its condition including variant identification, donor application, compression test results, and visual inspection findings. This ensures you get a reliable product matched to your specific application.

Comparison with New Engines

While new 4JB1 long blocks can cost upwards of $5,800 to $7,800+ for industrial and emerging-market applications, our used engines provide an economical alternative without compromising on performance for restoration, repair, and industrial replacement use cases.

Maintenance Tips for Isuzu 4JB1 2.8 Non-Turbo Engines

To ensure longevity and optimal performance, adhere to the following:

• Regular oil changes with diesel-rated engine oil (Isuzu-approved or equivalent)

• Routine inspections of fuel filter, air filter, and cooling system

• Periodic servicing of mechanical injection pump and injectors (most 4JB1 variants use mechanical injection, which is rebuilder-friendly)

• Replacement of wear-and-tear parts like belts, hoses, and seals at appropriate intervals

• Cooling system service every 30,000-50,000 miles to maintain coolant condition and prevent corrosion

Signs You Need a Replacement 4JB1

• Loss of compression on one or more cylinders

• Excessive blue/black smoke under load

• Connecting rod or main bearing knock

• Cylinder head crack or warpage

• Donor Trooper, Pickup, or commercial vehicle totaled or retired

• Mechanical injection pump failure beyond economical repair

• Industrial application requiring replacement engine for continued operation

Vehicle Compatibility

Condition and Inspection

• Variant confirmed (4JB1 non-turbo, NOT 4JB1-T or 4JB1-TC)

• Donor application documented (NPR/NQR, Trooper/Bighorn, D-Max, Rodeo, industrial)

• All 4 cylinders compression tested

• Mechanical fuel injection pump condition documented

• SOHC top-end inspected

• Cylinder head and valve train condition documented

• Glow plug system function verified

• Cooling system inspected

• Block visual inspection

• Variant confirmed (non-turbo 4JB1 specifically)

• Donor application documented

• All 4 cylinders compression tested

• Mechanical fuel injection pump assessed

• SOHC top-end inspected

• Cooling system inspected

• Free standard freight to all 50 states

• 15 day replacement warranty on internal defects

• Isuzu-diesel-experienced support team on the phone
