Honda K20Z3 Engine for Sale | 8th Generation Civic Si 2.0L i-VTEC Inline-4 | 197 HP, 8,000 RPM Redline

Description

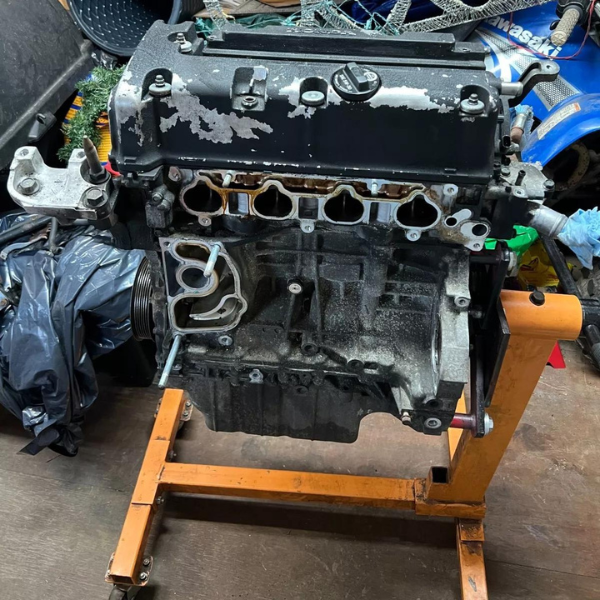

Long Lasting K20Z3 Engine for Sale

The K20Z3 engine is a high-performance, naturally aspirated Inline-4 engine from Honda’s legendary K-series. Known for its DOHC i-VTEC system, it delivers strong high-rpm power and the engaging high-revving driving character that defines Honda performance. Lightweight aluminum construction, this K20Z3 engine for sale is favored for its reliability and tunability, found in the iconic 8th generation Honda Civic Si and related K-series performance models.

The K20Z3 in the Honda K-Series Family

The K20Z3 is part of Honda’s K-series engine family, which began in 2001 and includes some of the most iconic Honda performance engines ever produced:

Features of the K20Z3 Engine

• DOHC i-VTEC System: The K20Z3 features Honda’s i-VTEC (intelligent Variable Valve Timing and Lift Electronic Control) on the intake camshaft. The i-VTEC system varies valve timing and lift profile based on engine RPM, delivering strong low-end torque AND high-rpm power without compromise between the two operating ranges.

• High-Revving Nature: The K20Z3 features an 8,000 RPM redline with peak power at 7,800 RPM, the kind of high-rpm operating range that has defined Honda performance engines for decades. The aluminum rotating components and precise valvetrain control enable consistent high-rpm operation without component fatigue.

• Aluminum Construction: Both the engine block and cylinder head are aluminum, keeping the engine lightweight (approximately 245 lbs dry) and improving the Civic Si’s front-end weight distribution and handling characteristics.

• Free-Flowing Exhaust Manifold: The K20Z3 uses a 4-into-1 stainless steel exhaust manifold designed to minimize back pressure and improve exhaust scavenging for better high-rpm breathing.

• High-Flow Intake System: The intake system is engineered for high air volume to the combustion chambers, particularly important at the engine’s high redline operating range.

• Optimized Cam Profiles: The intake camshaft (where i-VTEC operates) and exhaust camshaft profiles are selected to maximize power and efficiency across the operating range.

• Balanced Crankshaft: The internally balanced crankshaft delivers smooth operation at the engine’s high redline.

• High Compression Ratio: The 11.0:1 compression ratio improves thermal efficiency and contributes to the engine’s strong specific power output.

• Multi-Point Fuel Injection (MPFI): Honda’s PGM-FI system delivers precise fuel control for each cylinder, supporting both efficiency and performance.

• Sport-Tuned ECU: The factory Honda ECU is calibrated for the Civic Si’s sporty character with optimized throttle mapping, fuel curves, and ignition timing.

K20Z3 Engine Fits

• Acura CSX Type-S (Canadian Acura sedan, equivalent to Civic Si in the US)

• Acura TSX (some configurations)

• Honda Civic Si 8th generation (2006-2011 FA5 coupe and FG2 sedan) , the dominant K20Z3 application

• Honda Civic Type R FD2 (some markets used K20Z3 variants)

• Honda Accord Euro R (Japanese market sedan)

Condition and Usage

Our K20Z3 engines for sale are rigorously inspected to ensure top performance. Each unit undergoes a thorough check to confirm it meets our high standards for reliability and efficiency:

• Donor vehicle identification (Civic Si, Acura CSX Type-S, etc.)

• All 4 cylinders compression tested

• i-VTEC operation verified

• VTC (Variable Timing Control) actuation confirmed

• Cylinder head and top-end visual inspection

• Oil pressure within spec

• Mileage documented where verifiable

Legal and Compliance Information

Our K20Z3 engines for sale comply with all relevant federal emission regulations for engine swaps in 49 states. California Air Resources Board (CARB) compliance requires additional verification for California swap applications; consult your local emissions authority before ordering for California use.

Signs You Need a Replacement K20Z3

• Loss of compression on one or more cylinders

• i-VTEC failure (locked in low or high cam profile)

• Oil consumption excessive

• Connecting rod knock or main bearing knock

• Cylinder head crack or warpage

• Donor Civic Si totaled or retired

• Performance swap project (turbo conversion base, K-swap into older Civic)

Common K20Z3 Maintenance Considerations

• Oil service: Use Honda-approved 5W-30 synthetic oil; change every 5,000-7,500 miles for street use

• VTC actuator: A known K-series service item; replace at 80,000-120,000 miles to prevent the characteristic startup rattle

• Timing chain: K-series uses a timing chain (no belt service); chain stretches at very high mileage

• Valve adjustment: Periodic valve clearance check per Honda service interval

• Spark plugs: NGK iridium plugs per Honda spec, change every 60,000-100,000 miles
