Description
About This Transmission

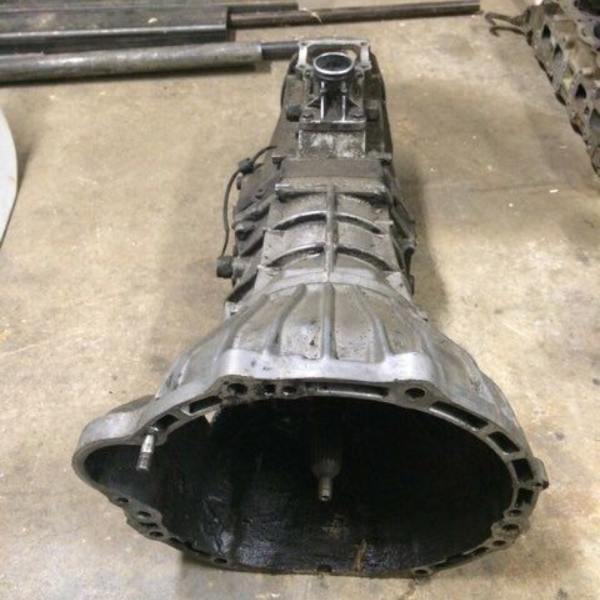

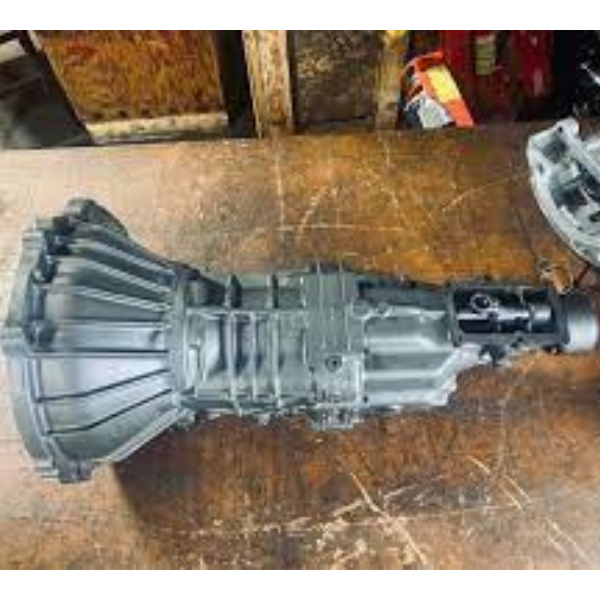

The Toyota W56 is a 5-speed fully synchronized manual transmission built by Aisin Seiki and used in the Toyota Hilux Pickup (sold as the Toyota Pickup in North America) and Toyota 4Runner from 1985 through 1995. It is a member of Toyota's W-series transmission family- all-aluminum case units that are external and internal variations of the same basic architecture. The W56 is distinguished from the W55 passenger car transmission by its lower 1st and 2nd gear ratios, designed to give a loaded truck more pulling power from a stop.
The W56 is particularly well documented in the off-road community due to Marlin Crawler's development of the W56-A through W56-E naming system. Marlin Czajkowski, CEO of Marlin Crawler Inc., identified five major design changes across the W56's production life and assigned letter suffixes to each generation. The W56-A (1985 only) differs from the W56-B (1986 to 1988), which differs from the W56-C (1989 to 1991), and so on. This system matters for rebuilds and upgrades because some internal components are not interchangeable across generations.
The W56 has a devoted following in the Toyota truck and 4WD community for its durability, simplicity, and ease of service. Clean used W56 units are increasingly sought after as the 1985 to 1995 Pickup and 4Runner population ages, making a gear-tested, variant-documented unit a significant find for any restoration or repair project.
Signs You Need a Replacement Transmission
- Grinding shifting into 1st or 2nd gear- synchronizer wear on the two most-used gear transitions
- Transmission pops out of 5th gear under light throttle- worn 5th gear detent or synchronizer ring
- Difficulty selecting reverse- reverse synchronizer or shift rail wear
- Oil leaks at the front seal or tail housing- aged seal deterioration common on 30-year-old transmissions
- Whining noise at highway speeds that increases with vehicle speed- 5th gear or output bearing wear
- Slipping out of 4WD range (4WD versions)- transfer case issue, not transmission internal- but confirm before diagnosing W56
Known Problems With This Transmission
- 2WD vs 4WD case incompatibility: The 2WD and 4WD versions use completely different rear cases. Installing a 4WD W56 in a 2WD application requires significant modification and vice versa. We confirm this configuration before every order- the most common W56 sourcing error.
- Marlin generation differences: Some internal components (particularly synchronizer assemblies and shift forks) differ between W56 generations. For a rebuild using original specifications, knowing the generation matters. We identify the generation where determinable from the unit.
- 5th gear synchronizer wear: The 5th gear synchronizer is the most common W56 wear point. Trucks that have done extensive highway mileage at sustained 55 to 75 mph frequently show wear here before lower gears show any problems. We specifically test 5th gear engagement before shipping.
- Fluid compatibility: Toyota recommends specific fluids for the W56- using incorrect gear oil can damage the synchronizers. We note fluid type requirements on every order.
- External shift linkage wear: The shift lever connection on aged W56 units can develop slop causing imprecise gear selection. We inspect external linkage components before shipping.
Toyota W56 Generations- Marlin Crawler Nomenclature
Marlin Czajkowski of Marlin Crawler Inc. identified 5 major design generations in the 4WD W56 production run:
| Generation | Years | Key Notes |
|---|---|---|
| W56-A | 1985 only | First year W56. Some unique internal components specific to 1985. Least common. |
| W56-B | 1986 to 1988 | Second generation. Some synchronizer and shift fork changes from W56-A. |
| W56-C | 1989 to 1991 | Third generation. Refined synchronizer assemblies. Most common generation in US market. |
| W56-D | 1992 only | One-year-only variant with specific internal changes. Relatively rare. |
| W56-E | 1993 to 1995 | Final generation. Most refined version. Compatible with most W56-C components. |
What Is Included- What Is Not Included
| INCLUDED | Complete transmission assembly with all internal gears, synchronizers, shift forks, shift rails. 4WD versions include transfer case input adapter. Output yoke or rear case end as applicable. |
|---|---|
| NOT INCLUDED | Clutch disc, pressure plate, throwout bearing, flywheel, transfer case (4WD applications), transmission fluid, shift lever assembly. |
| Fluid Note | Drain before shipping. Refill with Toyota T-IV ATF or full synthetic GL-4 75W-90 gear oil. Confirm recommendation for your specific application year in the factory service manual. |
| Core Note | No core charge. You are not required to return your old transmission. |
Vehicle Compatibility
The Toyota W56 was factory installed in the following vehicles:
| Toyota Pickup (Hilux)- 2WD | 1985 to 1995- with 22R-E 4-cylinder engine |
|---|---|
| Toyota Pickup (Hilux)- 4WD | 1985 to 1995- with 22R-E 4-cylinder engine (paired with transfer case) |
| Toyota 4Runner- 2WD | 1985 to 1995 |
| Toyota 4Runner- 4WD | 1985 to 1995 (paired with transfer case) |
| Swap Applications | Popular into Jeep, Samurai, custom off-road builds, and non-Toyota applications via adapter plates |
The W56 is a popular swap candidate in the off-road community due to its compact dimensions, aluminum case, and Toyota's reputation for durability. The bellhousing bolt pattern is common to Toyota's W-series family and compatible with various adapter plates for non-Toyota engine applications. Call (240) 301-0095 with your chassis and engine combination and we will advise on swap requirements.
Transmission compatibility: 22R-E 4-cylinder engine- standard factory pairing | Works with 3VZE V6 in some applications with correct bell housing. 4WD versions pair with RF1A or similar Toyota transfer case.
Not sure if this fits? Call (240) 301-0095. We verify fitment before every order ships.
Common Names and Search Terms
| W56 transmission | Most common buyer search |
|---|---|
| Toyota W56 | Full designation |
| W56 5-speed | Gear count designation |
| Toyota Pickup transmission | Application search |
| 4Runner transmission | 4Runner-specific buyer |
| W56 gearbox | International buyer term |
| Hilux W56 | International Hilux buyer |
| Marlin W56 | Off-road community reference |
| Toyota 5-speed truck transmission | General Toyota truck manual buyer |
| W56 4×4 transmission | 4WD-specific buyer |
Used OEM vs Rebuilt- Which Is Right for You?
Used OEM is the right choice for a direct Pickup or 4Runner replacement- particularly where a gear-tested, generation-confirmed unit is needed. Our units are tested with 2WD vs 4WD configuration and Marlin generation documented before shipping.
A rebuilt W56 makes sense for an off-road build where fresh synchronizers and bearings are needed throughout. Toyota truck rebuild specialists and Marlin Crawler can supply rebuilt W56 units with updated components. Call us and we can discuss current unit condition.
Condition and Inspection Process
- Gear engagement test through all 5 forward gears and reverse- 5th gear specifically tested for stay-in-gear under simulated load
- 2WD vs 4WD rear case configuration confirmed before shipping
- Marlin generation identified where determinable- W56-A through W56-E documented
- Fluid inspection for metal contamination or milky appearance
- External shift linkage inspected for slop and wear
- Input and output seals inspected for leaks
Mileage varies by unit. Where available from the donor vehicle we provide it. Where it cannot be confirmed, we disclose this before your order is placed.
Buyer Tips- What to Know Before You Order
- Confirm 2WD vs 4WD before ordering: This is the single most important question. The two versions have completely different rear cases and are not interchangeable. Tell us your vehicle's drivetrain and we will confirm the correct version.
- Fluid type matters: Use Toyota T-IV ATF or a full synthetic GL-4 75W-90 gear oil- confirm with your specific year's factory service manual. Using GL-5 gear oil damages the soft metal synchronizer materials in Toyota W-series transmissions.
- Clutch replacement: Always replace the clutch disc, pressure plate, and throwout bearing at installation regardless of the transmission's condition.
- Marlin Crawler resources: The Marlin Crawler website and the Marlin Crawler community forums are the definitive technical resource for W56 identification, rebuilding, and upgrade components. If you are building or rebuilding a W56, start there.
- Transfer case condition: If buying a 4WD W56 for a 4WD application, inspect the transfer case at the same time. The W56 and transfer case wear together- a fresh W56 behind a worn transfer case is a temporary fix.
Why Buy From Vaz Auto Solutions
- 2WD vs 4WD configuration confirmed- most common W56 sourcing error prevented
- Marlin generation identified where determinable- important for rebuild sourcing
- All 5 gears and reverse tested- 5th gear specifically checked under simulated load
- Fluid type and requirements noted before shipping
- No core charge- keep your old transmission
- Free freight pallet delivery to all 50 states
- 15 day replacement warranty on internal transmission defects
- Call (240) 301-0095- speak with someone who understands W56 generations and Toyota 4WD truck transmission applications
