Description
About This Transmission

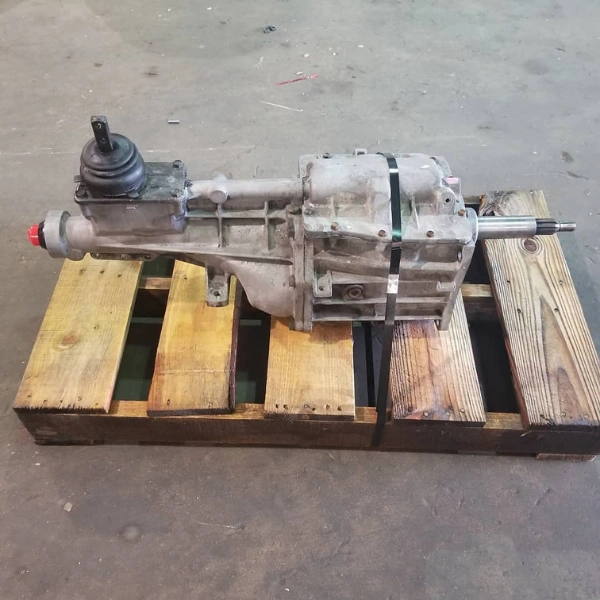

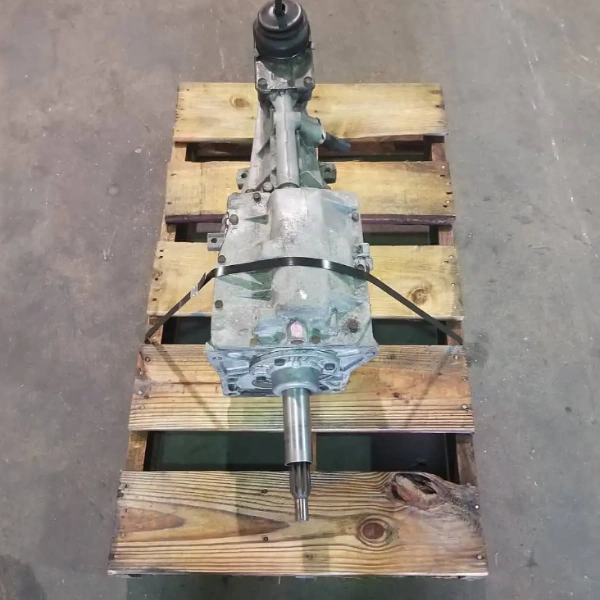

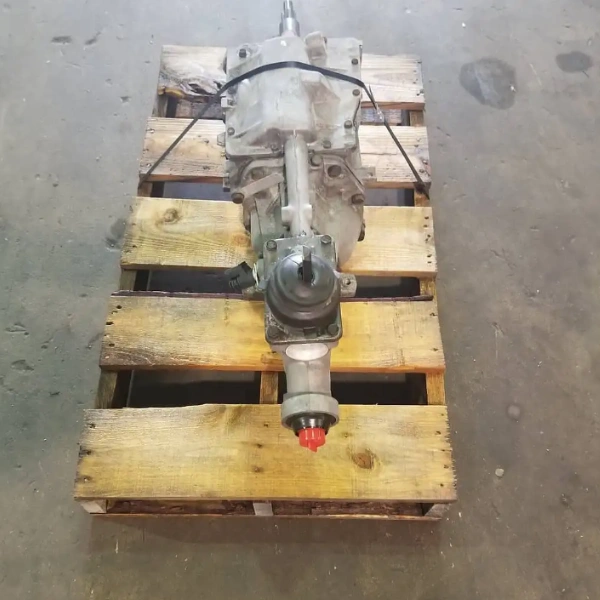

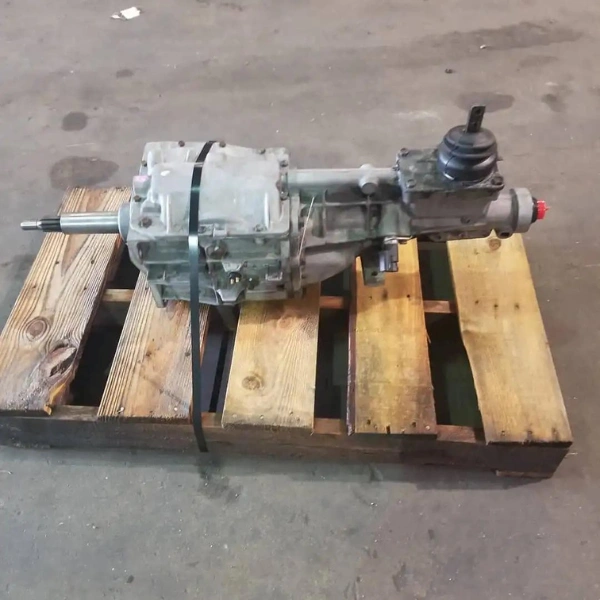

The Borg Warner T5 is the 5-speed manual transmission that gave the Fox body Mustang its identity. Introduced to the Mustang in 1983 to replace the 4-speed SROD, it brought an overdrive 5th gear that transformed the Mustang's highway fuel economy and dramatically improved its real-world usability. The T5 became one of the most significant transmission choices in Mustang history- by the time production ended in 1995 for V8 applications, over a million T5s had been built across Ford, GM, Jeep, and AMC applications. Today it is still considered the definitive Fox body transmission.
Two broad classifications define the T5's production life. The Non-World Class (NWC) T5 was used in 1983 and 1984 Mustangs only. It used a 2.95:1 first gear and bronze synchronizer rings throughout. From 1985 onward, Ford adopted the World Class (WC) T5- featuring fiber-lined steel synchro rings (bronze only in 5th), improved bearings, and revised gear ratios with a deeper 3.35:1 first gear that gave the 5.0L Mustang genuine off-the-line grunt. From 1990, hardened gears and improved internals raised the torque rating from 265 lb-ft to 300 lb-ft. The 1993 Cobra spec T5 introduced the tapered input shaft bearing and reverse gear brake, raising the rating to 310 lb-ft.
The T5 has a well-documented torque limitation: 265 to 310 lb-ft depending on variant. For a stock or mildly modified 5.0L producing 200 to 280 lb-ft, this is adequate. For engines producing more than 300 to 310 lb-ft- which includes any significantly modified 5.0L- the Tremec TKO 500 or 600 is the correct upgrade. We disclose the torque rating of every unit before shipping.
Signs You Need a Replacement Transmission
- Grinding when selecting 3rd gear- 3rd gear synchronizer wear, the most common T5 failure point on high-mileage or abused units
- Transmission pops out of 5th gear on deceleration- 5th gear detent or synchronizer wear
- Jumping out of 2nd gear under acceleration- 2nd gear synchro or detent wear on high-mileage units
- Gear oil smell with no visible external leak- fluid weeping past the rear output seal or shift tower seals
- Whining that increases with vehicle speed in all gears- bearing wear on the input or output shaft
- Hard or imprecise shifting in cold weather- fluid degradation, often from gear oil contamination (T5 must use ATF, not gear oil)
Known Problems With This Transmission
- Using gear oil instead of ATF- the most common T5 problem and the most preventable: The T5 synchro blocking rings are incompatible with gear oil (GL-4 or GL-5). Gear oil causes the blocking rings to lose friction, resulting in grinding and synchro failure within a short period. The T5 must use Dexron III ATF or equivalent. We note fluid type on every order.
- V8 T5 vs 4-cylinder T5- never interchangeable: The V8 T5 uses a 10-spline input shaft with a standard pilot bearing that fits the 5.0L crank. The 4-cylinder T5 uses a longer input shaft with a different, smaller pilot bearing. A 4-cylinder T5 behind a V8 will have shaft alignment problems and will fail rapidly. We confirm which engine the T5 came from before every order.
- Torque rating limitation: Stock T5 units are rated at 265 to 310 lb-ft. A modified 5.0L Mustang producing 350 lb-ft or more will repeatedly break the T5's cluster gear set. We disclose the unit's torque rating and recommend the TKO 500 or 600 for modified engines.
- 3rd gear synchronizer wear: 3rd gear is the most-used synchronizer in the T5 and wears faster than others in high-mileage units. We specifically test 3rd gear engagement before shipping.
- 1994 to 1995 input shaft length: Ford lengthened the T5 input shaft by 5/8 inch for the SN95 Mustang (1994 to 1995) to correct shifter location. A 1994 to 1995 T5 will not directly fit an earlier Fox body Mustang (1979 to 1993) without swapping the input shaft.
Ford Mustang T5 Variants by Year and Key Differences
Five distinct generations across the Mustang T5's 13-year run behind the V8:
| Version | Years | Torque Rating | 1st Gear | Key Notes |
|---|---|---|---|---|
| NWC V8 | 1983 to 1984 | 265 lb-ft | 2.95:1 | Non-World Class. Bronze synchros throughout. Lower torque rating. Rare. |
| WC V8- Early | 1985 to 1989 | 265 lb-ft | 3.35:1 | First World Class- fiber-lined steel synchros (except 5th). Improved bearings. Deeper 1st gear. |
| WC V8- Updated | 1990 to 1992 | 300 lb-ft | 3.35:1 | Hardened gear alloy (more nickel). Better 3rd gear synchro from 1992. Strongest non-Cobra T5. |
| Cobra Spec | 1993 | 310 lb-ft | 3.35:1 | Tapered input shaft bearing. Steel front bearing retainer. Reverse gear brake. Only on 1993 Cobra. |
| SN95 V8 | 1994 to 1995 | 300 to 310 lb-ft | 3.35:1 | Deeper bellhousing- longer input shaft by 5/8 inch. Does not directly fit earlier Fox body without shaft swap. |
What Is Included- What Is Not Included
| INCLUDED | Complete T5 transmission assembly with all internal gears, synchronizers, detent springs, shift forks, shift rails. Output yoke where present. |
|---|---|
| NOT INCLUDED | Clutch disc, pressure plate, throwout bearing, flywheel, transmission fluid (fill with Dexron III ATF before installation), bell housing (external unit- not part of transmission on most Fox body applications), shifter knob and handle. |
| CRITICAL FLUID NOTE | Fill ONLY with Dexron III ATF (or Mercon equivalent). Do NOT use gear oil (GL-4 or GL-5) in a T5. Gear oil destroys the synchro blocking rings. |
| Core Note | No core charge. You are not required to return your old transmission. |
Vehicle Compatibility
The V8 T5 was factory installed in the following Ford and Mercury vehicles:
| Ford Mustang GT and LX 5.0 (Fox body) | 1983 to 1993- standard 5.0L V8 T5 application |
|---|---|
| Ford Mustang Cobra (1993) | 1993 only- Cobra Spec T5 with tapered input bearing |
| Ford Mustang GT and Cobra (SN95) | 1994 to 1995- last year for V8 T5, longer input shaft |
| Ford Thunderbird and Mercury Cougar (V8) | 1983 to 1988- T5 in V8 applications |
| Restomod Applications | Popular swap into 1965 to 1978 classic Mustangs and other Fox platform vehicles as overdrive upgrade |
The T5 is dimensionally compatible with most rear-drive Fords from the 1960s through the 1980s, making it the most popular overdrive upgrade for classic Mustang restomod builds. The bellhousing bolt pattern is specific to the Ford 5.0L- not compatible with big block or small block Windsor engines without a specific adapter bellhousing. For the 1994 to 1995 SN95 T5, the longer input shaft requires a swap back to the shorter 1993-and-earlier shaft before installing in a Fox body. Call (240) 301-0095 with your chassis and engine and we will advise on compatibility.
Transmission compatibility: Ford 5.0L HO (302)- primary V8 application | Also compatible with 3.8L V6 applications using the V6-specific T5 variant (different gear ratios). Do NOT use a 4-cylinder T5 behind any V8.
Not sure if this fits? Call (240) 301-0095. We verify fitment before every order ships.
Common Names and Search Terms
| Mustang T5 | Most common buyer search |
|---|---|
| T5 transmission | Short code buyer |
| World Class T5 | WC designation buyer |
| Fox body T5 | Chassis-specific buyer |
| Ford T5 | Brand designation |
| Borg Warner T5 | Manufacturer designation |
| T5 5-speed | Gear count buyer |
| T5 overdrive | Feature-specific buyer |
| Tremec T5 | Post-1998 manufacturer buyer |
| T5 Cobra spec | 1993 Cobra variant buyer |
Used OEM vs Rebuilt- Which Is Right for You?
Used OEM is the right choice for a stock or mildly modified 5.0L Mustang replacement where a gear-tested, variant-confirmed T5 at a reasonable price is the goal. Our units are tested with V8 vs 4-cylinder variant, WC vs NWC, and torque rating disclosed.
A rebuilt T5 or a Tremec TKO 500/600 makes sense for modified engines. If your engine produces more than 300 lb-ft, the stock T5 is not the right answer. The Tremec TKO 500 and 600 provide 500 and 600 lb-ft ratings respectively with the same basic T5 footprint. Call us and we will help you choose the right option for your power level.
Condition and Inspection Process
- Gear engagement test through all 5 forward gears and reverse- 3rd gear specifically tested for stay-in-gear under simulated load
- V8 vs 4-cylinder variant confirmed- input shaft length and pilot bearing diameter checked before shipping
- WC vs NWC classification confirmed where determinable- bearing race type checked
- Year range confirmed- 1994 to 1995 SN95 longer input shaft documented before shipping
- Fluid condition inspected- burnt smell or metal contamination fails the unit
- Case inspection for cracks and external damage
- Torque rating disclosed based on confirmed year and variant
Mileage varies by unit. Where available from the donor vehicle we provide it. Where it cannot be confirmed, we disclose this before your order is placed.
Buyer Tips- What to Know Before You Order
- Never use gear oil in a T5: Dexron III ATF is the correct fluid. GL-4 or GL-5 gear oil destroys the fiber-lined synchro blocking rings in the World Class T5. This is the most common T5 failure cause among home builders who fill with the wrong fluid.
- V8 T5 is mandatory for V8 applications: Confirm the T5 came from a V8 application before installing behind any 5.0L or 4.6L Ford engine. A 4-cylinder T5 will fail quickly behind a V8.
- Know your torque limit: Stock 5.0L Mustang produces approximately 280 to 300 lb-ft. A T5 rated at 300 lb-ft is adequate for a stock or mild exhaust/intake modified 5.0L. Any significant modification pushing torque above 300 lb-ft requires the Tremec TKO 500 or 600.
- SN95 to Fox body conversion: If buying a 1994 to 1995 T5 for an earlier Fox body Mustang, the input shaft must be swapped to the shorter 1993-and-earlier length. This is a straightforward swap using a 1993 input shaft kit. We advise on this if relevant to your order.
- Clutch replacement: Replace the clutch disc, pressure plate, and throwout bearing at installation. This is mandatory regardless of transmission condition.
Why Buy From Vaz Auto Solutions
- V8 vs 4-cylinder variant confirmed before you pay- the most critical T5 safety distinction
- WC vs NWC documented- torque rating disclosed before shipping
- All 5 gears and reverse tested- 3rd gear specifically checked for stay-in-gear
- 1994 to 1995 SN95 longer input shaft flagged if present
- Correct fluid type (Dexron III ATF) reminder on every order
- No core charge- keep your old transmission
- Free freight pallet delivery to all 50 states
- 15 day replacement warranty on internal transmission defects
- Call (240) 301-0095- speak with someone who understands T5 variants, torque ratings, and Fox body Mustang transmission compatibility
