Description

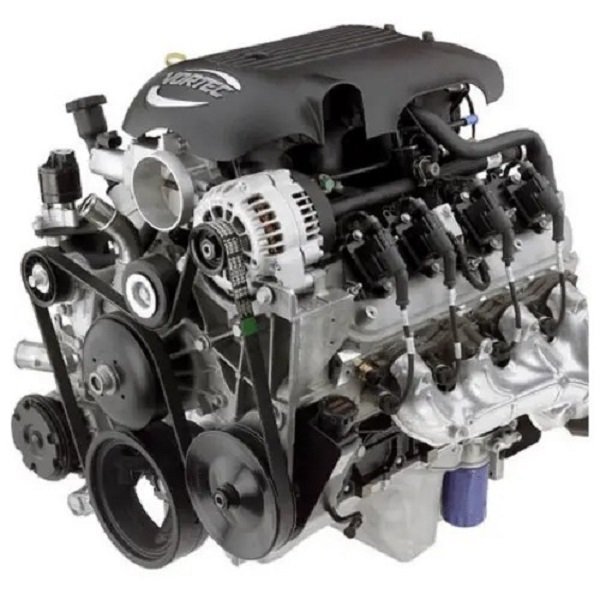

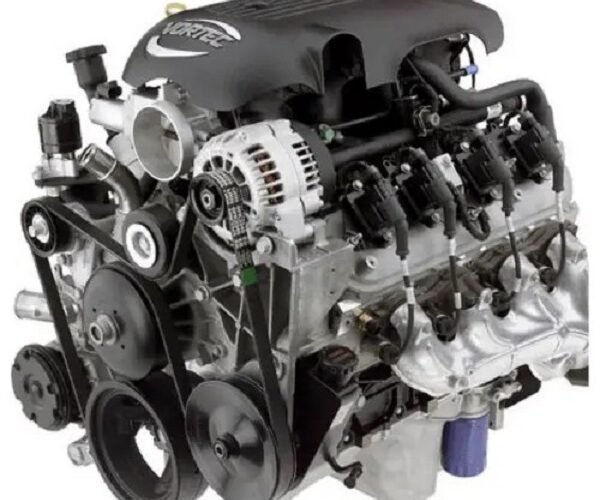

About the 5.3 Vortec Engine
The 5.3 Vortec is the most widely produced V8 engine in GM history. From 1999 through 2020 and beyond, it powered every full-size Chevy and GMC truck and SUV: Silverado 1500, Sierra 1500, Tahoe, Suburban, Yukon, Yukon XL, Avalanche, and the discontinued Hummer H2 and Cadillac Escalade. The 5.3 Vortec spans three distinct GM small block generations, sharing the same 96 mm bore and 92 mm stroke for 325 cubic inches of displacement, but differing significantly in fuel system, valve train, and electronic engine management between generations.
Three Generations You Need to Know Before Ordering
Generation III (1999 to 2007): Includes RPO codes LM7 (iron block, 270 to 295 hp), L59 (flex fuel iron block), LM4 (aluminum block, GMT800 SUVs), and L33 (high-output aluminum block). Port fuel injection, no VVT, no AFM. The “iron block 5.3” most owners think of when they hear “5.3 Vortec.”
Generation IV (2007 to 2014): Includes LH6, LMG, LC9, LH8, LMF, LY5. Adds Variable Valve Timing and Active Fuel Management (cylinder deactivation). Block material varies by RPO (aluminum on LH6, LC9, LMG; iron on LY5, LMF).
Generation V (2014 onward): L83 EcoTec3. Direct injection, VVT, AFM, all-aluminum block. 355 hp, the most power-dense factory 5.3 ever produced.
Why GM Truck Owners Choose a Used 5.3 Vortec
Cores are abundant because GM built the 5.3 in massive volume for over two decades. A clean used unit costs less than half of a remanufactured long block while delivering excellent service life when properly inspected for the known wear points of the specific generation.
Signs You Need a Replacement 5.3 Vortec
- AFM lifter collapse on Gen IV and Gen V units, the highest-impact wear mode
- Knock or rattle under load, rod or main bearing wear on high-mileage units
- Excessive oil consumption (a known Gen IV issue past 100,000 miles)
- Loss of compression on one or more cylinders, head gasket or ring wear
- Timing chain rattle on cold start, timing chain stretch
- Coolant in oil, head gasket or oil cooler failure
- Misfire codes that follow specific cylinders, lifter or valvetrain wear
Known 5.3 Vortec Issues We Inspect Before Shipping
- AFM lifter condition (Gen IV and Gen V), the most-discussed 5.3 wear point
- Oil consumption history (well-documented Gen IV concern)
- Timing chain stretch, inspected and reported
- High pressure fuel pump on L83 direct injection
- Compression on all 8 cylinders, the leading indicator of overall condition
- Generation and RPO photographed, including head and block casting numbers
- Donor application and mileage documented where available
What Is Included, What Is Not Included
| Item | Details |
|---|---|
| INCLUDED | Long block: block, crankshaft, rods, pistons, camshaft, heads, valve train, oil pan, valve covers, timing cover, harmonic balancer. Direct injection HPFP on L83 where present on donor unit. |
| NOT INCLUDED | Intake manifold (sometimes included, varies by donor), throttle body, exhaust manifolds, ECU, harness, alternator, starter, A/C compressor, power steering pump, flexplate, motor mounts. |
| Fluids | Drained before shipping. Refill with Dexos 1 Gen 2 spec 5W-30 motor oil. |
| Core Note | No core charge. You are not required to return your old engine. |
Vehicle Compatibility
The 5.3 Vortec was a direct fit in the following vehicles:
| Vehicle | Compatibility |
|---|---|
| Chevy Silverado 1500 | 1999 to 2020+ (across all three generations) |
| GMC Sierra 1500 | 1999 to 2020+ |
| Chevy Tahoe | 2000 to 2020+ |
| Chevy Suburban 1500 | 2000 to 2020+ |
| GMC Yukon | 2000 to 2020+ |
| GMC Yukon XL | 2000 to 2020+ |
| Chevy Avalanche 1500 | 2002 to 2013 |
| Cadillac Escalade | 2002 to 2006 (5.3 trim, later moved to 6.2L) |
| Hummer H2 | 2003 to 2007 (5.3 trim was rare, mostly 6.0L) |
| Chevy Express Van 1500 | 2003 to 2014 |
| GMC Savana Van 1500 | 2003 to 2014 |
| Chevy SSR | 2003 to 2004 (5.3 LM4) |
| Buick Rainier | 2004 to 2007 (5.3 LH6) |
| Saab 9-7X Aero | 2008 (5.3 LH6) |
| Isuzu Ascender | 2003 to 2008 (5.3 LM4) |
Transmission pairings: 4L60E (Gen III), 4L65E, 4L70E (Gen III/IV), 6L80, 6L90 (Gen IV/V), 8L90 (later Gen V). Tell us your transmission for compatibility check before shipping.
Condition and Inspection
Every used 5.3 Vortec we ship goes through this process:
- Compression test across all 8 cylinders, pressure per cylinder recorded
- AFM lifter condition inspected and documented (Gen IV and Gen V)
- Timing chain stretch checked and reported
- High pressure fuel pump operation inspected (L83 only)
- Oil consumption history disclosed where documented from donor
- Visual inspection of block deck, head surfaces, and oil galleries
- Generation and RPO photographed: head casting, block casting, intake style
- Donor application and mileage documented when available
Where donor mileage is verified, it is shared. Where mileage cannot be confirmed, we disclose openly before payment. Full inspection notes available on request.
Why Buy From Vaz Auto Solutions
- All 8 cylinders compression tested, results shared before order is confirmed
- Generation and RPO code photographed and confirmed (LM7, LMG, L83, etc.)
- AFM lifter condition documented on Gen IV and Gen V units, the highest-impact wear point
- Timing chain stretch and high pressure fuel pump (L83) condition inspected
- Oil consumption history disclosed where available
- Free crated freight delivery to all 50 states, no hidden surcharges
- No core charge, keep your old engine
- 15 day replacement warranty on internal engine defects
- GM-experienced support team on the phone, real conversation about RPO codes
