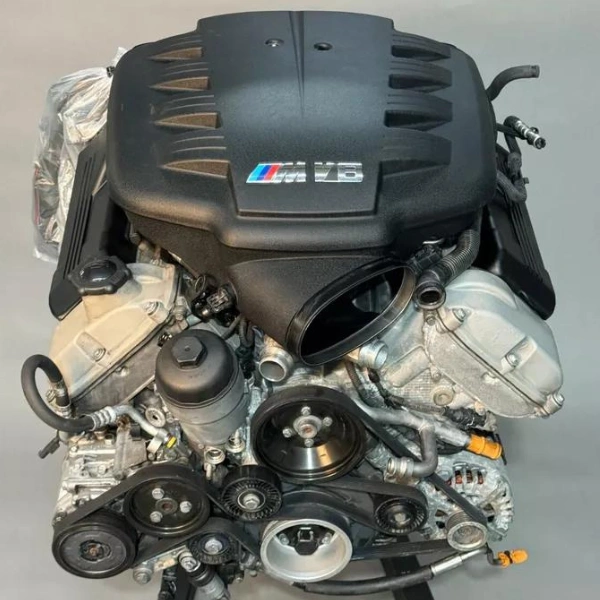

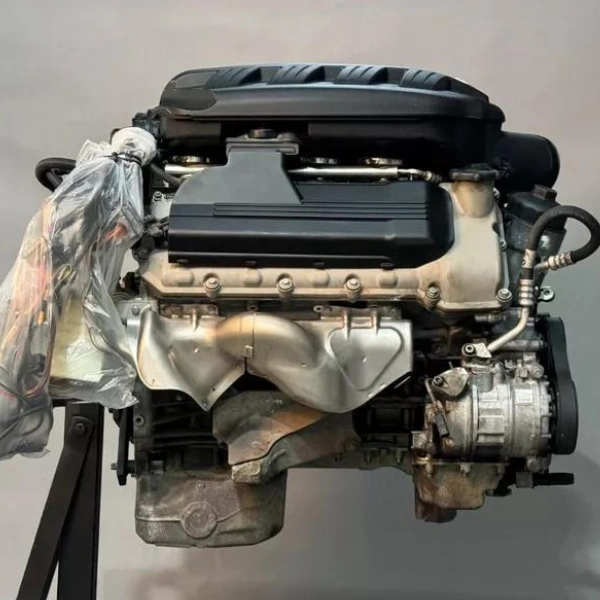

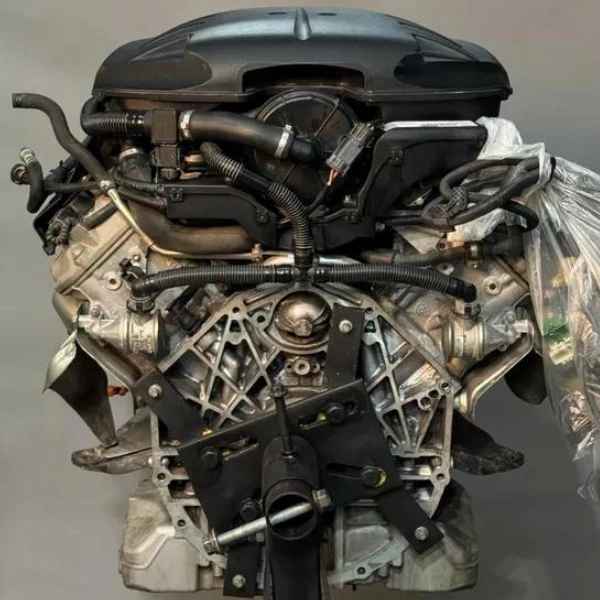

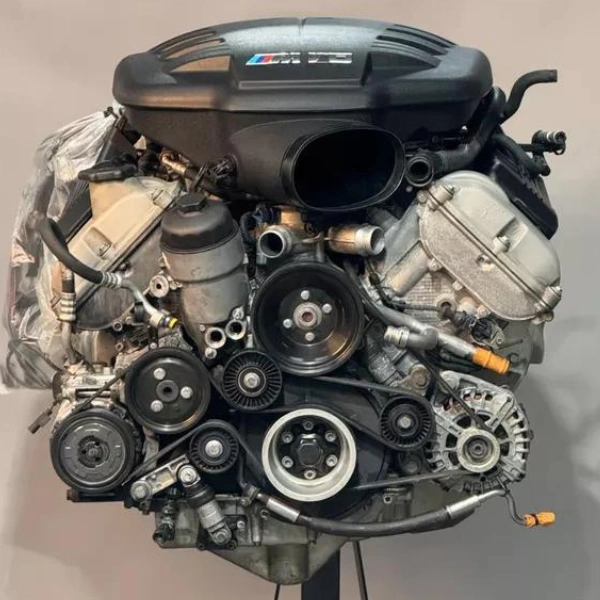

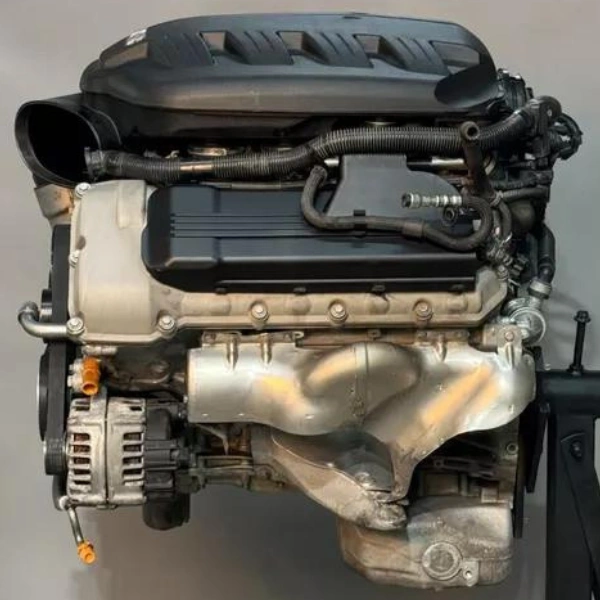

BMW S65 Engine for Sale

About This Engine

The BMW S65 is the only naturally aspirated V8 engine BMW M has ever installed in a production M3. Produced from 2007 to 2013 in the E90 sedan, E92 coupe, and E93 convertible M3, it represents a singular chapter in BMW M history- an engine designed entirely from racing principles with no shared components from the standard production BMW engine range. The S65 was derived directly from the S85 V10 that powered the E60 M5, sharing the same 92 mm bore, 75.2 mm stroke, 12.0:1 compression ratio, and Double VANOS system. BMW M engineers essentially removed two cylinders from the V10 and packaged the result into a lighter, more compact V8 for the M3's weight distribution requirements.

The result is an engine unlike anything else in the BMW catalog. Eight individual throttle bodies- one per cylinder- give the S65 throttle response that engineers typically describe as instantaneous. Below 4,000 rpm it performs like a smooth, tractable V8. Above that point, the intake roar builds through the individual stacks and the engine accelerates toward its 8,400 rpm redline with an intensity and sound that owners consistently describe as unlike any other production road car they have experienced. The S65 won the International Engine of the Year award in the 3.0 to 4.0-liter category for five consecutive years from 2008 to 2012.

The S65 represents the end of an era. When the F-series M3 arrived in 2014, BMW M switched to a turbocharged inline-six (the S55). The S65 was never repeated, making the E9x M3 the only M3 ever to use a V8. E9x M3 values have increased significantly as collectors recognize the S65's unique position in automotive history.

Signs You Need a Replacement Engine

• Rod knock- a rhythmic metallic knock that intensifies with engine RPM. This is the S65's most serious failure mode and requires immediate engine-off action. Do not continue driving an S65 with rod knock.
• Throttle actuator fault codes or rough idle- the DISA-style throttle actuator motors on individual throttle bodies can fail. Eight individual actuators means eight potential failure points.
• Cold-start VANOS rattle lasting more than 3 to 4 seconds- normal VANOS engagement produces a brief rattle. Prolonged rattle indicates VANOS solenoid screen clogging from infrequent oil changes.
• Valve cover gasket oil leak- the most common minor S65 oil leak, appears as seepage at the cam cover perimeter
• Oil consumption above BMW specification- internal sealing deterioration on high-mileage examples
• Check engine light with individual cylinder misfire codes- typically coil on plug failure or injector issue on one or more cylinders

Known Problems With This Engine

• Rod bearing failure- the S65's documented critical weakness: The S65 rod bearings are undersized for the engine's operating profile, particularly when owners do not change oil frequently enough or when the engine is pushed hard on old oil. Rod bearing failure destroys the engine completely and without warning. Industry consensus from BMW M specialists is that S65 rod bearings should be replaced proactively at 60,000 to 80,000 miles regardless of apparent condition, using OEM BMW replacement bearings. We inspect for rod knock and assess oil condition before shipping- any unit showing evidence of rod bearing distress is rejected.
• Throttle actuator failure: Eight individual throttle bodies each have their own electric actuator motor. These actuators can fail with age, causing rough idle, misfires, and fault codes. A single failed actuator causes the ECU to detect the imbalance and flag a fault. We inspect for actuator-related fault codes where possible before shipping.
• VANOS solenoid screen clogging: The Double VANOS system requires clean oil to function correctly. The solenoid screens clog with sludge on engines that have had extended oil change intervals. We inspect VANOS solenoid areas and note any fault indicators before shipping.
• Valve cover gasket seepage: The S65 valve cover gaskets are a routine maintenance item that seeps on aged engines. We inspect both valve cover areas before shipping and note any seepage.
• Oil change interval sensitivity: The S65 is more sensitive to oil condition than almost any production BMW engine. Using BMW's factory 15,000-mile oil change intervals causes premature rod bearing wear. Most M specialists recommend 5,000 to 7,500 mile intervals using BMW-approved 10W-60 Motorsport oil.

BMW S65 Variants

Two S65 variants were produced- the standard S65B40 and the rare GTS-only S65B44:

What Is Included- What Is Not Included

Vehicle Compatibility

The BMW S65B40 was factory installed exclusively in the following vehicles:

The S65 was designed for the E9x M3 chassis. Swap applications into other BMW chassis exist in the enthusiast community but require custom mounts, complete wiring harness integration, and compatible ECU setup. Call (240) 301-0095 with your specific project before ordering.

Transmission compatibility: BMW 6-speed manual (Getrag GS6-53BZ or GS6-45BZ) | BMW 7-speed DCT (Getrag GS7D36SG)- both rear-wheel-drive. Confirm your transmission variant before ordering.

Not sure if this fits? Call (240) 301-0095. We verify fitment before every order ships.

Used OEM vs Rebuilt- Which Is Right for You?

Used OEM is the only practical path for most S65 replacement projects. The engine is no longer in production and factory replacement through BMW channels is not available at standard pricing. Our inspected units are documented with rod bearing condition, throttle actuator status, and VANOS indicators assessed.

A specialist S65 rebuild from an M3-specialist shop makes sense for a show car or track build requiring fresh rod bearings, valve seals, and throttle actuator services throughout. S65 rebuilds from qualified shops typically run $8,000 to $15,000 or more. For any S65 regardless of source, rod bearing replacement at installation is strongly recommended.

Condition and Inspection Process

• Full external inspection- block, heads, cam covers, valve cover gasket areas, and all accessible engine surfaces
• Rod bearing condition assessed- oil condition and internal noise evaluation. Any unit showing rod knock symptoms is rejected before listing.
• Throttle actuator connectors inspected- all 8 throttle body areas checked for connector condition and fault indicators where accessible
• VANOS solenoid areas inspected- solenoid connector condition and fault code indicators noted
• Valve cover gasket seepage assessed- both cam cover areas inspected
• Engine code confirmed- S65B40 or S65B44 documented before shipping
• Mileage documented where available from service records

Mileage varies by unit. Where available from the donor vehicle we provide it. Where it cannot be confirmed, we disclose this before your order is placed.

Buyer Tips- What to Know Before You Order

• Rod bearing replacement at installation is non-negotiable: Regardless of the mileage or apparent condition of any used S65, BMW M specialists universally recommend replacing the rod bearings at installation using OEM BMW 10W-60 Motorsport spec bearings. The cost of bearing replacement is approximately $800 to $1,500 in parts and labor. The cost of a complete rod bearing failure is a destroyed engine.
• Oil specification and intervals: Use only BMW 10W-60 Motorsport oil (or equivalent full synthetic meeting BMW M spec). Change every 5,000 to 7,500 miles maximum. This is not optional for S65 longevity- the standard BMW 15,000-mile interval is insufficient for this engine's rod bearing requirements.
• Throttle actuator inventory: Consider sourcing a spare set of throttle actuator motors before installation. These are the second most common S65 failure after rod bearings and are much cheaper to address preventively than after a failure.
• Specialist installation required: S65 replacement is not a general BMW shop job. An E9x M3-specialist shop with documented S65 experience is required. The individual throttle body calibration, VANOS timing, and ECU adaptation procedures are not standard BMW procedures.
• ECU compatibility: Verify ECU compatibility with your specific VIN before installation. Some S65 ECU configurations are VIN-linked and require dealer programming to adapt to a replacement engine.

Why Buy From Vaz Auto Solutions

• Rod bearing condition specifically assessed- any unit showing knock or oil contamination rejected before listing
• Throttle actuator connectors inspected on all 8 throttle bodies- the S65's second most common failure point
• VANOS solenoid condition assessed before shipping
• Engine code confirmed- S65B40 or S65B44 documented
• No core charge- keep your original engine
• Free freight pallet delivery to all 50 states with specialist exotic engine handling
• 15 day replacement warranty on internal defects
• Call (240) 301-0095- speak with someone who understands S65 rod bearing concerns and E9x M3 engine sourcing
