Description
About This Engine

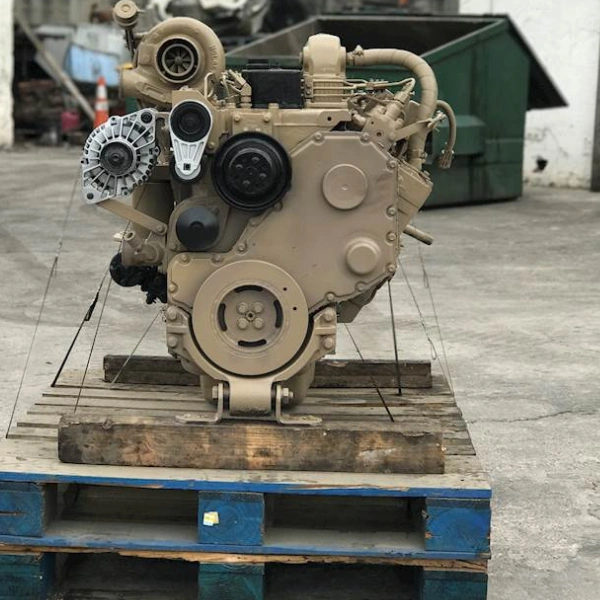

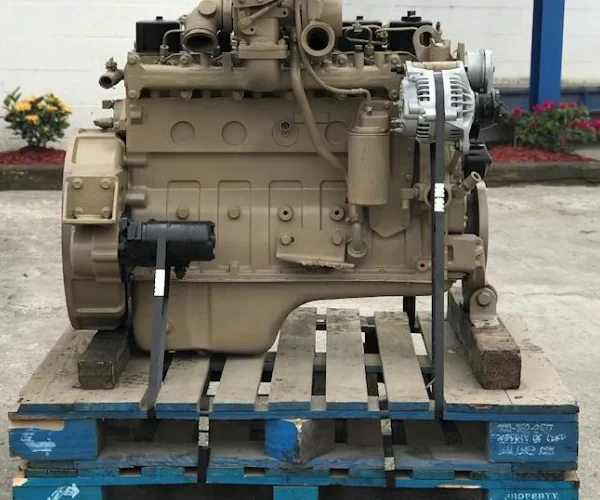

The Cummins 6BT is the most celebrated diesel engine in the history of the American pickup truck. Introduced in 1989 as the first diesel engine offered in a light-duty pickup truck- and available only in Dodge Ram, making Dodge the only manufacturer to offer an inline-six diesel in the segment- the 6BT transformed what buyers expected from a truck engine. It produced nearly double the torque of the competing gasoline V8 engines at low RPM, achieved dramatically better fuel economy under towing loads, and started reliably in cold weather conditions that made electronic diesel systems of the era unreliable.
The 6BT's mechanical philosophy is the foundation of everything buyers love about it. No ECU for the fuel system. No electronic injection timing. The Bosch P7100 inline pump (from 1994 onward) operates entirely mechanically, driven off the camshaft gear, and is self-sufficient at temperatures and altitudes where electronic systems struggle. The gear-driven camshaft means no timing belt to break and no timing chain to stretch. Solid tappets require periodic adjustment but last far longer than hydraulic lifters. The cast iron deep-skirt block and extra-strength forged connecting rods give the 6BT a durability that diesel swap builders specifically seek out.
The performance potential of the 6BT- particularly the P7100 version- is a major driver of swap demand. The P7100 pump can be modified to fuel nearly 600 rwhp using only internal pump modifications, an appropriate turbocharger upgrade, and supporting changes. These builds are well-documented in the diesel performance community. The 12-valve 6BT's mechanical simplicity makes it the starting point of choice for everything from agricultural equipment repowers to custom diesel-powered restomod trucks and off-road builds.
Signs You Need a Replacement Engine
- Hard cold start with excessive white smoke- clogged or failed heater grid (the 6BT's most common minor failure). The heater grid replaces the glow plug system and sits between the air horn and intake manifold. It clogs with soot over time.
- Loss of power with black smoke- P7100 overflow valve failure (weak spring or eroded seat) causing poor fuel pressure | Alternatively: air restriction from clogged air filter or collapsed air intake hose
- Blue smoke- engine oil consumption from worn valve seals or piston rings on high-mileage units
- Unusual metallic noise from the timing gear cavity- the Killer Dowel Pin (KDP) has begun to move. This is an emergency- stop engine immediately.
- Loss of oil pressure- unlikely on a healthy 6BT but indicates serious bearing wear on extremely high-mileage or neglected units
- Coolant in oil or oil in coolant- head gasket failure, relatively rare on the 6BT but possible on severely overheated examples
Known Problems With This Engine
- Killer Dowel Pin (KDP)- the 6BT's most famous catastrophic failure mode: A steel dowel pin pressed into the front of the block near the timing gear cavity can loosen over time from the vibration inherent in a diesel engine. If the pin drops into the timing gear area, it causes immediate and catastrophic gear damage destroying the engine. This failure is entirely preventable with a KDP eliminator kit (cost $60 to $120) installed through the front cover without removing the engine. We assess KDP status on every unit before shipping and recommend KDP eliminator installation at engine installation regardless of unit condition.
- P7100 overflow valve failure: The P7100 injection pump's internal overflow valve can weaken or develop seat erosion over time, causing low fuel pressure, misfires, rough idle, loss of power, and hard starting. This is a serviceable component but requires pump disassembly by a diesel injection specialist.
- Heater grid clogging: The cold-start heater grid sits in the air horn between the turbo outlet and intake manifold and accumulates soot over time. A clogged grid restricts airflow and causes hard cold starts, engine dying at low rpm, and increased fuel consumption. Regular cleaning extends service life.
- Injection pump timing drift: The P7100 injection pump timing can drift over time or after a belt change, causing hard starting, reduced power, or black smoke. Correct timing requires diesel injection equipment. We note any obvious pump timing indicators before shipping.
- Head gasket- uncommon but possible: The 6BT's one-piece shallow cast iron head requires precise torque values during installation. Head gasket failures are relatively rare but can occur on severely overheated or improperly assembled engines. We compression test all 6 cylinders before shipping.
Cummins 6BT by Year- Dodge Ram Application
Key changes across the 6BT's 10-year Dodge Ram production run:
| Year(s) | HP | Torque | Injection Pump | Key Notes |
|---|---|---|---|---|
| 1989 to 1990 | 160 hp | 400 lb-ft | VE44 rotary | No intercooler. H1C turbo. Earliest, least sought-after. |
| 1991 to 1993 | 175 hp | 400 lb-ft | VE44 rotary | Intercooler added mid-1991. Significant reliability improvement. WH1C turbo. |
| 1994 to 1995 | 160 to 175 hp | 400 lb-ft | P7100 inline | P7100 pump replaces VE44. Most important improvement. Base tune power varies. |
| 1996 to 1998 | 215 hp (auto) / 215 hp (manual) | 420 lb-ft | P7100 inline | Highest factory output. HX35 turbo. 215 hp auto | manual same hp, higher torque available. |
What Is Included- What Is Not Included
| INCLUDED- Long Block | Cast iron block, crankshaft, pistons, connecting rods, camshaft, cast iron cylinder head, valve train, gear-driven timing system, oil pan, front timing cover. |
|---|---|
| Injection Pump | Injection pump inclusion depends on the unit- confirmed before shipping. If included, pump type (P7100 or VE44) is documented. If not included, type required for the specific year is noted. |
| Turbocharger | Turbocharger may or may not be included depending on the unit. Confirm at order. |
| NOT INCLUDED | Starter, alternator, power steering pump, flywheel, bellhousing (confirm Dodge vs non-Dodge application), heater grid, exhaust manifold. |
| KDP Note | KDP eliminator kit installation strongly recommended at engine installation regardless of unit condition. Kits cost $60 to $120. |
| Core Note | No core charge. |
Vehicle Compatibility
The Cummins 6BT was factory installed in the following vehicles:
| Dodge Ram 2500 and 3500 (1st and 2nd generation) | 1989 to 1998- the 6BT's primary automotive application |
|---|---|
| Case agricultural equipment | 1984 onward- the 6BT's original application |
| Industrial, construction, and marine applications | 1984 onward- generator sets, irrigation pumps, marine propulsion |
| Swap Applications- virtually limitless | The 6BT is the most popular diesel swap engine in the US. Jeeps, custom trucks, restomod builds, off-road vehicles, boats, generators. The 1,100 lb weight must be factored into any chassis swap. |
The 6BT is the most popular diesel engine swap in the American automotive community. Its combination of mechanical simplicity, aftermarket support, and tuning potential make it the benchmark diesel for custom builds. The engine weighs approximately 1,100 lbs- chassis engineering for weight must be addressed in any swap application. The bellhousing pattern is specific to Dodge in automotive applications- adapter plates are available for many non-Dodge bellhousing configurations.
Transmission compatibility: Dodge NV4500 5-speed manual- the most popular and strongest pairing | Dodge NV3500 5-speed manual- lighter duty | Dodge A518 (47RH) 4-speed automatic- 1989 to 1995 | Dodge 47RE 4-speed automatic- 1996 to 1998. Confirm your application before ordering.
Not sure if this fits? Call (240) 301-0095. We verify fitment before every order ships.
Common Names and Search Terms
| 6BT | Most common short buyer search |
|---|---|
| Cummins 6BT | Full designation |
| 12 valve Cummins | Valve count designation- the 6BT's community name |
| 5.9 Cummins | Displacement designation |
| P7100 Cummins | Pump-specific buyer- very high tuner intent |
| 12v Cummins | Abbreviated valve designation |
| Cummins B Series | Family designation |
| Dodge Cummins engine | Application buyer |
| Cummins diesel engine for sale | Broad diesel buyer |
| Cummins 12 valve diesel | Full descriptor buyer |
Used OEM vs Rebuilt- Which Is Right for You?
Used OEM is the right choice for a Dodge Ram replacement, a diesel swap build, or an equipment repower- particularly where a compression-tested unit with confirmed pump type and KDP status is the foundation. Our 6BT units are documented with injection pump type, intercooler presence, and KDP assessment before shipping.
A rebuilt 6BT makes sense for a high-output build targeting 400 to 600 rwhp or more, where fresh tolerances and specifically selected components are required. Cummins diesel rebuilders can build a 6BT to virtually any power target. Call us and we can discuss current unit condition and whether a rebuild is warranted for your application.
Condition and Inspection Process
- Compression test across all 6 cylinders- results per cylinder recorded before shipping
- Killer Dowel Pin (KDP) status assessed- front cover area inspected for KDP movement indicators
- Injection pump type confirmed- P7100 (1994 onward) or VE44 (pre-1994) documented before every order
- Intercooler presence confirmed- 1991 cutoff noted
- Turbocharger condition assessed if present
- Heater grid area inspected for obvious clogging indicators
- External inspection for oil leaks at rear main seal, front crank seal, and valve cover
Mileage varies by unit. Where available from the donor vehicle we provide it. Where it cannot be confirmed, we disclose this before your order is placed.
Buyer Tips- What to Know Before You Order
- Install a KDP eliminator kit at installation- not optional: Regardless of the KDP status of the unit you receive, install a KDP eliminator kit at installation. The kit costs $60 to $120 and takes 2 to 3 hours through the front cover. Not doing this on any 6BT is an unacceptable risk.
- P7100 vs VE44- understand which pump you have: The 1994-and-newer P7100 is the most desirable configuration for performance and reliability. The pre-1994 VE44 is adequate for stock applications. If you want a P7100 unit specifically, tell us when ordering.
- Heater grid service at installation: Remove and clean the heater grid before the first cold start. A soot-clogged grid is the most common cause of hard starting on 6BT engines. The grid is inexpensive to clean or replace.
- Fuel filter at installation: Replace the fuel/water separator and secondary fuel filter at installation regardless of unit history. Diesel injection equipment is sensitive to contamination.
- Valve adjustment: The 6BT uses solid mechanical tappets requiring periodic manual valve clearance adjustment. Check valve clearances at installation if unit history is unknown. Specification: 0.010 in intake and 0.020 in exhaust (cold).
Why Buy From Vaz Auto Solutions
- P7100 vs VE44 injection pump confirmed- most critical 6BT buyer distinction documented before you pay
- Killer Dowel Pin (KDP) status assessed- most famous 6BT catastrophic failure mode disclosed
- Intercooled vs non-intercooled confirmed- 1991 mid-year cutoff noted
- All 6 cylinders compression tested- results available before order confirmed
- No core charge- keep your old engine
- Free freight pallet delivery to all 50 states
- 15 day replacement warranty on internal engine defects
- Call (240) 301-0095- speak with someone who understands 6BT pump types, KDP risk, and Cummins diesel sourcing
