Geo Prizm (1989-1997) was a rebadged Toyota Corolla produced at NUMMI joint venture (Fremont CA, GM-Toyota partnership 1984-2010). Famous for bringing Toyota Production System to US manufacturing. After Geo brand discontinued 1998, continued as Chevy Prizm 1998-2002. NUMMI plant later became Tesla facility.
Three generations: E90 (1989-1992), E100 (1993-1997, last Geo era), E110 (1998-2002 Chevy era). Toyota Corolla sibling sold simultaneously through Toyota dealers - same NUMMI vehicle different badge.
Tie rod is critical steering safety component. Inner tie rod (threaded into steering rack, ball joint to outer) and outer tie rod end (threaded adjuster, ball joint to wheel hub). Wheel alignment ALWAYS required after replacement. Cross-reference Toyota Corolla (US sibling, same NUMMI production).
Geo Brand and NUMMI Context
Geo brand: GM economy import brand 1989-1997
Geo Prizm donor: Toyota Corolla via NUMMI joint venture
NUMMI: Fremont CA GM-Toyota partnership 1984-2010
Significance: First Toyota Production System in US manufacturing
Plant fate: Became Tesla Motors facility after 2010
Post-Geo continuation: Chevy Prizm 1998-2002
Three Generation Coverage
E90 Chassis 1989-1992 (1st Gen)
Geo Prizm 1989-1992
Sibling: Toyota Corolla AE92
Significance: First FWD Corolla in this body style
E100 Chassis 1993-1997 (2nd Gen)
Geo Prizm 1993-1997 (last Geo-branded years)
Sibling: Toyota Corolla AE100/AE101
Engines: Various 1.6L and 1.8L Toyota engines
E110 Chassis 1998-2002 (3rd Gen)
Chevy Prizm 1998-2002 (post-Geo era)
Sibling: Toyota Corolla AE111/AE112
Same NUMMI production continued just rebadged Geo to Chevy
Inner vs Outer Tie Rod

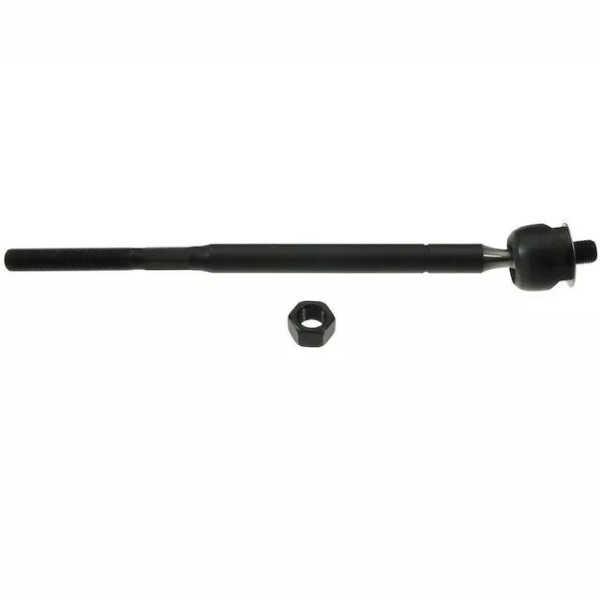

Inner tie rod: Threads into steering rack end, ball joint to outer
Outer tie rod end: Threaded adjuster, ball joint to steering knuckle
Most commonly replaced: Outer (more accessible, wears first)
Both required: If both have play, replace as system
Vehicle Compatibility
Direct Fit and NUMMI Cross-Reference:
Vehicle
Compatibility
Geo Prizm 1989-1992 (E90 1st Gen)
Toyota Corolla AE92 sibling
Geo Prizm 1993-1997 (E100 2nd Gen)
Toyota Corolla AE100/AE101 sibling
Chevy Prizm 1998-2002 (E110 3rd Gen)
Toyota Corolla AE111/AE112 sibling
Cross-Reference Toyota Corolla 1989-2002
Same NUMMI vehicle, different badge
Inner Tie Rod Variants
Specify at order
Outer Tie Rod End Variants
Specify at order
Driver-Side or Passenger-Side
Mirror images, specify
Wheel Alignment Required After Install
Critical for tire wear and handling
NOT Compatible Toyota Corolla XR/SR5 Older
Different platform
NOT Compatible Other Geo Models
Different vehicles
Condition and Inspection
No play in ball joint critical for steering safety
Boot integrity verified protects ball joint from contamination
Threaded surfaces intact for alignment adjustment
No major corrosion especially salt-belt vehicles
Ball joint smoothness verified full range of motion
Castle nut threads intact for cotter pin retention

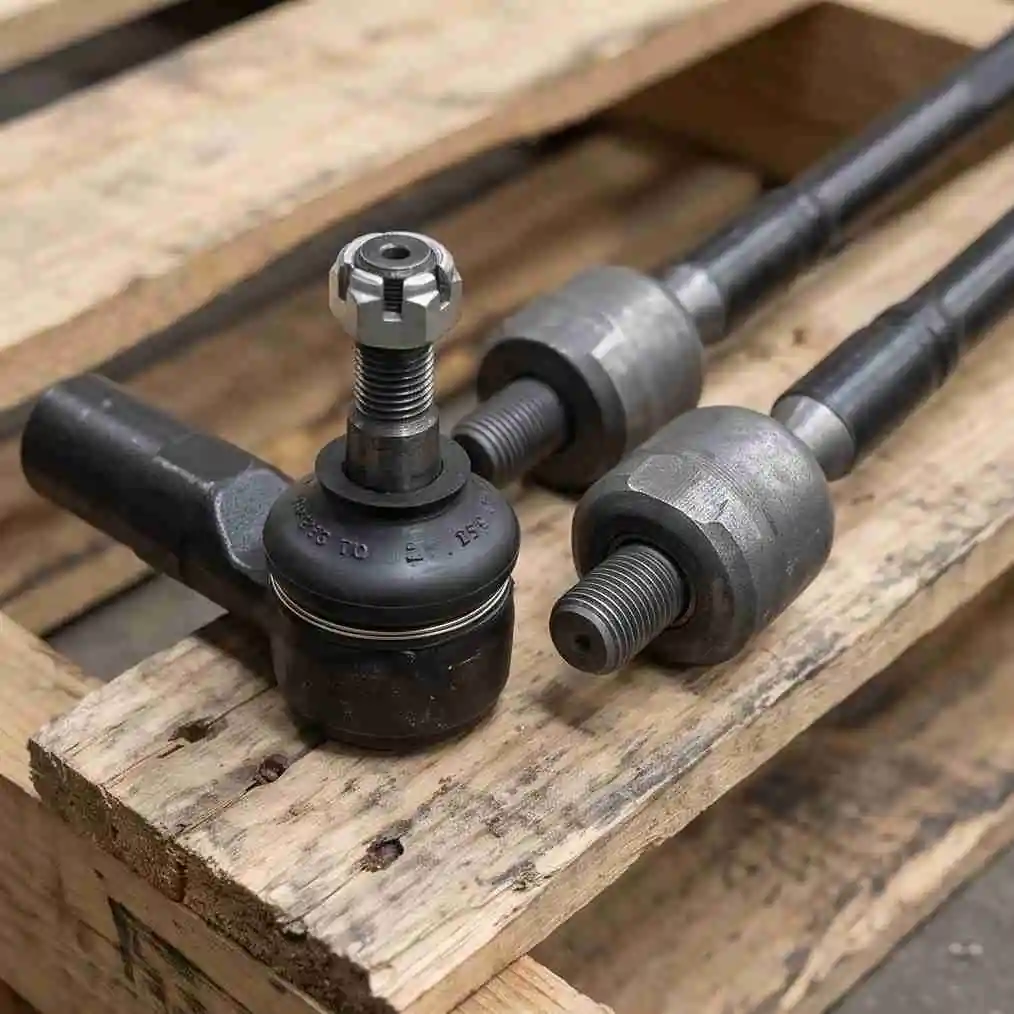

For Geo Prizm tie rod (and Toyota Corolla cross-reference)
Geo brand context documented
NUMMI joint venture history (GM-Toyota Fremont CA)
Three generations supported (E90, E100, E110)
Chevy Prizm continuation 1998-2002
Toyota Corolla US sibling cross-reference
Inner and outer tie rod variants
Both driver and passenger side
No ball joint play verified (critical safety)
Boot integrity confirmed
Threaded surfaces intact
Authentic Toyota OEM (NUMMI production)
Geo/Toyota economy specialist support
NUMMI production quality emphasized
Wheel alignment guidance
Donor vehicle disclosed
Free shipping all 50 states
15 day replacement warranty
No core charge
Part Type
Tie rod (inner or outer)
Vehicle Application
Geo Prizm 1989-1997 + Chevy Prizm 1998-2002
Donor Vehicle
Toyota Corolla (NUMMI joint venture)
Production Location
NUMMI Fremont CA (1984-2010)
Generation 1
E90 1989-1992
Generation 2
E100 1993-1997
Generation 3
E110 1998-2002
Tie Rod Types
Inner and outer variants
Approximate Weight
0.5 to 2 lbs
Installation Difficulty
Outer easier DIY, inner more involved
Alignment Required
ALWAYS after replacement
Service Life
80,000-150,000 miles typical
Common Replacement Reason
Ball joint play, boot failure
Donor Disclosed
Brand, generation, year, position, mileage
Price
$40.00
Alphonse Beauchemin-Lavallée
Replaced outer tie rod end on driver side of my 1995 Geo Prizm (E100 chassis with 1.6L Toyota engine) after the boot tore and ball joint developed play. Vaz confirmed Geo brand context (NUMMI rebadge of Toyota Corolla) and sourced from a 1996 Toyota Corolla AE101 donor (US sibling cross-reference - same NUMMI production). No ball joint play, boot intact, threads clean. Installed at my mechanic with proper alignment after. Steering tight again. The NUMMI joint venture history context was educatio
Mariska Vandersluis-Eerdmans
Bought passenger-side inner tie rod for my 2001 Chevy Prizm (E110 chassis, post-Geo brand discontinuation era). Vaz emphasized the Geo-to-Chevy brand transition 1998 and that my Chevy Prizm is the same vehicle as late Geo Prizm and Toyota Corolla AE111. Sourced from a 2002 Toyota Corolla donor (same NUMMI vehicle). One star off because inner tie rod replacement was more complex than the outer I did previously - needed special tool I had to rent. The cross-reference flexibility (Geo/Chevy/Toyota
What was NUMMI and why does it matter for my Geo Prizm?
NUMMI (New United Motor Manufacturing Inc) was a joint venture between General Motors and Toyota that operated in Fremont California from 1984-2010. It produced Geo/Chevy Prizm and Toyota Corolla on the same assembly line - same vehicles with different badging. NUMMI was significant because it brought the Toyota Production System (lean manufacturing, just-in-time, kaizen, etc.) to US manufacturing for the first time. The Geo Prizm and Toyota Corolla from NUMMI shared the high-quality Toyota engineering with manufacturing efficiencies. After joint venture ended 2010, the NUMMI plant became Tesla Motors' main facility. Your Geo Prizm benefits from Toyota engineering quality.
I have a Toyota Corolla. Will this Geo Prizm tie rod fit?
YES. The Toyota Corolla and Geo Prizm/Chevy Prizm were the SAME VEHICLE produced at NUMMI plant with different badging. AE92 (1989-1992) Corolla = E90 Prizm. AE100/AE101 (1993-1997) Corolla = E100 Prizm. AE111/AE112 (1998-2002) Corolla = E110 Chevy Prizm. Tie rods cross-reference directly between Toyota Corolla and Prizm of same year. Specify your Corolla year and tie rod type (inner or outer).
What's the difference between inner and outer tie rod?
They're different parts of the same tie rod system. INNER tie rod threads into the end of the steering rack and has a ball joint at its outer end. OUTER tie rod end has a threaded adjuster that connects to the inner tie rod and a ball joint at its outer end that connects to the steering knuckle on the wheel hub. The outer tie rod end is more commonly replaced because it's more exposed and wears faster. The inner tie rod is replaced less often. Many shops replace both together for complete service life. Specify which you need at order.
How do I know if my tie rod needs replacement?
Common symptoms: (1) Loose or wandering steering. (2) Clunking noise from front suspension when going over bumps. (3) Uneven tire wear (especially inner or outer edge wear). (4) Wheel alignment that won't stay set. (5) Visible play when shaking wheel side-to-side at 9 and 3 o'clock positions. (6) Torn or damaged tie rod boot. Have a mechanic inspect to determine which tie rod (inner or outer, driver or passenger) needs replacement.
Why is wheel alignment required after replacement?
Tie rod position determines toe angle (how much wheels point in or out). When you replace a tie rod, you'll inevitably change the toe setting. Without proper alignment after, you'll have: (1) Severe tire wear (premature inner or outer edge wear). (2) Poor handling (wandering, pulling). (3) Steering wheel off-center. Alignment shop will set proper toe (and check camber/caster) for correct tire wear and handling. Cost typically $75-150 for 4-wheel alignment. NEVER skip alignment after tie rod replacement.
How do I install a tie rod?
Outer tie rod end (easier DIY 1-2 hours): (1) Loosen and remove castle nut and cotter pin from outer tie rod end ball joint. (2) Use ball joint separator (pickle fork or press-type tool) to separate ball joint from steering knuckle. (3) Loosen jam nut on inner/outer threaded connection. (4) Count threads or measure for replacement reference. (5) Thread outer tie rod off inner tie rod. (6) Thread new outer tie rod onto inner the same count. (7) Reinstall ball joint into knuckle, install castle nut and cotter pin, torque to spec. (8) Get wheel alignment immediately. Inner tie rod more difficult, often requires special tools. Recommend professional installation for inner tie rod.
I have a 2003 Toyota Corolla. Will this fit?
NO, generation transition. The E110 generation (Geo/Chevy Prizm and Toyota Corolla through 2002) used different parts from the E120 generation (Toyota Corolla 2003+, Prizm discontinued). 2003+ Corolla uses different chassis/components. Your 2003 Corolla needs E120-specific tie rod. We can source those separately - call (240) 301-0095.
How does shipping work?
Free shipping to all 50 US states. Tie rod weighs 0.5-2 lbs in padded box with boot and ball joint protected. UPS or FedEx Ground. 3-7 business days. Bubble wrap, threaded ends protected.
15 Day Replacement Warranty
Covered:
Defects at delivery (ball joint play not disclosed, boot torn not disclosed, threaded damage)
Not Covered:
Damage from improper installation
Damage from over-torquing
Normal wear
Alignment costs. always get wheel alignment after tie rod replacement - critical for tire wear and steering safety
Contact (240) 301-0095 within 15 days.
For Geo/Chevy Prizm Tie Rod: 1989-2002 coverage
Geo Brand Era Documented: 1989-1997
NUMMI Joint Venture Context: GM-Toyota Fremont CA 1984-2010
Toyota Production System Heritage: First in US
Three Generations Coverage: E90/E100/E110
Chevy Prizm Continuation Documented: 1998-2002
Toyota Corolla Cross-Reference: Same NUMMI vehicle
