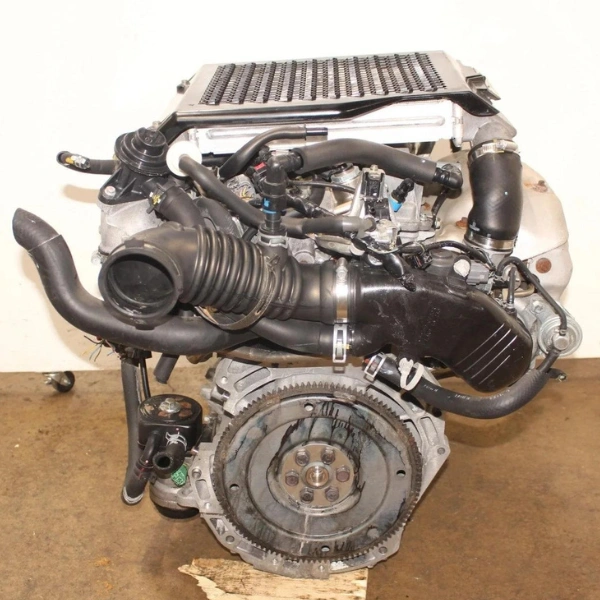

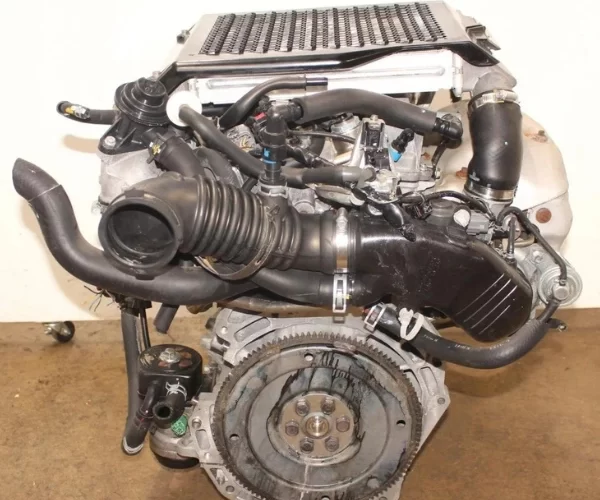

Mazda CX-7 Engine for Sale

About the Mazda CX-7 Engine

Breathe new life into your old CX-7 with our Mazda CX-7 engine for sale here, featuring one of Mazda's most acclaimed engineering achievements: DISI (Direct Injection Spark Ignition) combined with turbocharging. The engine carries the legacy of Mazda's MZR family being technologically advanced. The Mazda CX-7 is typically powered by the L3-VDT engine for sale here.

Engine Overview: CX-7 L3-VDT

The L3-VDT engine roaring under the hood of the Mazda CX-7 is a turbocharged inline-4 cylinder engine, featuring advanced technology like Mazda's DISI direct injection. The key focus of this engine is to deliver a responsive driving experience while maintaining reasonable fuel economy. The CX-7 engine for sale here ensures precise fuel delivery for optimal power and efficiency. Even though the engine has 244 HP, when you consider its 2.3 liter displacement, it is pretty powerful with 258 lb-ft of torque. Manufactured between 2006 and 2012, this engine can also fit some other Mazda models from those years (Mazdaspeed3, Mazdaspeed6 / Mazda6 MPS) with different ECU tuning.

The L3-VDT Engine Family: A Performance Heritage

The L3-VDT is part of Mazda's MZR engine family but distinguishes itself as the highest-performance variant. The engine was used in three notable Mazda vehicles, each with slightly different tuning:

The CX-7 uses a slightly milder tune (244 HP vs 263-274 HP for Mazdaspeed variants) but with the same fundamental engine architecture. This shared heritage is valuable because:

• Cross-compatibility of parts: Many internal components, the K04 turbocharger, and fuel system parts are shared
• Tuning options: The CX-7 can be tuned to Mazdaspeed3 or Mazdaspeed6 output levels with ECU tuning, since the engine architecture supports it
• Performance modifications: The aftermarket developed extensively for Mazdaspeed variants, and most modifications are applicable to the CX-7

Understanding DISI (Direct Injection Spark Ignition)

The DISI in L3-VDT stands for Direct Injection Spark Ignition , Mazda's branding for high-pressure direct injection technology. Key advantages:

• Direct Fuel Injection into Combustion Chamber: Rather than spraying fuel into the intake port (port injection), DISI sprays fuel directly into the cylinder at high pressure (typically 1,500+ psi)
• Improved Combustion Control: Fuel mixes more thoroughly and precisely with combustion air
• Higher Compression Ratio Possible: DISI engines can use higher compression ratios than typical port-injected turbo engines (the L3-VDT runs 9.5:1, higher than many port-injected turbo engines)
• Improved Fuel Economy: More efficient combustion means better mileage
• More Power per Liter: Higher specific output than non-DISI turbo engines

DISI was relatively new technology when the L3-VDT launched in 2006, putting Mazda at the forefront of turbocharged direct injection technology.

The Mazda CX-7: 2006-2012 Compact Crossover

The Mazda CX-7 was Mazda's compact crossover SUV produced 2006 to 2012, sized between the smaller Mazda 3 and the larger CX-9. Key characteristics:

• Body Code: ER chassis
• Body Style: 5-passenger 2-row compact crossover SUV
• Engine Options: L3-VDT 2.3L DISI Turbo (primary), L5-VE 2.5L MZR naturally aspirated (added in later production years for base trim)
• Drivetrain: Front-wheel drive standard, all-wheel drive optional
• Production: 2006 to 2012, replaced by the CX-5 (2012+)

Note: Some sources mention a "3.5L V6 for certain markets" for the CX-7. This appears to be a misattribution , the Mazda CX-7 was offered with the L3-VDT 2.3 turbo (primary) and L5-VE 2.5L naturally aspirated 4-cylinder (later years), but NOT with a 3.5L V6 in any market. The 3.5L V6 reference may be confused with the CX-9 first-generation 3.5L / 3.7L V6.

Key Engineering Features of the L3-VDT

• Single K04-Series Turbocharger: Compact, responsive turbocharger producing approximately 15 psi of boost
• Air-to-Air Intercooler: Top-mounted intercooler (in CX-7 application, mounted differently than Mazdaspeed3)
• DISI Direct Injection: High-pressure direct fuel injection
• Dual Variable Valve Timing (S-VT): Continuous variable timing on both intake and exhaust camshafts
• Aluminum Block and Head: Lightweight construction
• MZR Family Architecture: Shared parts and service with other MZR engines
• 9.5:1 Compression Ratio: Relatively high for a turbocharged engine

Common L3-VDT Service Items (Honest Disclosure)

Honest disclosure of known service items:

• Carbon Buildup on Intake Valves: DISI direct injection means no fuel washes the back of intake valves, allowing carbon buildup at 60,000-80,000 miles. Walnut blasting service ($400-600) addresses this.
• High-Pressure Fuel Pump (HPFP): HPFP failures are known on L3-VDT engines, particularly in Mazdaspeed3 / Mazdaspeed6 applications. CX-7 less affected but still possible.
• Turbocharger Wear: K04 turbo can wear at high mileage (typically 100,000+ miles). Symptoms include excessive smoke, oil consumption, or boost issues.
• VVT Actuator (S-VT): VVT actuators can develop issues at high mileage. Diagnostic codes typical.
• Cam Chain Wear: Some high-mileage L3-VDT engines develop cam chain stretch.
• Oil Quality Critical: ALWAYS use 5W-30 full synthetic oil meeting Mazda specification. Cheap oil causes turbo and HPFP failures.

Why Choose a Used L3-VDT Engine?

• Cost savings vs reman ($1,499 used vs $3,500-$6,000 reman plus core)
• Direct OEM fit for Mazda CX-7 2006-2012
• Cross-compatible with Mazdaspeed3 and Mazdaspeed6 applications (with ECU programming)
• Performance heritage , same engine family as Mazda's halo performance vehicles
• Tuning potential , CX-7 can be tuned to Mazdaspeed levels and beyond
• Direct injection technology , advanced fuel delivery for the era

Here at Vaz Auto Solutions, you'll find this Mazda CX-7 L3-VDT engine for sale at the most reasonable price possible, with engine code verification, K04 turbo inspection, and Mazda DISI specialist support.

Vehicle Compatibility

Direct Fit:

Cross-Compatible Same Engine Family (Different Tunes):

NOT Compatible (Different Mazda Engines):

Condition and Inspection

• Engine code verified (L3-VDT)
• Donor vehicle confirmed (CX-7 vs Mazdaspeed3 vs Mazdaspeed6 / Mazda6 MPS)
• Compression tested all 4 cylinders
• Oil pressure verified at idle and operating speed
• K04 turbocharger condition assessed (impeller, shaft play, oil seal)
• DISI direct injection fuel injectors tested
• High-pressure fuel pump (HPFP) condition assessed (known service item)
• S-VT variable valve timing system tested (intake and exhaust)
• Intercooler condition checked
• Spark plug condition documented
• Cam chain condition assessed where observable
• PCV system function verified
• Miles from donor vehicle documented where available
• L3-VDT engine code verified
• CX-7 vs Mazdaspeed3 vs Mazdaspeed6 donor identification
• All 4 cylinders compression tested
• K04 turbocharger condition documented
• DISI direct injection system tested
• High-pressure fuel pump condition assessed
• S-VT variable valve timing verified
• Mazda MZR / DISI specialist support team
• Cross-reference assistance for Mazdaspeed applications
• Free freight pallet delivery to all 50 states
• 15 day replacement warranty on internal defects
