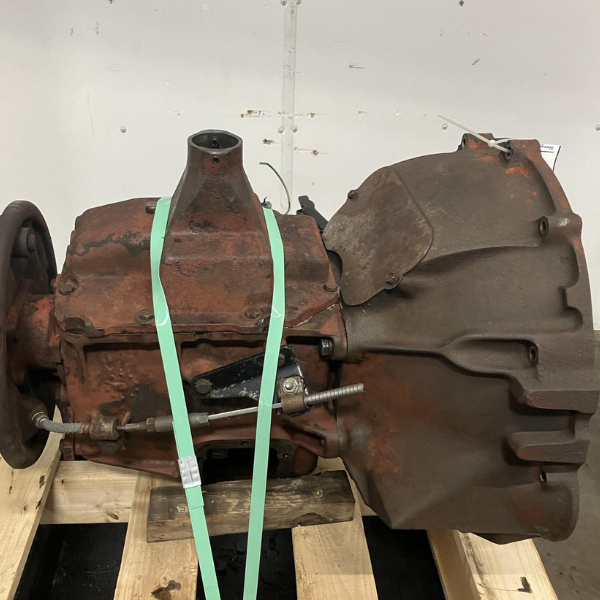

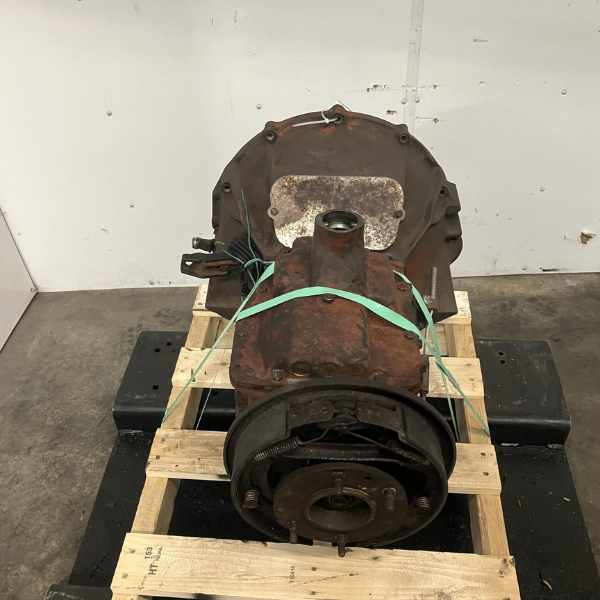

SM420 Transmission for Sale | GM Heavy-Duty 4-Speed Manual with Granny Low Gear (1947-1967)

Description

About the SM420 Transmission

The SM420 is a heavy-duty manual transmission introduced by General Motors in 1947, which lasted for two decades before production ended in 1967. This SM420 Transmission for sale at Vaz Auto Solutions was a favorite among truck owners, off-road enthusiasts, and military operators. The SM420 was also widely used in military vehicles during the Korean War and early Vietnam War era light-truck applications.

The Granny Gear, Why The SM420 Is Famous

The single feature that made the SM420 legendary is its 7.05:1 first gear ratio, often called the “granny low“ or “granny gear.“ This extraordinarily low first gear provides mechanical advantage that no modern transmission can match, allowing the SM420 to crawl over obstacles, pull heavy loads up steep grades, and provide the kind of low-speed control that off-road crawlers and heavy haul operators require. Combined with the stout case construction and hardened gears, this gear ratio is why the SM420 remains a top choice for:

• Off-road and rock-crawler builds (Jeep conversions, heavy 4×4 builds)
• Classic Chevrolet and GMC truck restorations
• Heavy-duty hot rod / street rod applications
• Tow trucks and wreckers requiring extreme low-speed pulling
• Military and ex-military light vehicle restorations

Features of the SM420 Transmission

• Durability and Strength: The SM420’s hardened gears, deep-skirt cast iron case, and stout shaft assemblies make it practically immune to wear under typical truck-duty cycles. It easily handles torque loads beyond its 250 lb-ft factory rating in service.
• Manual Control: As a fully mechanical manual transmission, the SM420 provides direct driver control of gear selection. There are no electronic shift solenoids, no torque converter, and no automatic logic; you select the gear, you control the engagement.
• Non-Synchronized Lower Gears: The SM420 is a 4-speed manual with synchronizers only on 3rd and 4th gears. 1st gear (the granny low), 2nd gear, and reverse are non-synchronized. This means downshifts into 1st or 2nd require double-clutching to match engine and transmission shaft speeds. This is a normal characteristic of older heavy-duty manual transmissions and part of the SM420’s authentic mechanical feel.
• Mechanical Simplicity: No electronic components, no solenoids, no computer control. The SM420 provides a pure mechanical connection between engine and driveline that enthusiasts appreciate for its tactile feedback and bulletproof reliability.
• Off-Road Capability: The 7.05:1 granny low gear is the foundation of the SM420’s off-road reputation. With appropriate transfer case gearing, this transmission delivers crawl ratios that no modern automatic can match.

Compatibility (Vehicles)

The SM420 was original-fitment in the following GM trucks:

• Chevrolet Advance Design Trucks (1947 to 1955), the iconic post-war Chevy truck with the bullnose styling
• Chevrolet Task Force Trucks (1955 to 1959), the second-series 1955 through 1959 Chevy trucks
• GMC New Design Trucks (1947 to 1955), GM’s GMC-branded version of the Advance Design
• GMC Blue Chip Trucks (1955 to 1959), GM’s GMC-branded second-series

The SM420 was also installed in some heavy-duty Chevrolet / GMC light-medium chassis through 1967. After 1967, GM transitioned to the SM465 (similar 4-speed architecture with granny gear, slightly updated synchronizer arrangement).

Common Engine Pairings

The SM420 was originally paired with Chevrolet’s Stovebolt Inline-6 family of engines and Chevrolet small-block V8s (when adapted with bellhousing changes). Common pairings include:

• Chevrolet 235 cubic inch (3.9L) Stovebolt Inline-6 (note: this is an inline-6, not a V8 as some references incorrectly state)
• Chevrolet 261 cubic inch (4.3L) Stovebolt Inline-6 (also an inline-6, the larger Stovebolt variant)
• GMC 270 cubic inch and 302 cubic inch Inline-6 engines (GMC-branded straight sixes)
• Chevrolet small-block V8 (283, 327, 350) when adapted with Chevy V8 bellhousing
• Various GMC V8 variants when adapted

For modern engine swaps (LS, Cummins R2.8, etc.), the SM420 can be adapted with appropriate bellhousing adapter plates from companies like Advance Adapters.

Advantages of the SM420 Transmission

The SM420 transmission is renowned for its advantages in various applications:

• Off-Road Capability: The exceptionally low first gear ratio (7.05:1) makes it ideal for crawling and rugged terrains
• Durability: Built to withstand heavy-duty use in trucks, buses, and heavy equipment
• Mechanical Simplicity: No electronics to fail, fully mechanical operation
• Restoration Authenticity: Period-correct for classic Chevrolet and GMC truck restorations
• Aftermarket Support: Rebuild kits, gear sets, and adapter plates are widely available

Here at Vaz Auto Solutions, you’ll find the best quality used SM420 transmission for sale at a very reasonable price. Get your SM420 transmission today and experience the difference in performance and durability.

Signs You Need a Replacement SM420

• Difficulty engaging or holding 1st (granny) gear
• Grinding when shifting into 3rd or 4th (synchronizer wear)
• Slipping out of gear under load
• Fluid leak at the front, rear, or shift cover
• Unusual noises (whining, growling, knocking) at speed
• Donor classic Chevy or GMC truck totaled, transmission being moved to another chassis
• Modern engine swap (LS, Cummins, etc.) requiring a heavy-duty manual with granny gear
• Off-road crawler build requiring extreme low-speed mechanical advantage

Common SM420 Maintenance Considerations

• Gear Oil: Use GL-4 spec 80W-90 or 90W gear oil (NOT GL-5, which contains additives that can damage the brass synchronizer rings). Change every 30,000 to 50,000 miles for normal use, more frequently for off-road or severe duty.
• Synchronizer Rings: The 3rd and 4th gear synchronizer rings (brass) are wear items at high mileage. They can be replaced during rebuild without disturbing the rest of the transmission.
• Bearings: Front and rear bearings are wear items at high mileage; replace during any rebuild.
• Tail Housing Seal: A common leak point on aging SM420s. Easy fix during regular service.

What Is Included, What Is Not Included

Vehicle Compatibility

The SM420 fits the following classic GM truck chassis:

For modern hot rod / engine swap applications, the SM420 can be adapted to virtually any modern engine via bellhousing adapter plates (Advance Adapters, Wilcap, etc.).

Condition and Inspection

Every used SM420 transmission we ship goes through this process:

• All 4 forward gears plus reverse function tested
• Granny low (1st gear, 7.05:1) engagement verified
• Synchronizer condition assessed (3rd and 4th gears)
• Visual inspection of case for cracks (bellhousing area, tail, mounting surfaces)
• Output shaft inspected for wear or scoring
• Output shaft spline count documented
• Bellhousing pattern confirmed (Chevy Stovebolt vs Chevy V8 vs GMC)
• Donor truck application photographed and documented
• Approximate mileage documented when verifiable

Why Buy From Vaz Auto Solutions

• All 4 forward gears plus reverse function tested before shipping
• Granny low (7.05:1 first gear) engagement specifically verified
• Synchronizer condition documented (3rd and 4th gears)
• Output shaft spline count documented for driveshaft mating
• Bellhousing pattern confirmed for engine compatibility
• Donor truck application traced (Advance Design, Task Force, New Design, Blue Chip)
• Free freight pallet delivery to all 50 states
• 15 day replacement warranty on internal defects
• Classic GM truck transmission experienced support team on the phone with knowledge of SM420 / SM465 differences and bellhousing pattern compatibility
