Description

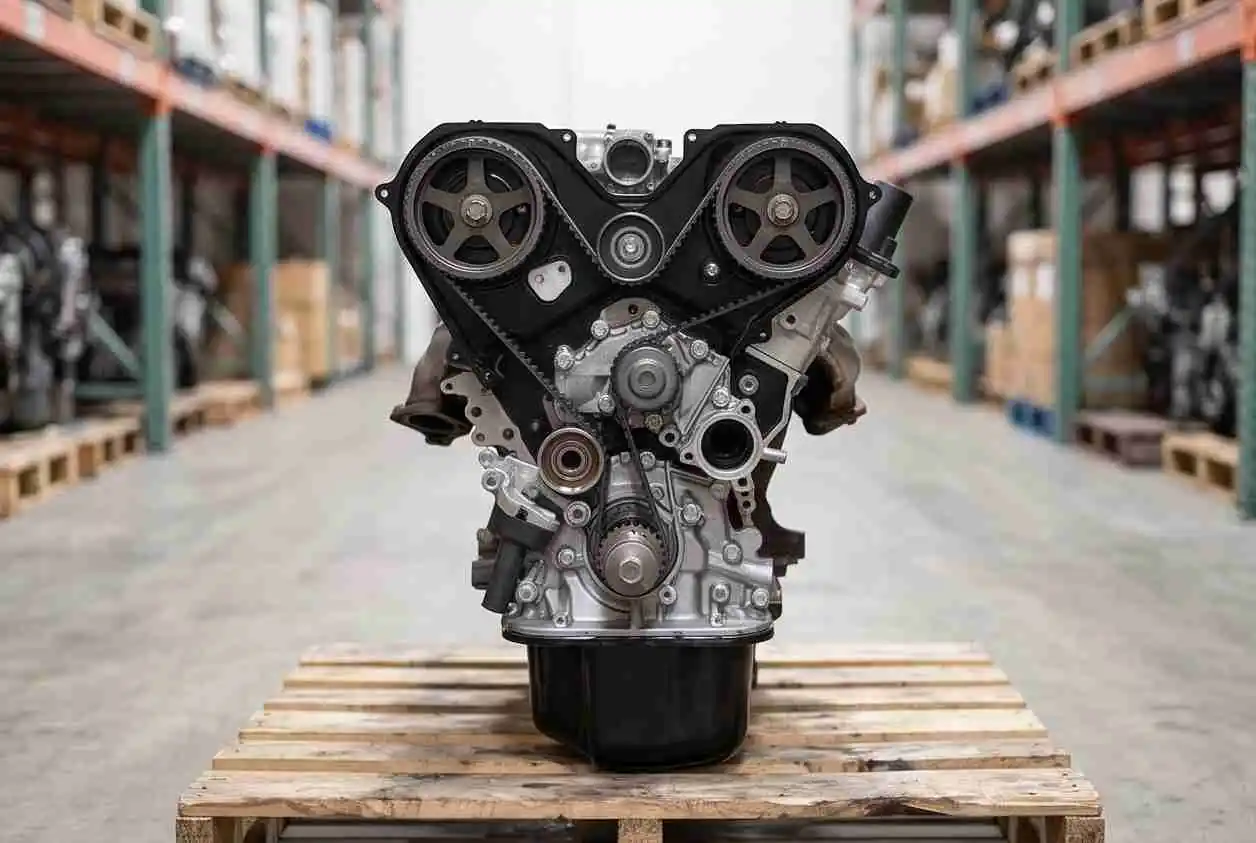

About the Toyota 5VZ-FE Engine
The year 1995 marked a significant evolution in Toyota’s V6 lineup. Succeeding the 3VZ-E engine, the 5VZ-FE engine offered such a blend of power and efficiency that it was on the top of the wishlists of enthusiasts and practical drivers alike. Robustly constructed and with reliable performance, the Toyota 5VZ-FE engine for sale here is synonymous with Toyota’s truck engineering excellence.
With a reputation as a workhorse, the engine delivers smooth power across different driving conditions. The 5VZ-FE engine has legendary durability and provides strong performance for many years when properly maintained.
If you have a Toyota project, restoration, or are working on a DIY build, this 5VZ-FE engine for sale here offers an amazing combination of power, reliability, and durability. It’s an engine that promises not just performance, but peace of mind for miles to come.
Overview of the Toyota 5VZ-FE Engine
The Toyota 5VZ-FE engine has been a go-to choice for both off-road enthusiasts and daily drivers because of its smooth power delivery and torque. Coming from Toyota’s VZ family of engines, the engine incorporates DOHC architecture that produces 183 horsepower at 4,800 RPM and 217 lb-ft of torque at 3,600 RPM (per live page specifications). The adaptability, robust nature, reliability, and longevity of this engine make it a sought-after option for engine swaps and upgrades in the Toyota community.
Important Spec Clarifications
NO VVT-i
The live product page description references “Variable Valve Timing”, but the 5VZ-FE does NOT have VVT-i (Variable Valve Timing with intelligence). The 5VZ-FE is universally documented in Toyota’s official specifications as a DOHC engine with FIXED valve timing. VVT-i was added in the 1GR-FE successor (4.0L V6 in 2003+ Tacoma and 4Runner). Buyers should not expect VVT-i operation from this engine.
Timing BELT (Not Chain)
The 5VZ-FE uses a timing BELT, not a timing chain. This is critical to understand:
- Service interval: 60,000-90,000 miles
- Interference engine: Belt failure causes engine damage
- Service cost: $400-800 typically (belt + tensioner + idler + water pump kit)
- DIY difficulty: Moderate (specific timing setup required)
This differs from Toyota’s 4-cylinder truck engines (22R-E, 3RZ-FE) which use timing chains with no scheduled service.
Position in Toyota’s Truck Engine Lineage
| Engine | Years | Cylinders | HP | Torque | Notable |
|---|---|---|---|---|---|
| 3VZ-E | 1988-1995 | V6 SOHC | 145-150 HP | 180 lb-ft | The first V6 |
| 5VZ-FE (This Listing) | 1995-2004 | V6 DOHC | 183 HP | 217 lb-ft | DOHC upgrade |
| 1GR-FE | 2003-Present | V6 DOHC VVT-i | 236-278 HP | 266-278 lb-ft | Modern V6 |
The 5VZ-FE was the major upgrade from the older 3VZ-E:
- Displacement increased: 3.0L → 3.4L
- Valvetrain upgraded: SOHC 12-valve → DOHC 24-valve
- Power increased: 150 HP → 183 HP (22% increase)
- Torque increased: 180 lb-ft → 217 lb-ft (21% increase)
5VZ-FE Engine Specifications
| Feature | Specification |
|---|---|
| Engine Code | 5VZ-FE (VZ-series family) |
| Configuration | V6 60° DOHC |
| Displacement | 3.4L (3,378 cc) |
| Bore x Stroke | 93.5 mm x 82.0 mm |
| Compression | 9.6:1 |
| HP | 183 HP at 4,800 RPM |
| Torque | 217 lb-ft at 3,600 RPM |
| Fuel System | Sequential MPFI |
| Valvetrain | DOHC, 24 valves, NO VVT-i |
| Block | Cast iron |
| Heads | Aluminum (DOHC, 2 separate) |
| Timing | Timing belt (60-90k mi service) |
| Production | 1995-2004 (US market) |
Vehicle Applications (Direct Fit)
Toyota Tacoma V6 (1995-2004) , 1st Generation
The Tacoma V6 alternative to the 4-cylinder 3RZ-FE:
- HP: 183 HP (vs 150 HP for 3RZ-FE 4-cyl)
- Torque: 217 lb-ft (vs 177 lb-ft for 3RZ-FE)
- Performance: More capable for towing and hauling
- Production: 1995-2004 1st generation Tacoma V6
- Cross-reference: See our Toyota Tacoma 2.7 Engine and Toyota 3RZ Engine listings for the 4-cyl alternative
Toyota 4Runner V6 (1996-2002) , 3rd Generation
The legendary 3rd generation 4Runner V6 application:
- HP: 183 HP
- Torque: 217 lb-ft
- Body style: 4-door SUV with leaf-spring rear suspension (early) or coil-spring (later)
- Drivetrain: 2WD and 4WD with manual or automatic
- Production: 1996-2002 3rd generation 4Runner
- Highly desired: 3rd gen 4Runner is widely considered the most reliable 4Runner generation
- Cross-reference: 4-cyl option used the 3RZ-FE
Toyota T100 V6 (1995-1998)
Toyota’s mid-size pickup V6 upgrade:
- HP: 183 HP (vs 150 HP 3VZ-E predecessor)
- Body style: Regular cab and Xtra Cab
- Production: 1995-1998 T100 with 5VZ-FE V6
- T100 succession: T100 was replaced by Tundra in 2000
Toyota Tundra V6 Base (2000-2004) , 1st Generation
The 4-door Tundra base V6 engine:
- HP: 183 HP
- Body style: Access Cab (most common Tundra V6 application)
- Note: Most 1st gen Tundras had the V8 (2UZ-FE 4.7L); the V6 was the budget base option
- Production: 2000-2004 1st generation Tundra V6
- Replaced: By 1GR-FE 4.0L V6 in 2005+ Tundra
Cross-Reference to Batch 47 Listings (4-Cylinder Alternatives in Same Chassis)
The 5VZ-FE V6 was the upgrade option to Toyota’s 4-cylinder engines in the same chassis:
| Vehicle | 4-Cyl Option | V6 Option (This Listing) |
|---|---|---|
| Tacoma (1995-2004) | 3RZ-FE (150 HP, 177 lb-ft) , see batch 47 | 5VZ-FE (183 HP, 217 lb-ft) |
| 4Runner (1996-2002) | 3RZ-FE (150 HP) , see batch 47 | 5VZ-FE (183 HP) |
| T100 (1995-1998) | 3RZ-FE (150 HP) | 5VZ-FE (183 HP) |
| Tundra (2000-2004) | (no 4-cyl) | 5VZ-FE base or V8 |
- Buyers choosing between 4-cyl and V6 typically consider:
- Fuel economy: 4-cyl better (~22-25 MPG vs ~16-20 MPG for V6)
- Towing: V6 better (~5,000 lbs vs ~3,500 lbs for 4-cyl)
- Power: V6 noticeably stronger (33 HP / 40 lb-ft more)
- Reliability: Both excellent
- Cost: 4-cyl typically lower replacement cost
Why the 5VZ-FE Has Earned Strong Reputation
DOHC Architecture
The 5VZ-FE was Toyota’s first DOHC V6 in the truck lineup:
Better breathing than SOHC 3VZ-E predecessor
Smoother power delivery
Higher RPM operation
Improved emissions compliance
Cast Iron Block
Withstands abuse and high mileage
Off-road impact durability
Towing duty cycles
300,000-400,000+ miles common
Conservative Toyota Tuning
Moderate compression (9.6:1)
Generous oiling system
Robust components
Designed for longevity over peak performance
Aluminum DOHC Heads
Lightweight
Better cooling than older designs
Two separate heads (one per bank)
Common 5VZ-FE Service Items (Honest Disclosure)
The 5VZ-FE is generally a reliable engine. Documented service items at high mileage include:
Timing Belt Service (Critical , Interference Engine)
The primary 5VZ-FE service item:
- Service interval: 60,000-90,000 miles
- CRITICAL: Belt failure causes catastrophic engine damage
- Service: $400-800 with belt, tensioner, idler, and water pump
Strongly recommended at any unknown service history
Water Pump
- Service interval: 60,000-90,000 miles (typically with timing belt)
- Recommended: Replace with timing belt service
Valve Cover Gasket Leaks
- At 100,000+ miles: Common service item
- Service: $30-60 per gasket (two banks)
Knock Sensor Failures (Documented Issue)
- Symptoms: Check engine light, reduced performance
- Service: Knock sensor replacement ($100-200) , requires intake manifold removal which adds labor
Throttle Position Sensor
- At high mileage: Can develop drift causing erratic idle
- Service: $50-100 part
Idle Air Control Valve
- At very high mileage: Can clog producing rough idle
- Service: Cleaning or replacement
Oxygen Sensor Service
- 60,000-100,000 mile interval typical: NGK or Denso OEM replacement
Distributor Cap and Rotor (1995-1997)
- Pre-OBD2 5VZ-FE: Uses distributor cap and rotor service
- 1998+ 5VZ-FE: Coil-on-plug, no distributor
Why Choose a Used Toyota 5VZ-FE Engine?
- Cost savings vs reman ($2,099 used vs $3,500-5,500 reman plus core)
- Direct fit for Tacoma V6, 4Runner V6, T100 V6, Tundra V6 base
- Legendary Toyota reliability , one of Toyota’s most respected V6 engines
300,000-400,000+ mile expected lifespan
- Regular 87 octane fuel , inexpensive operation
- DOHC 24-valve upgrade over 3VZ-E predecessor
Cast iron block durability
- Variant matching , we verify 5VZ-FE specifically vs 3VZ-E predecessor or 1GR-FE successor
- V6 alternative , for buyers wanting more power than 3RZ-FE 4-cyl
Here at Vaz Auto Solutions, you’ll find this Toyota 5VZ-FE engine for sale at fair pricing, with variant verified, donor vehicle confirmed, all 6 cylinders compression tested, DOHC camshafts assessed, timing belt condition assessed (critical for interference engine), cast iron block inspected, and complete inspection.
Vehicle Compatibility
Direct Fit:
| Toyota Tacoma V6 (1st generation) | 1995-2004 with 3.4L V6 engine option |
|---|---|
| Toyota 4Runner V6 (3rd generation) | 1996-2002 with 3.4L V6 engine option (the legendary 3rd gen 4Runner) |
| Toyota T100 V6 | 1995-1998 with 3.4L V6 engine (replaced 3VZ-E in late 1995) |
| Toyota Tundra V6 Base (1st generation) | 2000-2004 base V6 variant (most Tundras had V8 or 5VZ-FE V6) |
| NOT Compatible | 2003+ 4Runner uses 1GR-FE (DOHC 4.0L V6 with VVT-i); 2005+ Tacoma uses 1GR-FE; older 3VZ-E vehicles need 3VZ-E |
Condition and Inspection
Variant verified (5VZ-FE 3.4L DOHC, NOT 3VZ-E predecessor or 1GR-FE successor)
Donor vehicle confirmed (Tacoma V6, 4Runner V6, T100 V6, or Tundra V6 base)
All 6 cylinders compression tested
Oil pressure verified at idle and operating speed
- DOHC camshaft condition assessed (both intake and exhaust cams on both banks)
Camshaft journal wear inspected
- NO VVT-i , standard fixed valve timing (clarification of live page description)
- Timing belt condition assessed (CRITICAL , interference engine)
Timing belt tensioner condition verified
Idler pulley condition checked
Water pump condition checked (recommended replacement with timing belt)
Cylinder head condition assessed (aluminum DOHC heads, both banks, warping check)
Head gasket condition verified
Cast iron block condition inspected
Hydraulic valve lifter function verified
Knock sensor function verified (documented service area)
Throttle position sensor function verified
Oxygen sensor function verified
Coolant system function verified
Spark plug condition documented (6 plugs)
Distributor cap and rotor condition checked (1995-1997 variants)
Coil-on-plug ignition condition verified (1998-2004 variants)
Miles from donor vehicle documented where available
Variant correctly identified (5VZ-FE 3.4L DOHC, not confused with 3VZ-E or 1GR-FE)
Honest disclosure of NO VVT-i (live page description error clarified)
All 6 cylinders compression tested
DOHC camshaft condition verified
Timing belt condition assessed (critical for interference engine)
Cast iron block inspected
Water pump assessed
Knock sensor function verified (documented service area)
Donor vehicle and mileage documented
Cross-reference assistance across Tacoma / 4Runner / T100 / Tundra applications
Cross-reference to batch 47 3RZ-FE 4-cylinder alternative
Toyota VZ-series engine family expertise
3VZ-E to 5VZ-FE successor cross-reference
5VZ-FE to 1GR-FE successor cross-reference
Free freight pallet delivery to all 50 states
15 day replacement warranty on internal defects
Toyota truck V6 specialist support team
