About the Chevy S10 Transmission
Boost your Chevy S10, GMC Sonoma, S10 Blazer, or GMC Jimmy with our quality used S10 transmissions. This American compact truck favorite was offered with several reliable transmission options over its 1982-2004 production run, and we cover the most popular ones here. Whether you’re restoring a worn-out S10, looking to upgrade your Sonoma, or replacing the transmission in your Blazer, this gearbox delivers the control and responsiveness you need. Don’t let transmission problems get in your way , put your Chevy S10 into high gear with our Chevy S10 transmission for sale here.
Introduction to Chevy S10 Transmissions: Full Family Coverage
The Chevy S10 platform used multiple transmissions throughout its 1982-2004 production. The most popular S10 transmissions on the used market are:

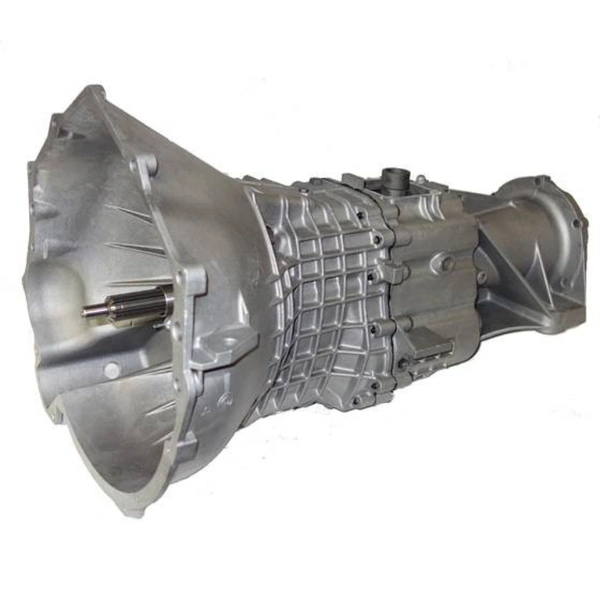

NV3500 / 5LM60 5-Speed Manual (1994-2004) , MOST IN-DEMAND VARIANT
The Chevy NV3500 (also called 5LM60 in GM nomenclature) is the most popular and most-searched S10 transmission. Specifications:
- Type: 5-speed manual with overdrive 5th gear
- Years: 1994-2004 across S10, Sonoma, S10 Blazer, GMC Jimmy
- Engine Pairings: 2.2L inline-4, 4.3L Vortec V6
- Construction: Cast aluminum case, cast iron extension housing
- Torque Capacity: ~240-270 lb-ft
- Available: 2WD and 4×4 variants
- Manufacturer: New Venture Gear (joint GM-Chrysler venture)
The NV3500 transmission for sale is the dominant request for S10 owners, particularly the 4.3L Vortec V6 variant. Most used S10 transmissions found in the market are NV3500s due to its 11-year production run.
Getrag HM290 5-Speed Manual (1988-1993)
The earlier S10 5-speed manual. Specifications:
- Type: 5-speed manual with overdrive 5th gear
- Years: 1988-1993 S10 applications
- Engine Pairings: 2.5L Iron Duke inline-4, 2.8L V6
- Construction: Cast aluminum case
- Manufacturer: Muncie / Getrag jointly designed
- Torque Capacity: ~220-260 lb-ft
The HM290 (sometimes simply called “the 290”) was the S10 5-speed manual before the NV3500 took over in 1994.
Borg-Warner T5 5-Speed Manual (1982-1987 early)
The earliest S10 5-speed manual:
- Type: 5-speed manual
- Years: 1982-1987 early S10 applications
- Engine Pairings: 1.9L 4-cylinder, 2.5L Iron Duke, 2.8L V6 early
4L60 / 4L60E Automatic (1982-2004)
The S10 automatic transmission options:
- 4L60 (hydraulic, 1982-1992): Earlier 4-speed automatic with overdrive
- 4L60E (electronic, 1993-2004): Updated electronic version, used through end of S10 production
- Engine Pairings: 2.2L inline-4, 4.3L Vortec V6
TH-180 / TH-200 / TH-350 (Various Older S10s)
Earlier automatic options for older S10 applications.
Why the NV3500 Dominates S10 Transmission Demand
The NV3500 / 5LM60 is by far the most requested S10 transmission for several reasons:
- Longest production run: 11 years (1994-2004) in S10 applications
- Strong reputation: Reliable when maintained, adequate torque capacity for 2.2L I4 and 4.3L Vortec V6
- Popular engine pairing: The 4.3L Vortec V6 + NV3500 combination is a beloved S10 setup
- Aftermarket support: Strong rebuild parts availability
- Hot rod / swap popularity: NV3500s are popular for engine swaps and street rod builds
Whether you‘re searching for “NV3500 transmission for sale,“ “NV3500 transmission 4×4 for sale,“ “NV3500 manual transmission for sale,“ “used NV3500 transmission,“ or “chevy nv3500 for sale,“ we can help match the right S10 transmission to your application.
S10 Transmission Comparison Chart
| Transmission | Type | Years (S10) | Speeds | Engine Pairings |
|---|---|---|---|---|
| NV3500 / 5LM60 | Manual | 1994-2004 | 5-speed | 2.2L I4, 4.3L Vortec V6 |
| Getrag HM290 | Manual | 1988-1993 | 5-speed | 2.5L Iron Duke, 2.8L V6 |
| BorgWarner T5 | Manual | 1982-1987 | 5-speed | 1.9L, 2.5L, 2.8L early |
| 4L60 | Automatic | 1982-1992 | 4-speed | 2.5L, 2.8L, 4.3L early |
| 4L60E | Automatic | 1993-2004 | 4-speed (electronic) | 2.2L I4, 4.3L Vortec V6 |
| TH-200 / TH-350 | Automatic | Older S10s | 3-speed | Various older |
Vehicle Applications
The S10 transmissions (NV3500, HM290, and others) cross-fit several GM compact truck and SUV applications:
| Vehicle | Years | Notes |
|---|---|---|
| Chevy S10 Pickup | 1982-2004 | The original S10 compact truck |
| GMC S15 (early) / GMC Sonoma (later) | 1982-2004 | GMC version, identical mechanically |
| Chevy S10 Blazer | 1995-2005 | The SUV version |
| GMC Jimmy | 1995-2005 | GMC version of S10 Blazer |
| Olds Bravada | Some applications | Upmarket GMC Jimmy |
| Isuzu Hombre | 1996-2000 | S10 platform mate |
| Chevy Tracker | Limited 1999-2004 | Some applications |
2WD vs 4×4 Configurations
S10 transmissions are available in both 2WD (rear-wheel drive) and 4×4 (four-wheel drive) configurations:
- 2WD NV3500: Direct output to driveshaft for rear-wheel drive only
- 4×4 NV3500: Output through transfer case (typically NV231 or NV246) for four-wheel drive
- Different tail housings: 2WD vs 4×4 have different rear transmission housings
- Different output shafts: 4×4 versions have shorter output for transfer case mounting
Critical: when ordering, confirm whether you need 2WD or 4×4 configuration. The two are NOT interchangeable without housing swap (which is a non-trivial repair).
Common S10 Transmission Service Items (Honest Disclosure)
Honest disclosure of known service items:
NV3500 / 5LM60 Service Items:
- 3rd and 5th Gear Synchronizer Wear: Most common high-mileage NV3500 issue (150,000+ miles). Symptoms: grind on shifts.
- Reverse Gear Wear: Some NV3500s develop reverse gear noise at high mileage.
- Input Shaft Bearing Noise: At very high mileage, input shaft bearings can develop noise.
- Output Shaft Seal Leaks: Common service item.
- 5th Gear Pop-Out: Some NV3500s develop tendency for 5th gear to disengage under load.
- Shift Fork Wear: Particularly 3-4 shift fork.
HM290 Service Items:
- Synchronizer Wear: Most common high-mileage issue.
- Internal Bearing Noise: At very high mileage.
- Input Shaft Seal Leaks: Common service item.
Both transmissions are generally durable when maintained per GM specifications. Service interval: fluid every 30,000-50,000 miles, more frequent for heavy use.
Why Choose a Used Chevy S10 Transmission?
- Cost savings vs reman ($1,999 used vs $2,200-$3,500 reman plus core)
- Direct OEM fit for S10, Sonoma, S10 Blazer, GMC Jimmy, and platform mates
- NV3500 most popular , the dominant S10 5-speed manual in the used market
- 2WD and 4×4 variants , application-specific
- Strong aftermarket support , rebuild parts widely available
- Manual transmission , preferred for many S10 enthusiasts
Here at Vaz Auto Solutions, you’ll find this Chevy S10 transmission for sale at the most reasonable price possible, with all 5 forward gears tested, reverse confirmed, variant identified (NV3500, HM290, or other), and 2WD/4×4 configuration matched to your application. Call (240) 301-0095 to confirm specific transmission available and match to your S10 / Sonoma / Blazer / Jimmy year and engine.
Vehicle Compatibility
Direct Fit:
| Vehicle | Compatibility |
|---|---|
| Chevy S10 Pickup | 1982-2004, transmission variant depends on year and engine |
| GMC S15 / Sonoma | 1982-2004, GMC version of S10 |
| Chevy S10 Blazer | 1995-2005, SUV variant |
| GMC Jimmy | 1995-2005, GMC version of S10 Blazer |
| Olds Bravada | Some applications, upmarket SUV |
| Isuzu Hombre | 1996-2000, S10 platform mate |
| Chevy Tracker (limited) | 1999-2004 certain configurations |
Engine Pairings:
| Vehicle | Compatibility |
|---|---|
| Chevy 2.2L Inline-4 | NV3500 manual or 4L60E auto, 1994-2003 base S10 |
| Chevy 4.3L Vortec V6 | NV3500 manual or 4L60E auto, 1994-2004 V6 S10 |
| Chevy 2.8L V6 (early) | HM290 manual or 4L60 auto, 1988-1993 S10 |
| Chevy 2.5L Iron Duke I4 (early) | HM290 manual or 4L60 auto, 1988-1993 S10 |
Condition and Inspection
- Variant verified (NV3500 / 5LM60 or HM290 per current inventory)
- 2WD vs 4×4 output configuration confirmed
- Donor vehicle confirmed (S10, Sonoma, Blazer, Jimmy, Tracker, or Hombre)
- Engine pairing confirmed (2.2 I4, 4.3 Vortec V6, 2.8 V6, or 2.5 Iron Duke)
- Bell housing pattern matched to engine
- All 5 forward gears tested (manual variant)
- Reverse gear tested
- All synchronizers function assessed
- 3rd and 5th gear synchronizer condition checked (NV3500 common wear)
- 5th gear shift fork condition assessed (5th gear pop-out service item)
- Shifter mechanism function verified
- Bell housing condition inspected
- Case inspected for cracks (aluminum case)
- Output shaft condition checked
- Output shaft seal condition assessed
- Input shaft condition verified
- Tail housing inspected (2WD vs 4×4 specific)
- Miles from donor vehicle documented where available
- All 5 gears + reverse tested on every S10 manual transmission
- Variant correctly identified (NV3500 vs HM290 vs other)
- 2WD/4×4 configuration matched to application
- Engine bell housing pattern matched (2.2 I4, 4.3 Vortec, 2.8 V6, 2.5 Iron Duke)
- 3rd / 5th gear synchronizer condition assessed (NV3500 common wear points)
- 5th gear shift fork inspected (pop-out service item)
- Donor vehicle and mileage documented
- Cross-reference assistance for S10, Sonoma, Blazer, Jimmy, Hombre, Tracker applications
- Free freight pallet delivery to all 50 states
- 15 day replacement warranty on internal defects
- Chevy S10 / GMC Sonoma transmission specialist support team
