Description

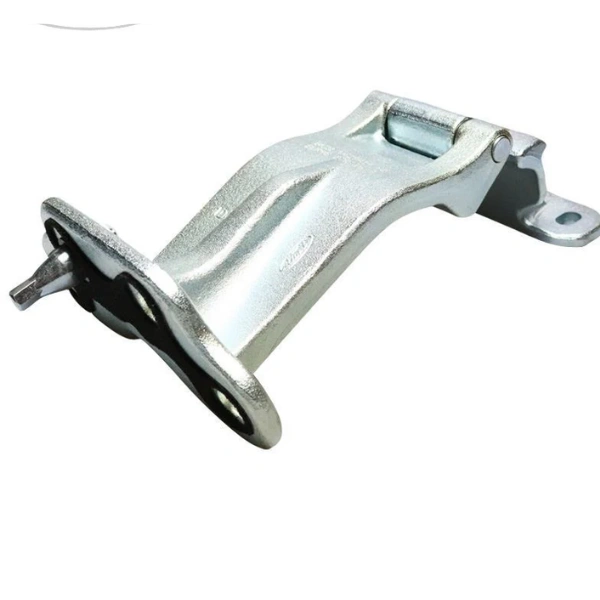

About the Ford LTD Door Hinge
The Ford LTD door hinge is the mechanical pivot mechanism allowing the door to swing open/close. IMPORTANT: ‘Ford LTD’ spans MULTIPLE PLATFORMS across decades, customer must specify specific LTD era for correct hinge.
LTD multi-era heritage: (1) Original LTD full-size 1965-1978 (Galaxie variant 1965-1968, standalone 1968-1978 with body-on-frame construction). (2) LTD II 1977-1979 (brief mid-size Torino-derived Batch 57 vaz525 reference – DIFFERENT hinges). (3) LTD mid-size 1979-1986 (Fox-body platform – DIFFERENT hinges). (4) LTD Crown Victoria 1980-1991 (full-size continuation – OFTEN SHARES hinges with original LTD full-size). (5) Crown Victoria 1992-2011 (standalone famous police car for 20+ years – DIFFERENT hinges modern platform). ‘LTD’ originally meant ‘Luxury Trim Decor’ in Ford’s marketing.
Original LTD/LTD Crown Victoria share body-on-frame architecture and similar hinge dimensions, often interchanging. Engines: 302 V8 Windsor (5.0L famous Ford small block), 351 V8 (Windsor/Cleveland), 400 V8 Modified (6.6L), 460 V8 Big Block (7.5L famous Ford big block heavy-duty). LTD Crown Victoria standard 5.0L (302) V8. C-4/C-6/AOD transmissions. RWD only.
Body styles: 2-door hardtop coupe (sport), 4-door sedan (most common), station wagon (Country Squire with iconic woodgrain side panels). Country Squire was iconic American family wagon 1970s/1980s. Crown Victoria 1992-2011 became famous police interceptor standard for 20+ years, last body-on-frame Ford sedan.
Door hinge function: pivot mechanism with heavy forged/stamped steel body, hardened steel pin, bronze or plastic bushings (primary wear item), 3-4 mounting holes per half, some include door check mechanism. Upper hinge carries door weight in open position; lower hinge often includes door check function.
Common failure modes: WORN BUSHINGS (most common – causes door sag when open and misalignment), broken pin (safety hazard if both fail), bent hinge from impact, rust/corrosion (salt-belt areas), stripped mounting bolts, broken door check mechanism. Inspection: door sags when open, won’t close properly, latch alignment off, wobbles, squeaking.
Replacement: moderate DIY ~1-3 hours per hinge. Support door, disconnect wiring, remove door check, remove mounting bolts (3-4 per half), install new hinge, align door, test, lubricate. Vintage Ford restoration market active: Year One Restoration, NPD National Parts Depot Ford Specialty, OPG, Auto Body Specialties for reproduction parts.
Ford LTD Multi-Era Heritage
Original LTD 1965-1968: Galaxie luxury variant
LTD Standalone Full-Size 1968-1978: Body-on-frame heritage
LTD II 1977-1979: Brief mid-size (DIFFERENT hinges)
LTD Mid-Size 1979-1986: Post-downsizing (DIFFERENT)
LTD Crown Victoria 1980-1991: Full-size continuation (often shares)
Crown Victoria 1992-2011: Famous police car (DIFFERENT)
Heritage: ‘Luxury Trim Decor’ Ford marketing
Door Hinge Function
Function: Pivot mechanism for door swing
Construction: Heavy steel body, hardened pin, bushings
Wear Item: Bushings (bronze or plastic)
Position: Upper or lower per door
Weight Support: 50-100+ lbs door with hardware
Common Failure: Worn bushings causing door sag
- Ford LTD Coverage (Customer MUST Specify Era):
| Ford LTD Full-Size 1965-1968 (Galaxie Variant) | Original LTD era |
| Ford LTD Standalone Full-Size 1968-1978 | Premier full-size luxury |
| Ford LTD Crown Victoria 1980-1991 | Full-size continuation (often shares) |
| Different Hinges: | |
| Ford LTD II 1977-1979 (Mid-Size) | DIFFERENT (Batch 57 vaz525) |
| Ford LTD Mid-Size 1979-1986 | DIFFERENT (Fox-body) |
| Ford Crown Victoria 1992-2011 | DIFFERENT (modern platform) |
| Position Specific: | |
| Front Door Upper Hinge | Top of front door |
| Front Door Lower Hinge | Bottom (often door check) |
| Rear Door Upper Hinge (Sedan/Wagon) | Top of rear door |
| Rear Door Lower Hinge (Sedan/Wagon) | Bottom of rear door |
| Door Side: | |
| Driver (Left) or Passenger (Right) | Mirror configuration |
| Body Style: | |
| 2-Door Hardtop Coupe | Front door only |
| 4-Door Sedan | Front and rear doors |
| Station Wagon (Country Squire) | Front and rear doors plus liftgate |
| Sister Vehicles: | |
| Mercury Marquis/Grand Marquis | Some hinges interchange similar eras |
| Ford Galaxie 500 1968-1972 | Some compatibility within years |
Call (240) 301-0095. CRITICAL Questions: (1) LTD ERA – full-size 1965-1978, LTD Crown Victoria 1980-1991, LTD II 1977-1979 mid-size, LTD mid-size 1979-1986, or Crown Victoria 1992-2011 (DIFFERENT hinges). (2) Door position (front or rear). (3) Hinge position (upper or lower). (4) Driver or passenger side. (5) Body style (sedan/coupe/wagon).
Pivot pin solid No corrosion or damage
Bushings present Bronze or plastic intact
Hinge body not bent Straight without damage
Mounting holes intact Not stripped
Door check functional (if equipped)
No weld cracks
Smooth pivot operation
Era/position verified
Donor vehicle disclosed
Cleaned of old grease
For Ford LTD door hinge multi-era expertise
Multi-era LTD heritage knowledge (1965-1991)
LTD Full-Size 1968-1978 standalone era
LTD Crown Victoria 1980-1991 continuation context
Cross-era compatibility knowledge (full-size hinges often share)
- Different platform identification (LTD II, LTD mid-size, Crown Victoria modern)
