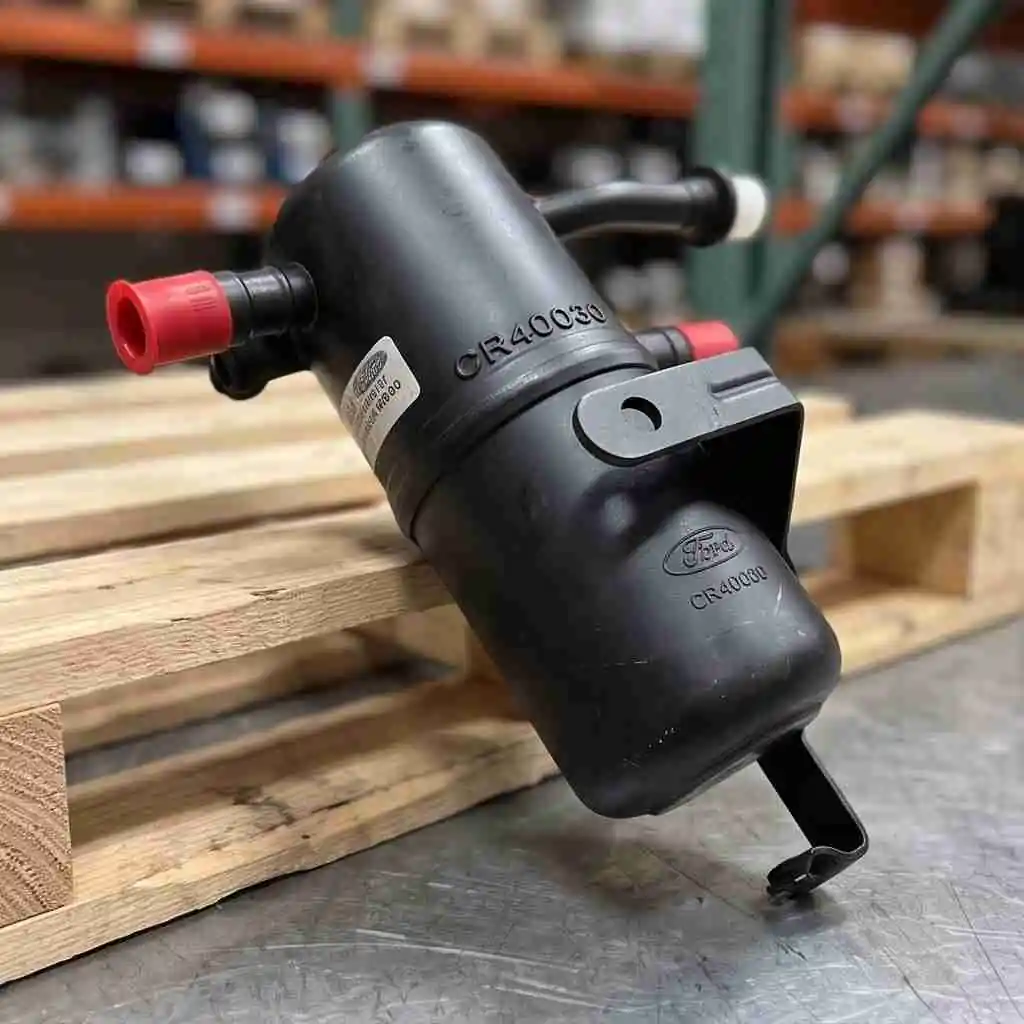

The Ford Transit 250 receiver drier is the A/C component that keeps the refrigerant clean and dry. Its desiccant absorbs moisture, and its filter catches debris, which protects the compressor and the rest of the system and keeps cooling steady. It sits in the high side of the A/C circuit near the condenser and is rated to handle high refrigerant pressures.
A receiver drier should be replaced any time the A/C system is opened, recharged, or has been sitting with a leak, because its desiccant is consumed once it has absorbed moisture. Replacing it during service protects the compressor and restores strong, reliable cooling. Confirm your year and refrigerant type so the correct drier is fitted new.
| Item | Details |
|---|---|
| Removes moisture | Desiccant pulls water out of the refrigerant to prevent corrosion and icing. |
| Filters debris | Catches contaminants that would otherwise reach the compressor. |
| Steadies flow | Helps maintain proper refrigerant condition for consistent cooling. |
| Item | Details |
|---|---|
| INCLUDED | The receiver drier unit as pictured for the year you confirm. |
| NOT INCLUDED | O-rings and seals unless included, refrigerant, A/C oil, and evacuation and recharge service. |
| Tools You Need | A/C service tools, a vacuum pump to evacuate the system, fresh O-rings, A/C oil, and a recharge. Have an A/C shop evacuate and recharge. |
This Ford Transit 250 receiver drier is offered for the following:
| Vehicle | Compatibility |
|---|---|
| Ford Transit 250 | A/C receiver drier, confirm year |
| R-134a or R-1234yf | Confirm refrigerant at order |
The North American Transit 250 began with the 2015 model year, and the correct drier and desiccant depend on the refrigerant your van uses. Confirm your year and refrigerant at order so the right unit is fitted.
Not sure which drier you need? Call (240) 301-0095 with your year and refrigerant type, or your VIN. Our team confirms the correct receiver drier before your order ships.
Quality control for this receiver drier includes:
A receiver drier works only if it goes in dry, so this part is best supplied new or sealed. Keep the caps on until you are ready to install, and evacuate and recharge the system properly after fitting.
| Application | Ford Transit 250 A/C system, by year |
|---|---|
| Part Type | Receiver drier (receiver dryer) |
| Filter Media | Desiccant filter |
| Pressure Rating | Up to 400 psi |
| Refrigerant | R-134a or R-1234yf, confirm by year |
| Approx Weight | About 1.2 lbs |
| Location | A/C high side, near the condenser |
| Service Life | Replace every 2 to 3 years or with each recharge |
| Replace When | Any time the A/C system is opened |
| Best Practice | Fit new or sealed, keep caps on until install |
| After Install | Evacuate and recharge the system properly |
| Function | Keeps refrigerant clean and dry |
| Shipping | Free to all 50 states, fast transit, no core charge |
| Warranty | 15 day replacement warranty from delivery |
| Condition | Best fitted new or sealed, confirm at order |
| Sku | vaz480 |
Contact (240) 301-0095 within 15 days of delivery.
