Description
About This Transmission

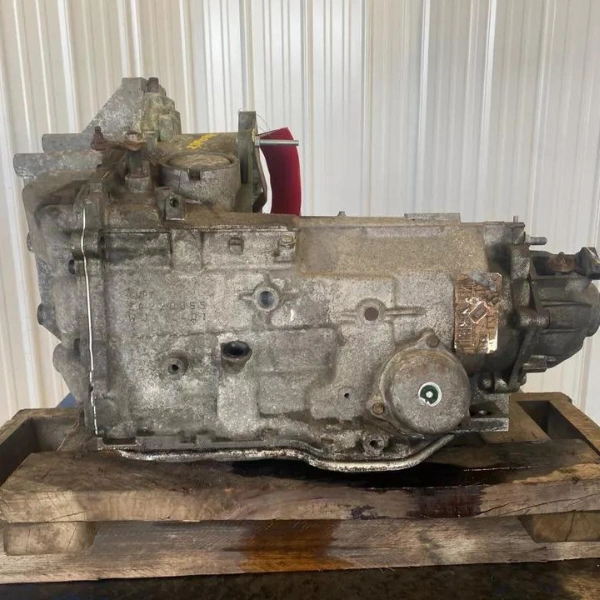

The 4T65-E (Hydra-Matic 4T65E) is GM 4 speed automatic transaxle for transverse FWD applications, manufactured at the Warren Transmission plant in Warren, Michigan from 1997 through 2011. It replaced the 4T60-E with a larger 258 mm torque converter, redesigned valve body, and improved durability. The 4T65E was the dominant FWD automatic in GM cars and minivans from the late 1990s through the late 2000s, used behind the 3.1L, 3.4L, 3.5L, 3.6L V6, the 3.8L Series II and Series III V6 (both naturally aspirated and supercharged), the 4.0L V8, and the 5.3L LS4 V8.
The 4T65E architecture uses a 4 speed planetary gear set with electronic shift control via two shift solenoids, electronic line pressure control, and an electronically controlled torque converter clutch (TCC). Gear ratios are 2.92:1 (1st), 1.57:1 (2nd), 1.00:1 (3rd direct), 0.70:1 (4th overdrive), and 2.38:1 (reverse). The case is cast aluminum, the bell housing uses the standard GM FWD bolt pattern, and the input/output shaft spline counts are 29 and 34 respectively. Torque rating is up to 280 lb-ft GVWR with the standard variant, and up to 380 lb-ft on the HD MN7 variant used behind the supercharged 3800.
The HD variant (RPO code MN7) is used behind the L67 and L32 supercharged 3800 V6 in the Bonneville SSEi, Pontiac Grand Prix GTP, Buick Regal GS, Park Avenue Ultra, Riviera Supercharged, Monte Carlo SS Supercharged, Chevrolet Impala SS, and LaCrosse Super. The HD variant has stronger internals (hardened sun shell, improved bearings, ratcheting sprags from 2003 onward), a different torque converter, and most often the 3.29 final drive with the 37/33 sprocket combination that creates an effective 2.93 overall ratio. Standard 4T65E units installed behind a supercharged 3800 will fail within 50,000 miles or less.
A documented used OEM 4T65E with verified standard vs HD MN7 variant, final drive ratio, donor vehicle, and engine pairing is the right replacement for any GM W-body, U-body, H-body, or G-body FWD vehicle from 1997 to 2011. We document the variant, final drive ratio, sprocket ratio, donor vehicle, engine pairing, and 2003+ valve body update status on every order before shipping.
Signs You Need a Replacement Transmission
- Slipping in 1st or 2nd gear, indicating clutch pack wear
- Hard or delayed engagement when shifting into drive or reverse
- No 3rd gear, often a 1-2 / 3-4 shift solenoid failure
- No 4th gear (overdrive), often a 2-4 band issue or 3rd gear sprag failure
- Burnt fluid (dark, smells acrid)
- Limp behavior, transmission stuck in 3rd gear
- Pump whine on takeoff, common on neglected high mileage units
- Cracked case, rare on aluminum but possible from impact
- TCC slip codes from worn torque converter clutch lining
Known Things to Know Before You Buy
- Standard vs HD MN7 distinction is critical: The HD variant has stronger internals to handle the supercharged 3800 (L67/L32) torque output. Installing a standard 4T65E behind a supercharged 3800 will result in early failure. We confirm the variant on every order.
- Pre-2000 vs post-2000 valve body: All 4T65E units received an upgraded valve body starting in mid-2000. Pre-2000 valve bodies are known to have shift quality issues. Post-2000 units are noticeably more reliable.
- 2003 update: Starting in 2003, the 4T65E received a hardened 4th gear shaft and ratcheting sprags for input and 3rd gear. These updates significantly improve durability. We document year on every unit.
- Final drive ratios: 2.86, 3.05, and 3.29 are the available final drive ratios. The 3.29 is the standard ratio on the HD MN7 variant for the supercharged 3800.
- Sprocket ratio combinations: 33/37 (0.892:1, underdrive), 35/35 (1.000:1, direct), 37/33 (1.121:1, overdrive). The supercharged 3800 vehicles typically use the 37/33 sprocket with the 3.29 final drive, which creates an effective 2.93 overall ratio.
- TCC (torque converter clutch) is a common failure point: Worn TCC lining causes slip codes and reduced fuel economy. PCM converter clutch control strategy changed in mid-1990s; match the torque converter to the PCM strategy.
- Bell housing pattern: Standard GM FWD bolt pattern. Compatible with 3.1, 3.4, 3.5, 3.6, 3.8 (Series II and Series III, both NA and supercharged), 4.0L V8, and 5.3L LS4 V8.
- GVWR limit: 6,500 lbs. The 4T65E is not suitable for heavy towing applications.
4T65E Variants and Configurations
Verified configurations:
| Variant | Years | Engine Pairing | Final Drive | Notes |
|---|---|---|---|---|
| Standard 4T65-E | 1997 to 2011 | 3.1, 3.4, 3.5 V6 NA | 2.86 or 3.05 | Most common variant. Behind low to mid-output V6. |
| Standard 4T65-E | 1997 to 2011 | 3.8L Series II/III V6 NA | 3.05 | Behind naturally aspirated 3800 (Bonneville SE, Grand Prix SE, Park Avenue base). |
| 4T65-E-HD (MN7) | 1997 to 2011 | L67 supercharged 3800 | 3.29 | Heavy duty for supercharged 3800. Bonneville SSEi, Grand Prix GTP, Regal GS, Park Avenue Ultra. |
| 4T65-E-HD (MN7) | 2004 to 2008 | L32 supercharged 3800 | 3.29 | Updated supercharged 3800. Monte Carlo SS Supercharged, Grand Prix GTP later years. |
| 4T65-E-HD (MN7) | 2005 to 2009 | LS4 5.3L V8 | 3.29 | V8 application. Chevy Impala SS, Monte Carlo SS V8, Pontiac Grand Prix GXP, Buick LaCrosse Super. |
| Standard 4T65-E | 2005 to 2011 | 3.6L LY7 V6 | 3.05 or 3.29 | Behind 3.6L direct injection V6. LaCrosse, Aurora, etc. |
| Standard 4T65-E | 2001 to 2009 | 3.5L LX9 V6 (60 deg) | 2.86 or 3.05 | Minivan and Aztek/Rendezvous applications. |
| The standard vs HD MN7 distinction is the most important factor in 4T65E sourcing. Confirm your engine before ordering. Call (240) 301-0095 to discuss specific configuration matching. |
|---|
What Is Included, What Is Not Included
| INCLUDED | Complete transaxle case (with integrated bell housing), gear sets, valve body, torque converter, internal harness, output shaft, internal differential, axle seals. |
|---|---|
| NOT INCLUDED | Flexplate (engine specific), transmission cooler lines, fluid, axles (CV shafts), shift cable, TCM (transmission control module if separate from PCM), dipstick and tube. |
| Core Note | No core charge. You are not required to return your old transmission. |
Vehicle Compatibility, Direct Fit
Direct factory applications:
| Chevrolet Impala (W-body) | 2000 to 2011 (incl. SS V8 LS4 with HD MN7) |
|---|---|
| Chevrolet Monte Carlo | 2000 to 2007 (incl. SS Supercharged with HD MN7) |
| Chevrolet Lumina | 1997 to 2001 |
| Chevrolet Venture (minivan) | 1997 to 2005 |
| Chevrolet Uplander (minivan) | 2005 to 2009 |
| Pontiac Grand Prix (W-body) | 1997 to 2008 (incl. GTP and GXP V8 with HD MN7) |
| Pontiac Bonneville (H-body) | 1997 to 2005 (incl. SSEi with HD MN7) |
| Pontiac Montana (minivan) | 1997 to 2009 |
| Pontiac Aztek | 2001 to 2005 |
| Pontiac Grand Am | 1999 to 2005 |
| Buick Regal (W-body) | 1997 to 2004 (incl. GS Supercharged with HD MN7) |
| Buick Century (W-body) | 1997 to 2005 |
| Buick LaCrosse | 2005 to 2009 (incl. Super with LS4 V8 HD MN7) |
| Buick Park Avenue (G-body) | 1997 to 2005 (incl. Ultra Supercharged with HD MN7) |
| Buick Riviera (G-body) | 1997 to 1999 (Supercharged with HD MN7) |
| Buick Rendezvous | 2002 to 2007 |
| Buick Allure (Canada) | 2005 to 2009 |
| Oldsmobile Aurora | 2001 to 2003 |
| Oldsmobile Intrigue | 1998 to 2002 |
| Oldsmobile Silhouette (minivan) | 1997 to 2004 |
Engine compatibility (factory pairings): GM 3.1L LG6 V6, GM 3.4L LA1 V6, GM 3.5L LX9 V6, GM 3.6L LY7 V6 (high feature with VVT), GM 3.8L L36 V6 (Series II NA), GM 3.8L L26 V6 (Series III NA), GM 3.8L L67 V6 (Series II Supercharged, requires HD MN7), GM 3.8L L32 V6 (Series III Supercharged, requires HD MN7), GM 4.0L Aurora V8 (Aurora applications), GM 5.3L LS4 V8 (Impala SS, Monte Carlo SS, Grand Prix GXP, requires HD MN7). NOT compatible with the 2.4 Ecotec inline four (uses smaller 4T40-E or 4T45-E transaxles).
Not sure if this fits? Call (240) 301-0095 with your year, model, and engine. We confirm standard vs HD MN7 variant, final drive ratio, and sprocket combination before every order ships.
Common Names and Search Terms
| 4T65E | Most common technical search |
|---|---|
| 4T65-E | With dash |
| Hydra-Matic 4T65E | Full name |
| GM 4 speed FWD auto | Architecture search |
| Impala transmission | Vehicle search |
| Grand Prix transmission | Vehicle search |
| Bonneville SSEi transmission | Supercharged variant |
| Regal GS transmission | Supercharged variant |
| Park Avenue Ultra transmission | Supercharged variant |
| 4T65E-HD MN7 | HD variant code |
Used OEM vs Rebuilt vs Built 4T65E
A documented used OEM 4T65E with verified standard vs HD MN7 variant, final drive ratio, and donor vehicle is the most cost effective option for GM W-body, H-body, U-body, and G-body FWD replacement. Pricing is roughly half of a rebuilt unit. Our 4T65E units are pressure tested, shift tested, and the variant, final drive, sprocket ratio, and engine pairing are documented.
A professionally rebuilt 4T65E from a specialty shop typically runs $1,200 to $2,400 for standard or $1,800 to $3,200 for HD MN7. Standard rebuild includes new clutches, bands, gaskets, TCC lining, and a re-manufactured torque converter. The 2003+ ratcheting sprag and hardened 4th gear shaft updates are typically incorporated regardless of donor year.
A built 4T65E for high horsepower L67/L32/LS4 V8 applications (often used in modified Grand Prix GXP, Bonneville SSEi, Impala SS) runs $4,000 to $7,000 plus depending on power target. Built variants from Trinity Performance, Triple Edge Performance, and others handle 700 plus lb-ft.
Condition and Inspection Process
- Pressure test on the dyno bench, line pressure recorded across all gears
- Shift test on the dyno bench, all 4 forward gears, reverse, and TCC engagement tested
- Torque converter inspected for shudder material
- Valve body inspected and pressure tested
- Internal bands and clutch packs inspected where accessible
- Standard vs HD MN7 variant confirmed (visual inspection of tag and internals)
- Final drive ratio documented (2.86 / 3.05 / 3.29)
- Sprocket ratio documented (33/37 / 35/35 / 37/33)
- Donor vehicle and engine pairing confirmed
- 2003+ updated internals (ratcheting sprag, hardened 4th gear shaft) confirmed where applicable
Mileage on a 4T65E is documented from the donor vehicle when available. Where mileage cannot be verified, we disclose this clearly before shipping.
Buyer Tips, What to Know Before You Order
- Standard vs HD MN7 first: Confirm whether your engine is supercharged 3800 (L67 or L32) or LS4 V8 – those require the HD MN7. If you have a naturally aspirated V6, the standard 4T65E is correct.
- Final drive ratio matters for highway cruising RPM. 3.29 final drive is standard on HD; 2.86 and 3.05 are common on standard variants. Match your original ratio when possible.
- Plan for fresh fluid (Dexron VI) and filter at install regardless of unit condition.
- TCC lining is a known wear item. Plan for a torque converter rebuild or replacement on any unit with significant mileage.
- For supercharged 3800 owners: Do NOT install a standard 4T65E. The HD MN7 is required. Confirm RPO code MN7 on the build sheet or the transmission tag.
- Pre-2003 units: Plan for the ratcheting sprag and hardened 4th gear shaft upgrades during rebuild. Post-2003 units have these updates from the factory.
- Valve body recalibration kit (TransGo, Sonnax) is recommended for high mileage units regardless of donor year.
Why Buy From Vaz Auto Solutions
- Standard vs HD MN7 variant verified before you pay
- Final drive ratio documented (2.86 / 3.05 / 3.29)
- Sprocket ratio documented (33/37 / 35/35 / 37/33)
- Engine pairing verified (V6 NA, supercharged 3800 L67/L32, or LS4 V8)
- Donor vehicle disclosed (Impala, Grand Prix, Bonneville, Regal, etc.)
- Pressure tested and shift tested on the dyno bench
- 2003+ ratcheting sprag and hardened 4th gear shaft confirmed where applicable
- No core charge, keep your old transmission
- Free freight pallet delivery to all 50 states, no hidden fees
- 15 day replacement warranty on internal defects
- Call (240) 301-0095, talk to someone who actually understands the standard vs HD MN7 distinction and the supercharged 3800 compatibility
Bob Anderson (verified owner) –
This 4T65E transmission saved my Chevy Impala. Smooth shifts and no more slipping. Vaz Auto Solutions had it in stock and shipped fast.
Steve Ramirez (verified owner) –
Solid transmission for my Chevy Malibu. The 4T65E from Vaz Auto Solutions was a perfect fit and solved my transmission woes. Installation took a weekend but was worth it. Good quality part at a fair price.
Marcus T., Cleveland OH –
Bought a 4T65E-HD MN7 from Vaz to replace mine after the original gave up at 168,000 miles. They confirmed HD MN7 variant for my supercharged 3800, came out of a 2004 Bonneville SSEi donor with 3.29 final drive and 37/33 sprocket combination. Pressure tested before shipping, shift tested through all 4 gears and reverse. Bolted right up. The car shifts crisp and the supercharged 3800 has all its torque again. Vaz knew exactly what HD vs standard meant which saved me from buying the wrong unit.
Stephanie B., Tucson AZ –
Sourced a standard 4T65E for my Impala after the 1-2 shift solenoid finally let go. Vaz confirmed standard variant (not HD), 3.05 final drive, came out of a 2008 Monte Carlo donor. Half star off because shipping took 12 business days but the transmission is solid. They flagged that I should plan for new fluid and filter at install which I did. Three months in, shifting clean.
